16
use and maintenance RSV mille - RSV mille R
!22!.'%-%.4/&4(%).3425-%.43#/.42/,3
+%9

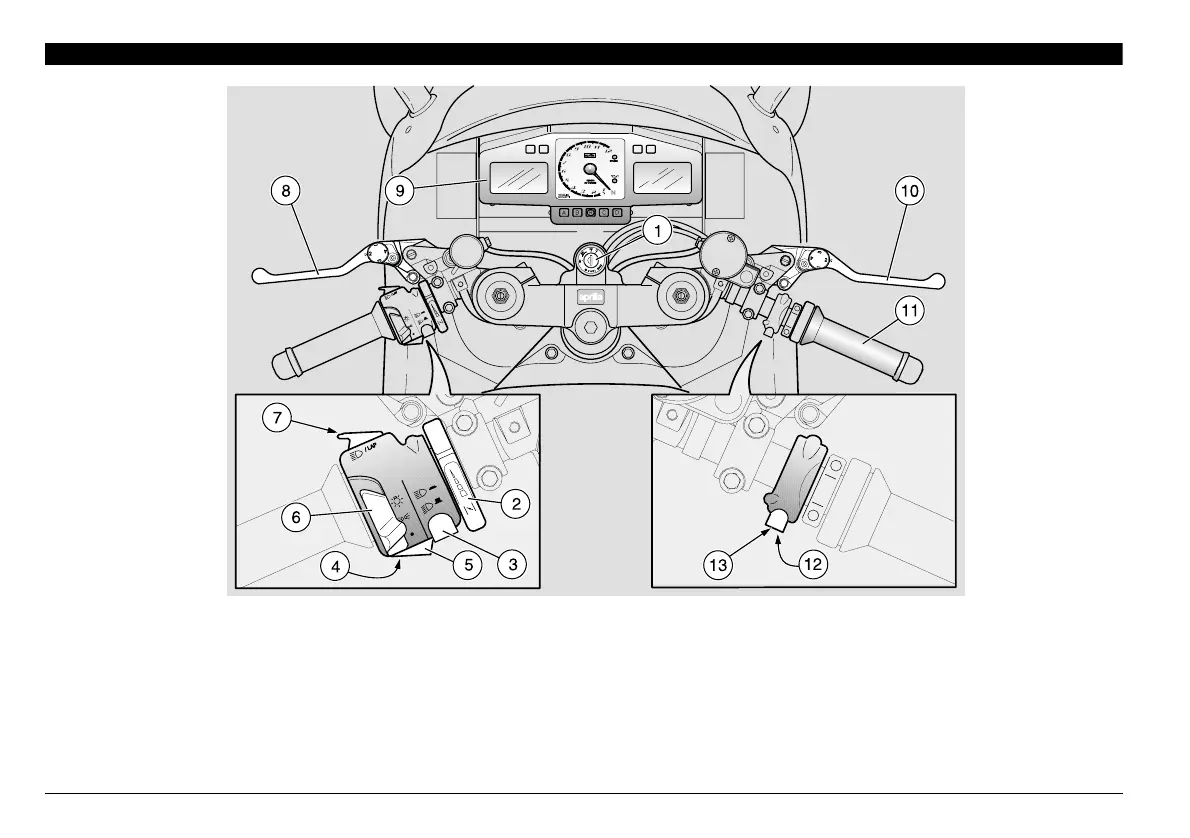

1) Ignition switch/steering lock (2 - 1 - &)
2) Cold start lever (0)
3) Dimmer switch (8 - 7)
4) Direction indicator switch (6)
5) Horn push button (*)
6) Light switch (( - ' -
•
) (not provided for e)
7) High beam signaller push button (7)/LAP push button (multi-
function)
8) Clutch lever
9) Instruments and indicators
10) Front brake lever
11) Throttle grip
12) Start push button (+)
13) Engine stop switch (#2 - !1)
RSVmille-R-UK.book Page 16 Friday, November 17, 2000 3:13 PM
