FUEL SUPPLY SYSTEM
RSV mille
4 -11

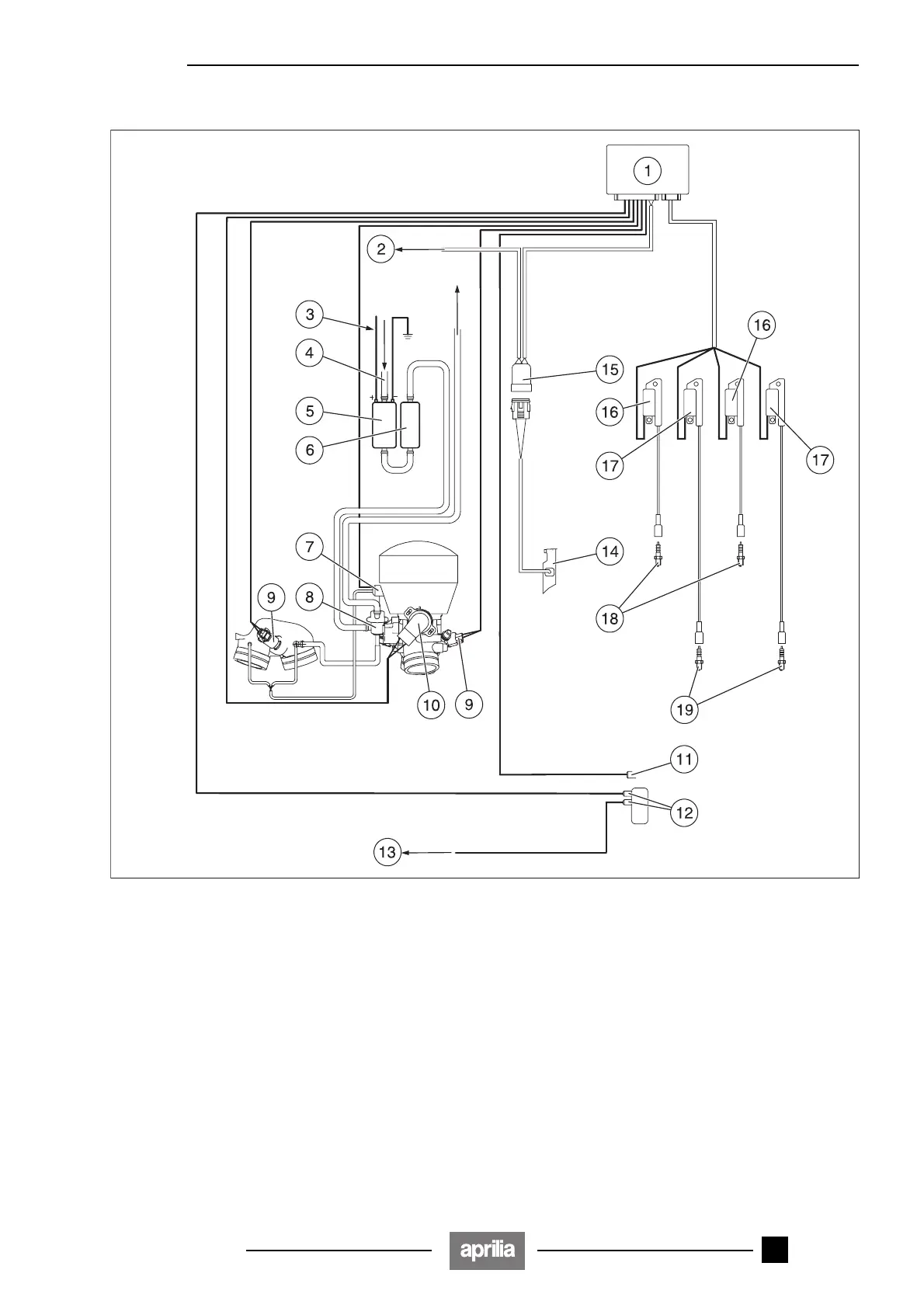

4.7.3 INJECTION SYSTEM DIAGRAM
Key
1) Electronic unit
2) To voltage regulator
3) Supply voltage
4) Fuel suction from tank
5) Fuel pump
6) Fuel filter
7) Intake pressure sensor
8) Fuel pressure regulator
9) Injectors
10) Throttle valve potentiometer
11) Camshaft position sensor
12) Coolant temperature thermistors.
13) To multifunction display, right-hand side
14) Driving shaft position sensor and generator
15) Driving shaft position sensor and generator
connector
16) HV ignition coil cylinder “1” (front)
17) HV ignition coil cylinder “2” (rear)
18) Spark plug cylinder “1” (front)
19) Spark plug cylinder “2” (rear)
Release 00/2002-10
- 00
