APsmart RSD-D - Wiring and Core Usage Guidelines

User Manual
10

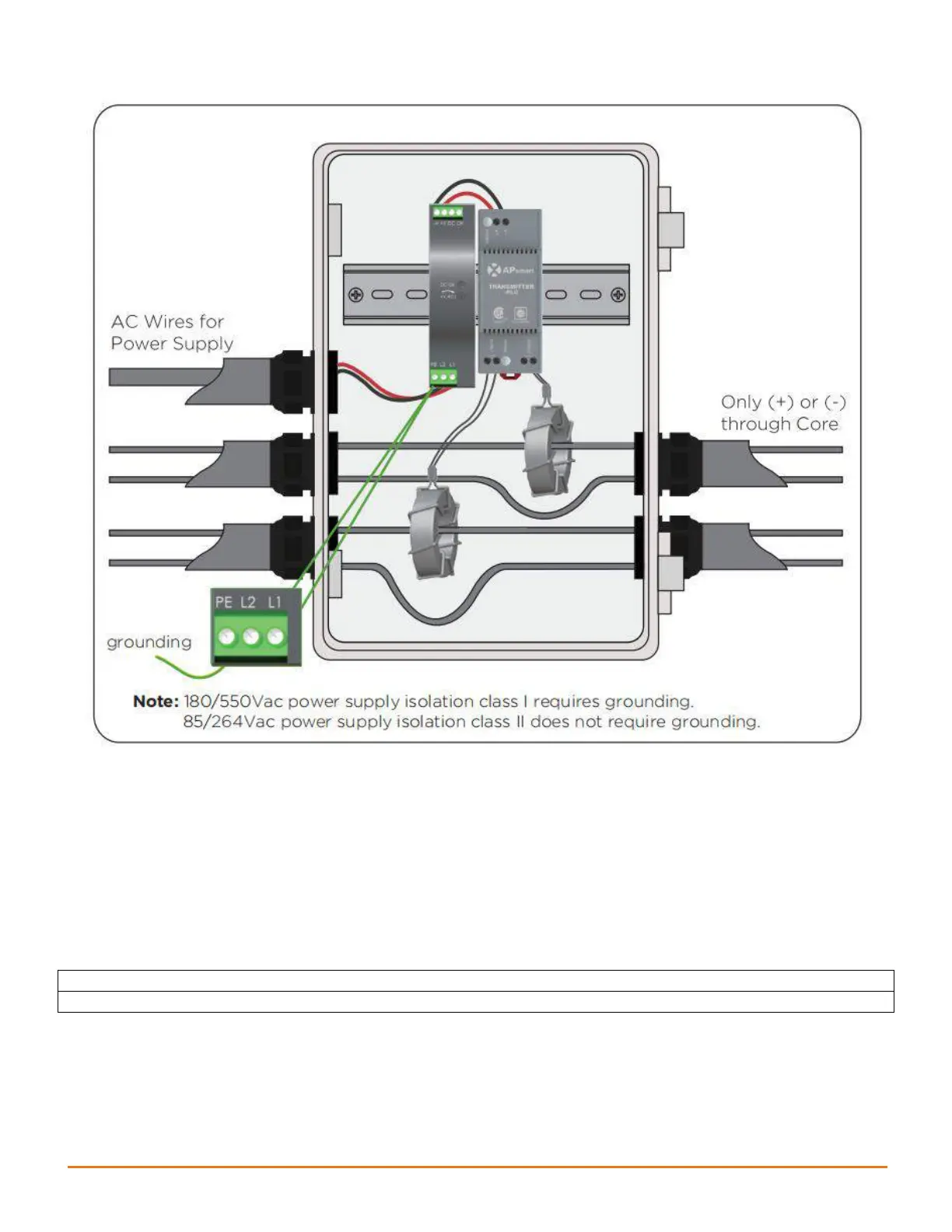

Note: Install the RSD-D before powering on the Transmitter-PLC.
• Pass either positive or negative cables through cores (either both positive cables or both negative cables.
Do not use one positive and one negative cable.)
• Connect wires to AC side of power supply
Max number Of Strings Per Core :
DC cable Diameter
Φ5.9mm
Φ6.35mm
Φ7mm
Φ8.6mm
Number Of Strings Per Core (without connector)
≤15
≤15
≤14
≤10
Max string length : 30 modules
Max current per core : 150A
Max cable length from inverter(+) to inverter(-) : 1000ft (300m)
