APT 6000 Series User Manual

BACKPANELCONTROLS
3.
10. TERMINAL POWER BLOCK: 208 VAC ± 10% max input voltage or 230 VAC ±
10% (Opt. 01) for input voltage. Output voltage 300 VAC max & 18.4 A max
current. Only available on the 6020 model.
10a. Neutral Input Terminal: Neutral screw terminal.
10b. Ground Input Terminal: Earth ground (chassis) connection for line cord.
10c. Line Input Terminal: Line output screw terminal.
11. OUTPUT TERMINAL POWER BLOCK: 208 VAC ± 10% max input voltage or 230 VAC
± 10% (Opt. 01) for input voltage. Output voltage 300 VAC max & 36 A max current.
Only available on the 6040 model.
11a. Line Output Terminal: Line output screw terminal.
11b. Ground Output Terminal: Earth ground (chassis) connection for line cord.
11c. Neutral Output Terminal: Neutral screw terminal.
11d. Line Input Terminal: Line input screw terminal for line cord.
11e. Ground Input Terminal: Earth ground (chassis) screw terminal for line cord.
11f. Neutral Input Terminal: Neutral screw terminal for line cord.
Line voltage may be applied at this terminal for balanced input
voltage conditions.
12. INPUT BREAKER: Protection breaker for input current protection set at 40 amps.
Only available on the 6040 model.

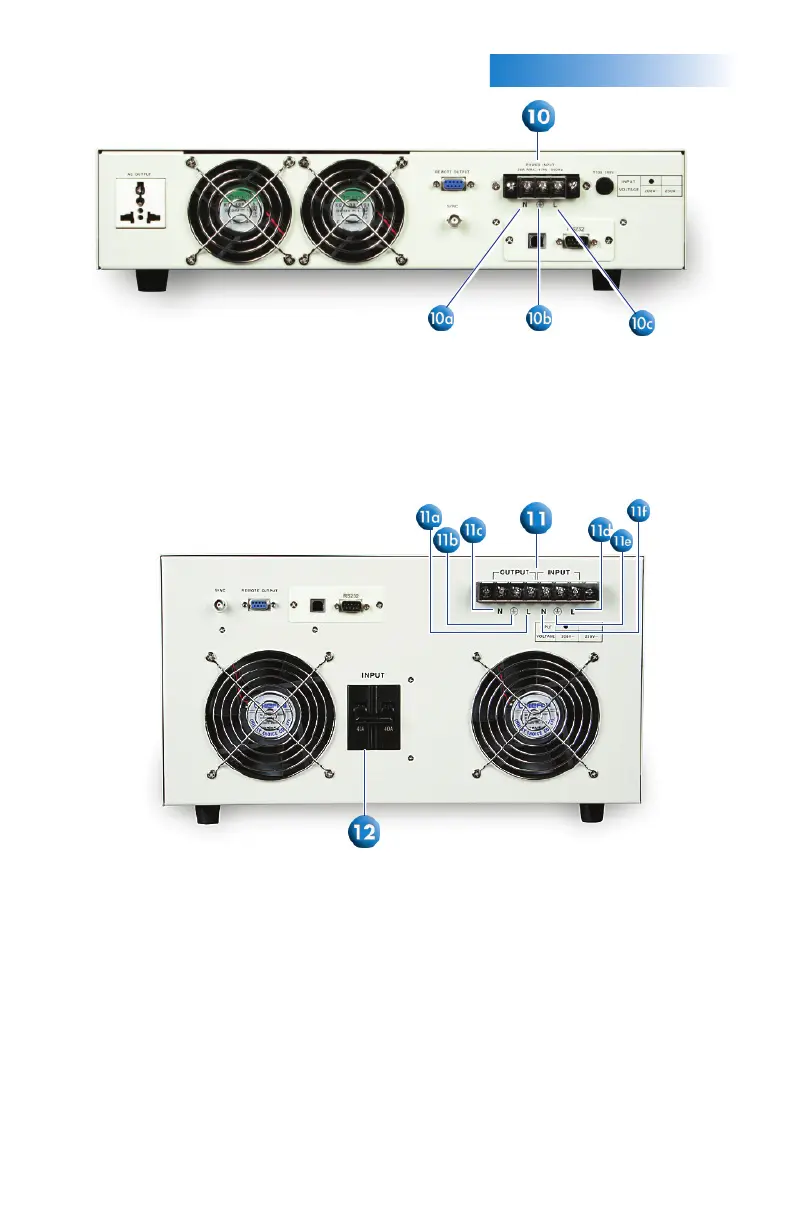

(6020 Back Panel)
(6040 Back Panel)
