BACKPANELCONTROLS
2.
1. THERMAL FANS: Used to cool the instrument.
2. REMOTE OUTPUT CONNECTOR: Provides output to monitor PASS, FAIL, Test-In
Process via relay contact closures.
3. SYNC OUTPUT CONNECTOR: Provides the capability to monitor a 5 VDC output
signal.
4. USB/RS-232 INTERFACE CARD: Interface card used to control, program, and
capture data via a serial interface.
5. FUSE RECEPTACLE: Fuse rating is 20 A at 250 V. To change the fuse, unplug
the power (mains) cord and turn the fuse cap counter clockwise to remove fuse.
The fuse compartment will be exposed. Please replace the fuse with one of the
proper rating.
6. INPUT POWER RECEPTACLE: Standard IEC 320 connector for connection to a
standard NEMA style line power (mains) cord.
7. UNIVERSAL AC OUTPUT SOCKET: 300 VAC max voltage & 20 A max current.
Not available on the 6040 model.
8. INPUT POWER RECEPTACLE: Line voltage input selection is set by the position
of the switch 115/230V.
9. GROUND LUG: Additional ground connector to be used in conjunction with the
power cord ground.

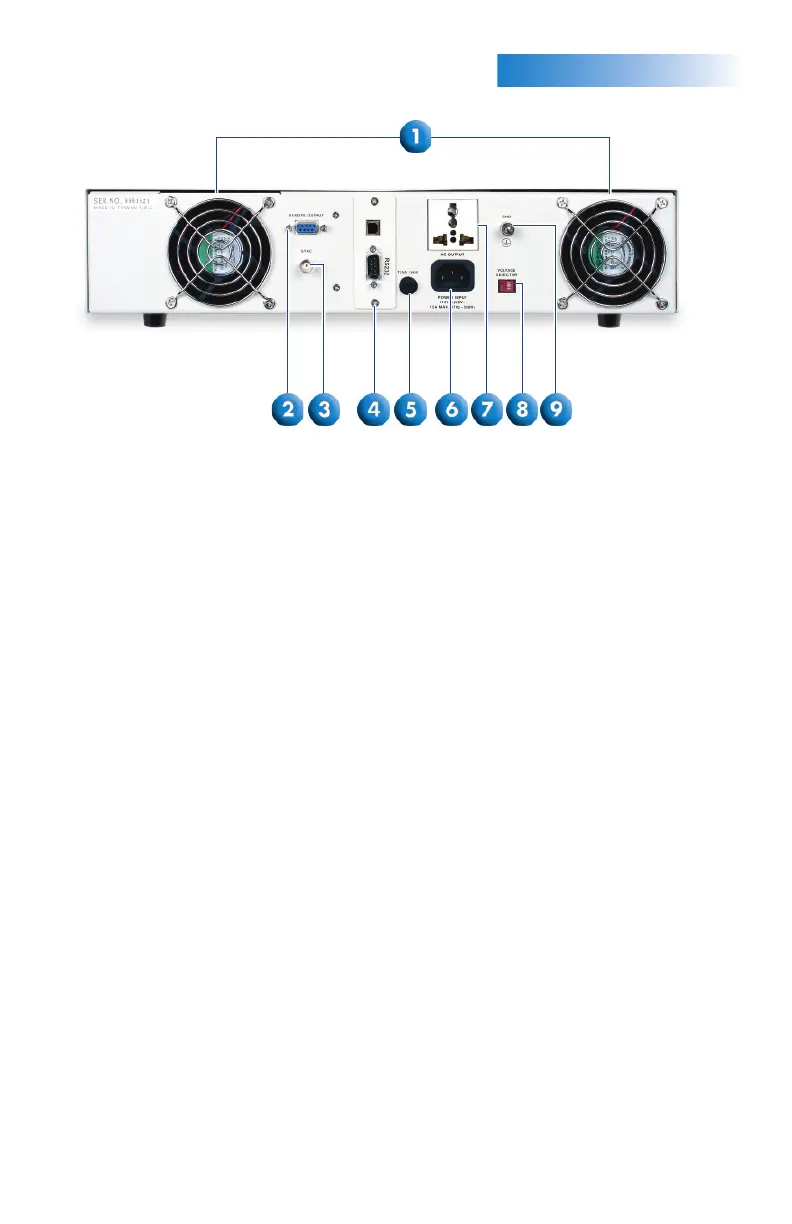

(6005/6010 Back Panel)
