APT LCD 510S User Manual

APT(Tianjin) Develop Co., Ltd.
11
．

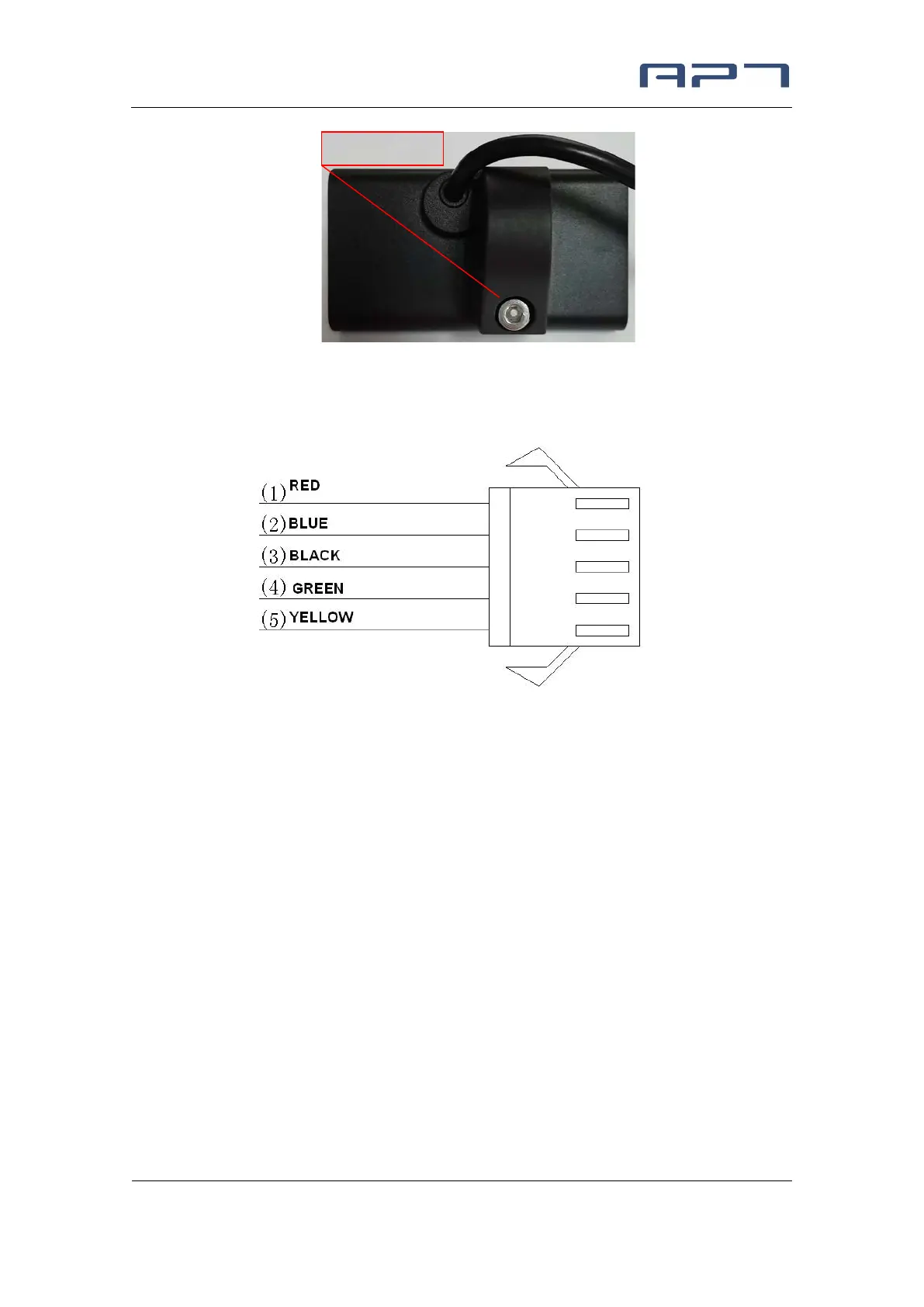

Connector descriptions
1、 Red wire : Anode(24V/36v/48V/52V)
2、 Blue wire : Power cord to the controller
3、 Black wire : GND
4、 Green wire : RxD (controller -> display)
5、 Yellow wire : TxD (display -> controller)
12
．
Certification
CE / IP65 (water proof) / ROHS.
M4*8
1001, Building 5 HuaDing, No.1 HuaKe 3 Road,
Binhai hi-tech Industrial Development Zone, Tianjin, China
8 TEL: 86 22 2634 5859
FAX: 86 22 8371 9955
Email: apt@aptdevelop.com

APT LCD 510S Specifications

General

Brand	APT
Model	LCD 510S
Category	Monitor
Language	English
