aptos MAC DTU - Interface Layout and Functions; DTU Interface Overview; Export Management Function

5

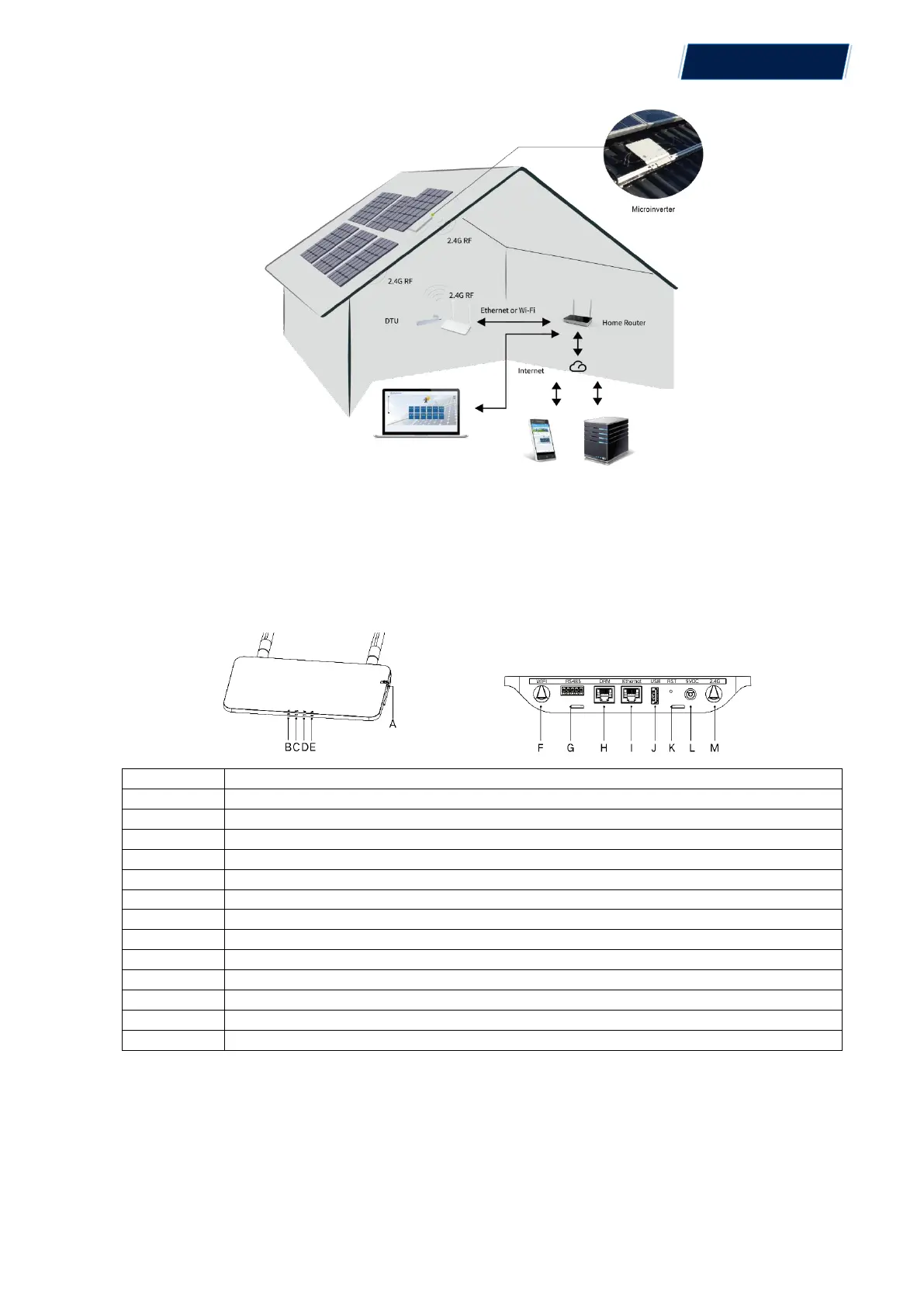

3. Interface Layout
3.1 Interface Layout
Item
Description
A
SD Card Slot
B
DTU Power Indicator
C
DTU Communication Indicator (With Server)
D
DTU Communication Indicator (With MI)
E
DTU Alarm Indicator
F
WiFi Antenna (2.4G)
G
RS485
H
DRM Port (For Australia only)
I
Ethernet Port
J
USB Port
K
Reset Bottom
L
Power Port
M
2.4G Antenna
3.2 Export Management Function (RS485 port)
a. Device Required.
