APV W+10/8 - 2 Sectional Drawing

GB
Form no.: L453147GB– revision 06/2013

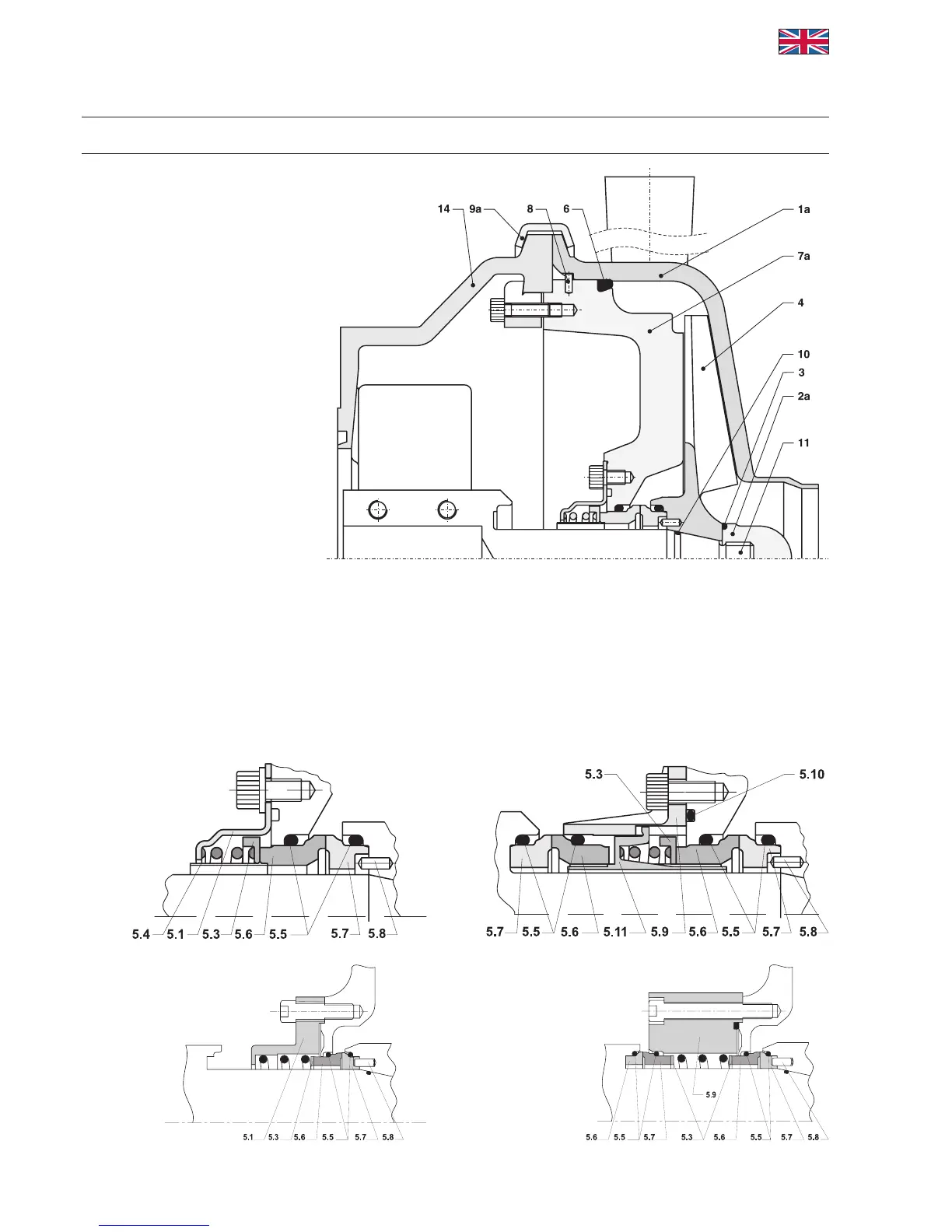

2. Sectional drawing
1a Pump housing
2a Cap nut
3 O-ring
4 Impeller
6 O-ring
7a Backplate
8 Locatingpin
9a Clamp ring
10 O-ring
11 Shaft
14 Extensionframe
5.1 Fasteningkitforsingle
mech.seal
5.3 Pressure ring
5.4 Drain pipe
5.5 O-ring
5.6 Stationarysealface
5.7 Rotarysealface
5.8 Pin
5.9 Fasteningkitfordouble
mech.seal
5.10 O-ring
5.11 Pressure ring
Section1:SinglemechanicalshaftsealforshaftsofØ25andØ35
Section2:DoublemechanicalshaftsealforshaftsofØ25andØ35
Section3:SinglemechanicalshaftsealforshaftsofØ55
Section4:DoublemechanicalshaftsealforshaftsofØ55
Section 1
Section 3
Section 2
Section 4
