Aqua Computer high flow NEXT User Manual

high flow NEXT
Pin assignment: Pin 1 GND (black), optional
Pin 2 GND (black)
Pin 3 D+ (green)
Pin 4 D- (white)
Pin 5 +5 V (red)
The corresponding connector on the motherboard is usually
a 9 pin connector with two independent USB ports. Both
rows of 4/5 pins can be used to connect an USB device.

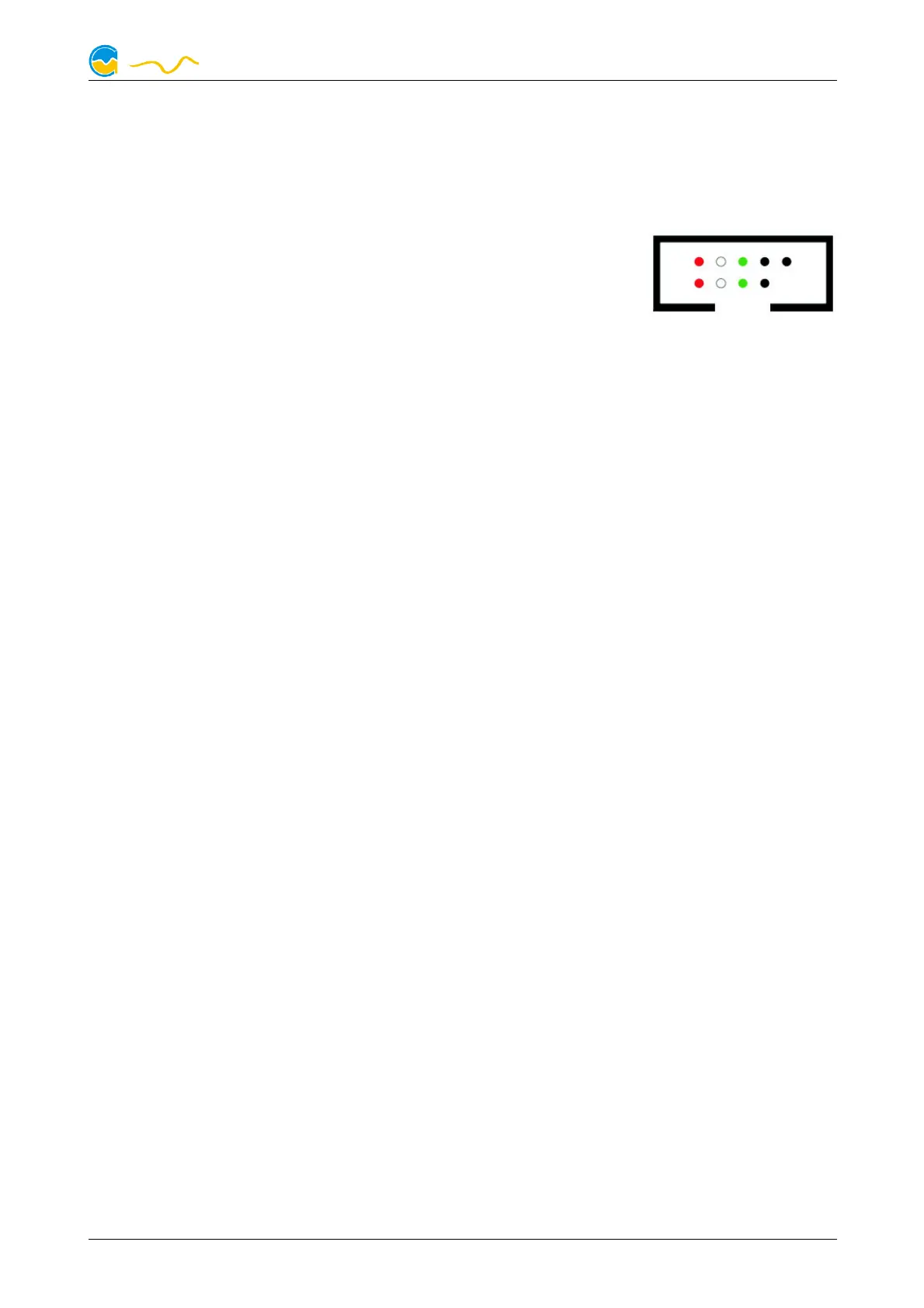

The black wires (GND) are to be connected to the side of
the missing pin, see picture with colored pin assignment.
4.2.
4.2.4.2.
4.2. Connector “aquabus”
Connector “aquabus”Connector “aquabus”
Connector “aquabus”
Connector for communication with other Aqua Computer devices. USB and
aquabus interface can be used at the same time.
Please note: Without USB connection, all RGBpx functions are deactivated!
Pin assignment: Pin 1 GND
Pin 2 aquabus SDA
Pin 3 aquabus SCL
Pin 4 +5 V
Compatible aquabus devices:
● aquaero 6 XT (53146, 53206, 53250, 53251, 53262, 53263)
● aquaero 6 PRO (53145, 53253)
● aquaero 6 LT (53234)
● aquaero 5 XT (53089, 53125, 53249)
● aquaero 5 PRO (53090, 53252)
● aquaero 5 LT (53095)
4.3.
4.3.4.3.
4.3. Connector “temp”
Connector “temp”Connector “temp”
Connector “temp”
Connector for a temperature sensor.
Compatible sensors:
● Temperature sensor inline G1/4 for VISION (53218)
● Temperature sensor inner/outer thread G1/4 for VISION (53219)
● Temperature sensor G1/4 for VISION (53220)
● Temperature sensor 70 cm for VISION (art. 53211)
● Temperature sensor 5 cm for VISION (art. 53227)
4.4.
4.4.4.4.
4.4. Connector “RGBpx”
Connector “RGBpx”Connector “RGBpx”
Connector “RGBpx”
Connector for up to 90 addressable LEDs.
If the RGBpx product to be connected has more than one RGBpx connector, the
connector marked with the word “IN” must be used! Additional RGBpx products
may be connected to the “OUT” connector.
Compatible RGBpx products:
© 2020 Aqua Computer GmbH & Co. KG - 5 -
Gelliehäuser Str. 1, 37130 Gleichen
c
o
m
p
u
t
e
r
a
q
u
a
