5. Electrical connections
Electrical connectionsElectrical connections
Electrical connections

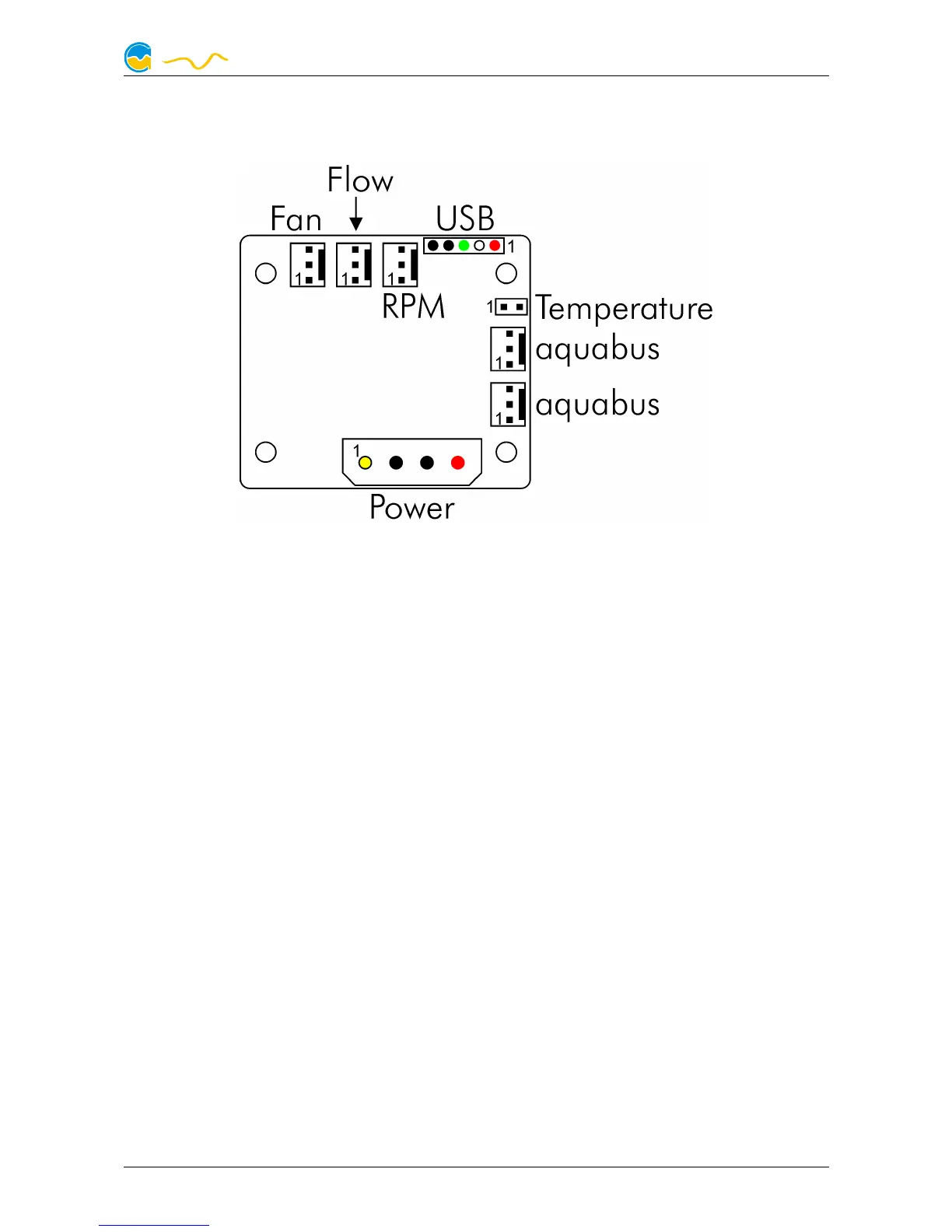

5.1. Connector overview
5.1. Connector overview5.1. Connector overview
5.1. Connector overview
ATTENTION: Completely turn off your power supply or disconnect the mains pow-
er cord from the wall outlet before connecting or disconnecting any cables to/from
the device!
Please refer to the following chapters for details on the individual connectors.
5.2. Power supply
5.2. Power supply5.2. Power supply
5.2. Power supply
Connect a power plug of your PC's power supply unit to this connector. Do not
use excessive force but double check the polarity of the plug if you are having
trouble to connect.
Pin assignment: Pin 1: +12 V
Pin 2: GND
Pin 3: GND
Pin 4: not connected
5.3. Power output (fan or pump connector)
5.3. Power output (fan or pump connector)5.3. Power output (fan or pump connector)
5.3. Power output (fan or pump connector)
Regulated fan/pump output with speed signal processing. Maximum current at 12
V is 2.5 A (30 Watts total power), with optional heat sink (not included in delivery)
3.0 A / 36 Watts. The poweradjust 3 features temperature monitoring to prevent
damage to the poweradjust 3 controller board. If the internal electronics tempera-
ture sensor reading exceeds approximately 80 °C, the power output is set to 100
% power to minimize power dissipation. If the sensor reading rises further to ap-
proximately 100 °C, the power output is set to 0 % power and effectively switched
off. In both cases, the poweradjust 3 controller activates the manual control option
