Trolly (optional)
1
2 3
The trolly is an optional accessory that makes it easy to move the robotic
cleaner and provides a mounting site for the power and control unit.
To assemble the trolly:
1. Attach the wheels to both sides of the trolly base and fasten each
wheel with the screw and install the cover.
2. Assemble the two sections of the handle.
3. Attach the power and control unit housing by clicking the upper tabs
into the holes in the handle.

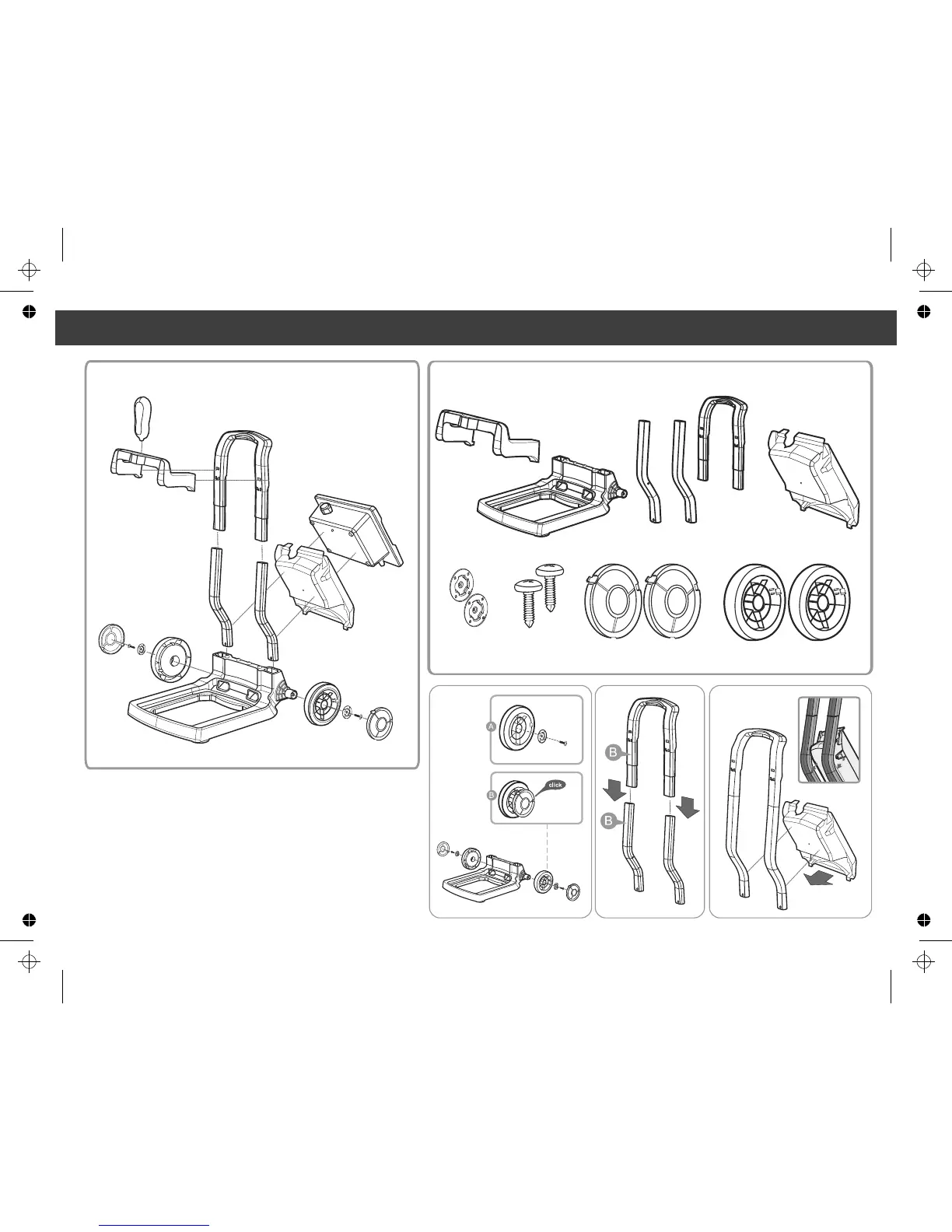

Assembly Diagram Parts
15
