AquaMaster Pro AMP5000 - Brine Valve Housing Assembly

AquaMaster
®
Owner’s Manual 1/21/2021 26
Assembly and Parts, Cont.
Brine Valve Housing Assembly

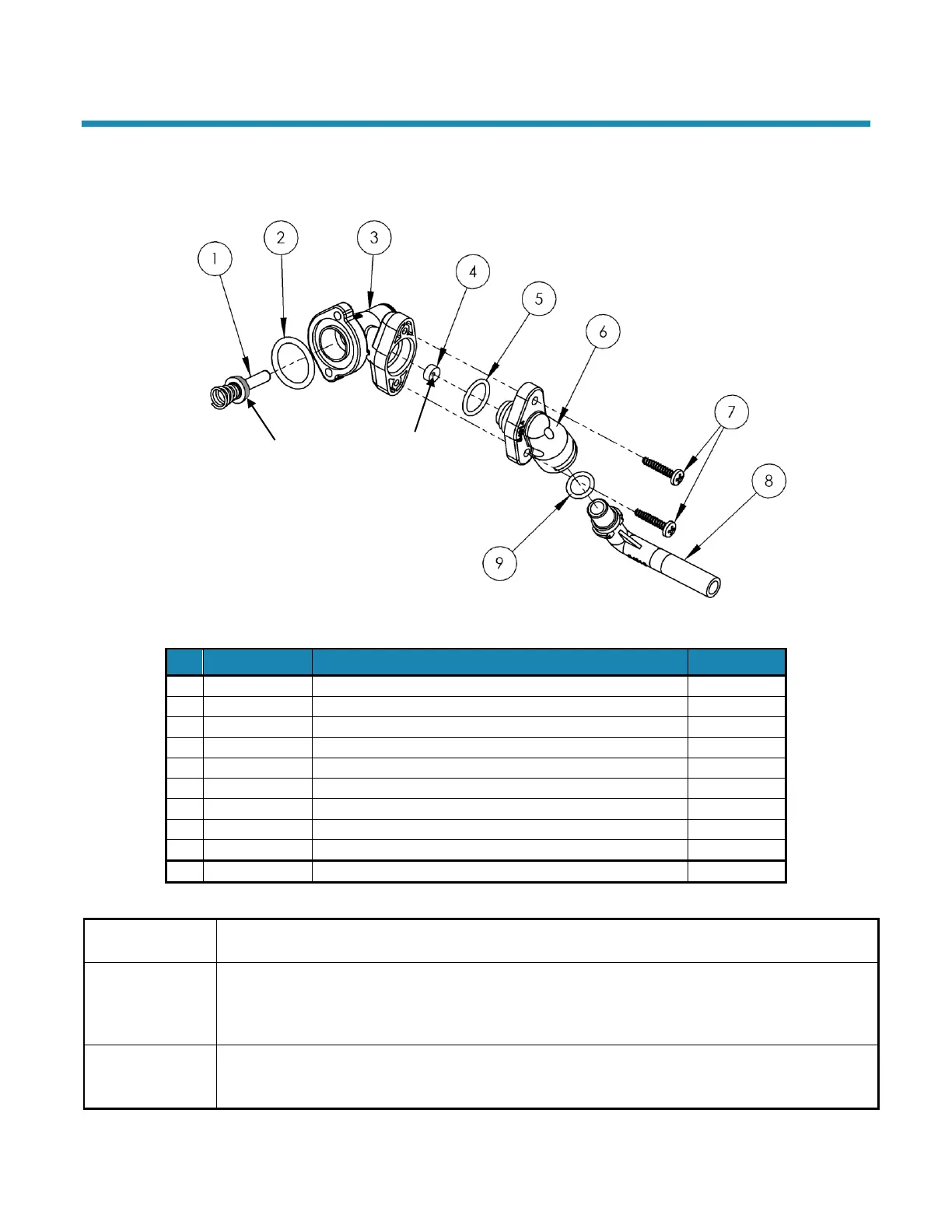

Figure 16: Brine Valve Housing Assembly
Part #
Description
Quantity
1
100237712
Piston Assembly (includes O-Ring & Spring)
1
2
100241867
O-Ring
1
3
100237707
Housing
1
4
100241875
0.5 gpm Flow Control
1
5
100242033
O-Ring
1
6
100241001
Brine Valve Cap
1
7
100238197
Screw, self-tapping
2
8
100241002
Brine Valve Elbow
1
9
100241869
O-Ring
1
100241120
Entire Assembly (all of the above parts)
100237712 Brine
Piston
The Piston should have an O-Ring on the shaft side of the flange and a spring pressed onto a boss on
the other side. The O-Ring should be free of defects such as cuts or debris on the shaft side.
100237707
Housing
Just inside the entrance hole for the Brine Piston (100237712) is a concave seat area that must be free
of defects such as nicks, indentations, or debris. This seat area ensures a leak-free seal for the static
O-Ring on the Brine Piston. If any defects are detected by visual inspection, repair or replace as
needed.
100241875 0.5
gpm Flow
Control
The Flow Button has two distinct and different sides. One is “flat”; the other is “concave.” The button
should be centered in the housing opening with the four locator “ribs” with the concave side facing the
Housing End Cap (100241962).
Static O-Ring
Concave side
