4
Please take the system and all the components out of the box. Inspect
the system and all the connection ttings carefully, make sure nothing is
damaged during shipping. If any part is cracked or broken, please do not
proceed with the installation and contact Aquasure or your distributor for an
exchange or diagnosis.
IMPORTANT: Leave the lamp and quartz sleeve inside the packaging until
ready for installation. Do not touch the glass on the UV quartz sleeve or UV
lamp without the use of plastic gloves.
SYSTEM INSPECTION

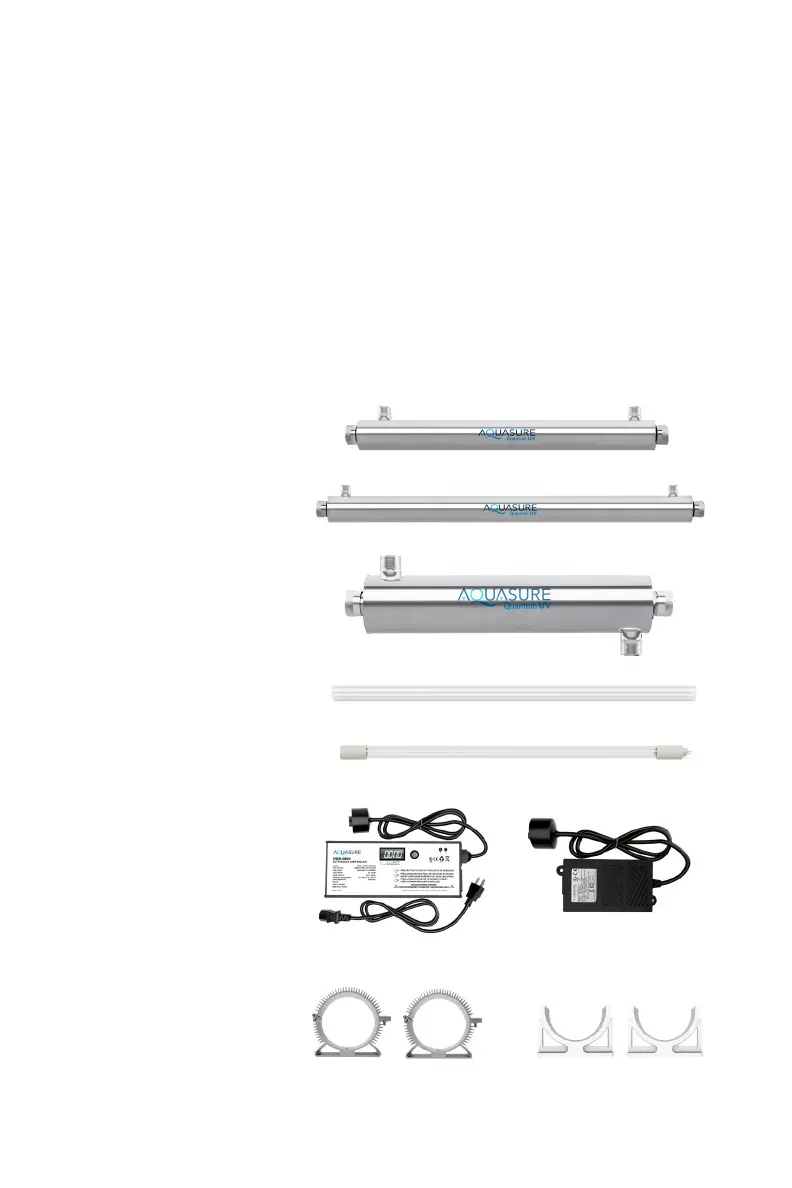

System Components
1. UV Chamber
2. UV Lamp
3. UV Quartz Sleeve
4. Mounting Brackets
5. Ballast
6. Chamber Mounts
7. Install hardware
(not pictured)
UV Chamber - AS-UV8S
UV Chamber - AS-UV12S
UV Chamber - AS-UV18HO
UV Quartz Sleeve
UV Lamp
Ballast for AS-UV18HO
Chamber Mounts
for AS-UV18HO
Ballast for AS-UV8S
and AS-UV12S
Chamber Mounts for
AS-UV8S and AS-UV12S
