SYSTEM INSTALLATION
STEP 1
1. Shut off the main water supply valve. Locate the main water supply valve of
the house and turn off completely by turning the shut-off handle clockwise.
2. Test to see if the water is completely shut off by turning on the closest faucet
in the cold water position. If the cold water cannot be shut off, please contact
your local plumber to x the valve before beginning system installation.
STEP 2: Mounng the UV System
1. Remove the disinfection system components from the shipping carton. For
shipping purposes, the UV lamp and quartz sleeve are packed in separate
packaging tubes inside the main carton to avoid damage during transit.
IMPORTANT: Leave the lamp and quartz sleeve inside the packaging and
set aside for use later in the installation process.
2. Horizontally or vertically position the UV system to the desired mounting
location. Ensure that there is enough clearance for the system and future
maintenance and removal of the UV lamp. Ideally the clearance should
consider the length of the UV lamp and the ballast prong connector.
IMPORTANT: It is recommended that the Quantum UV system be
mounted in a vertical position. This ensures optimal contact time for the
UV wavelength inside the UV chamber to sterilize contaminants.
Quantum UV
IMPORTANT:
Mounting location should allow
adequate space for removing
the UV lamp and quartz sleeve
components for maintenance.

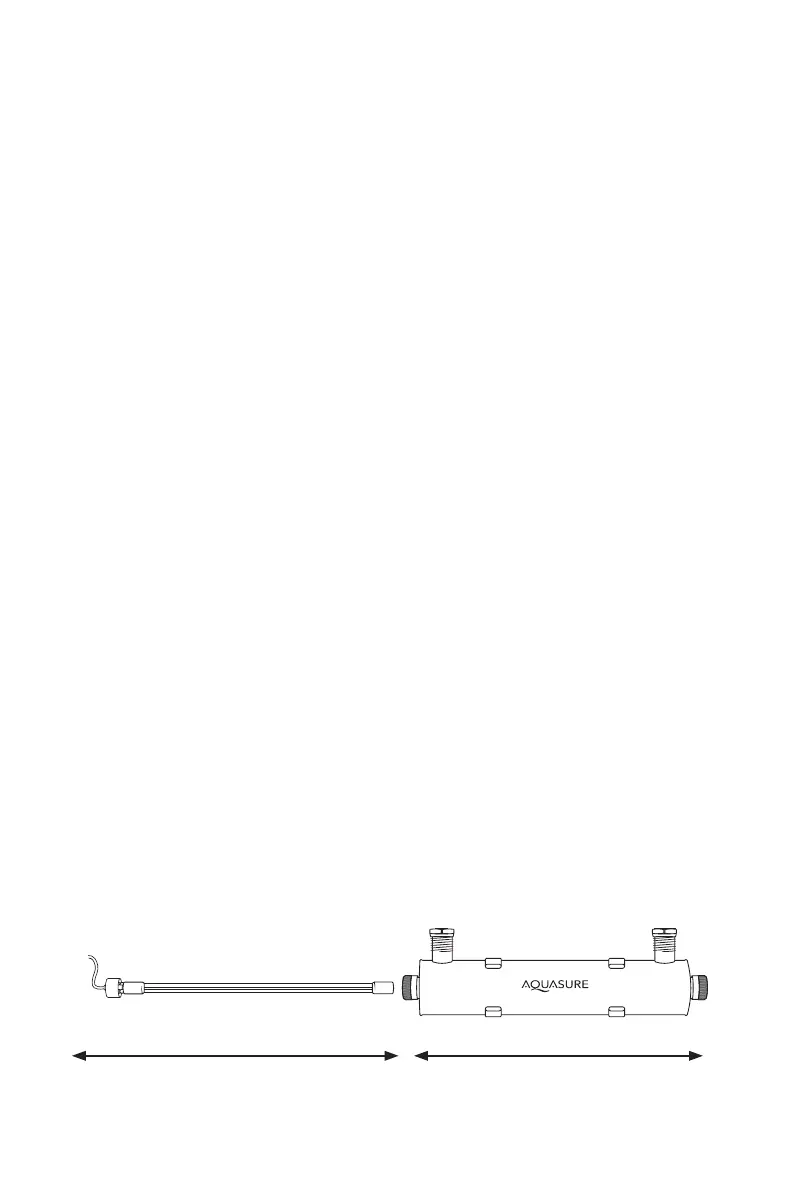

AS-UV8S Model
shown as reference.
System LengthClearance for replacing
the UV Lamp
