Aquatic 7
Infinity Owner's Manual & Installation Guide
WARNING: ALL ELECTRICAL CONNECTIONS SHOULD BE MADE BY A LOCALLY LICENSED ELECTRICIAN.
5. When placing the tub on a platform or cut out (see Diagrams), the opening should be 1” smaller than the specified
rim dimensions. Extreme care must be taken in this type of installation to ensure the tub will come to rest entirely on the
leveling feet.
6. IF YOU HAVE PURCHASED A WHIRLPOOL WITH AN INSTALLED TILE FLANGE, PROCEED TO INSTRUCTION “2A”.

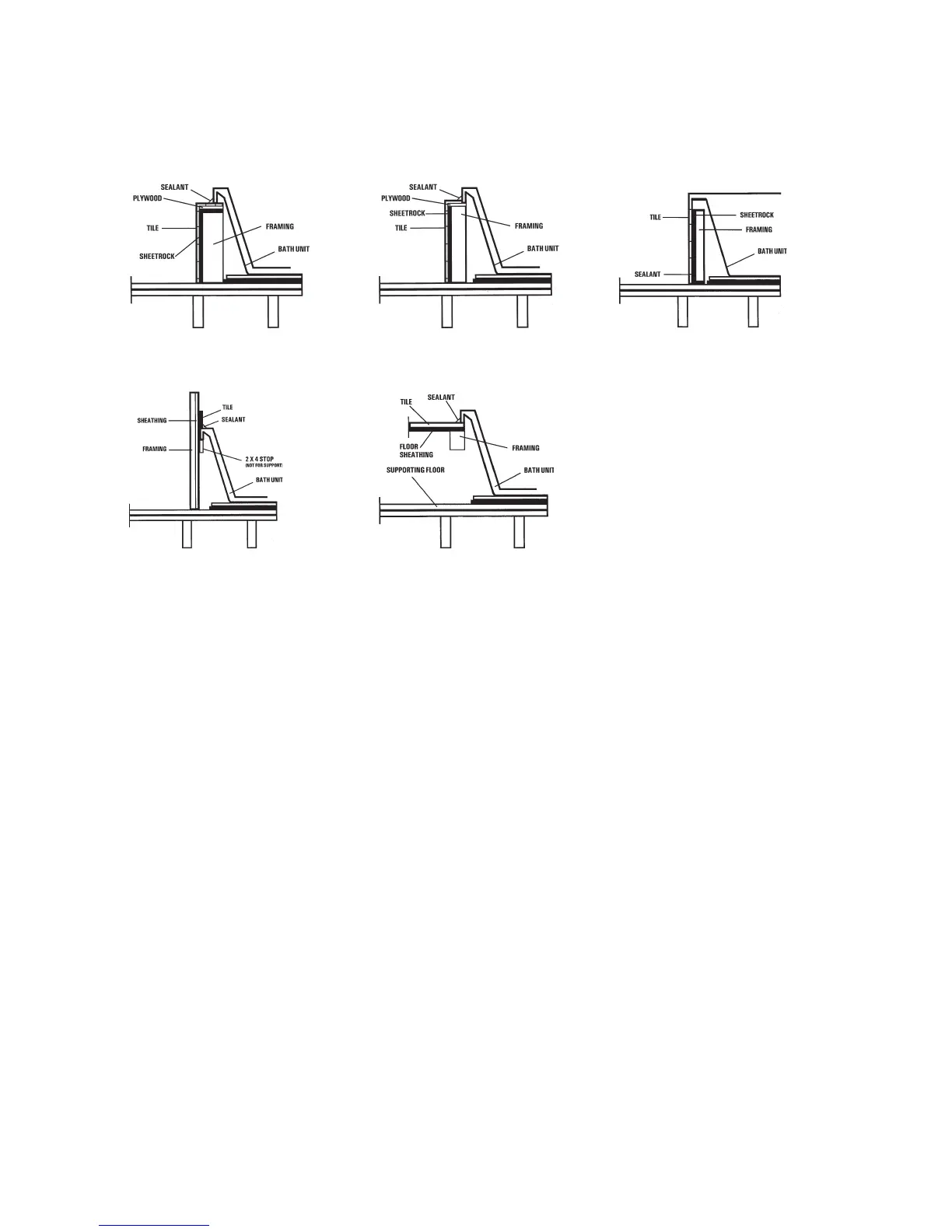

INSTALLATION INSTRUCTIONS
1D Wall Installation 1E Sunken Installation
1B Ledge Installation - 2 1C Apron Installation
1A Ledge Installation - 1
