RATED OUTPUT POWER: 35 watts typical, 25 watts
minimum
INPUT FOR RATED OUTPUT: 1.0 mW Max
POWER OUTPUT @ 3dB COMPRESSION:
Typical: 35 watts, Minimum: 25 watts
POWER OUTPUT @ 1dB COMPRESSION:
Typical: 30 watts, Minimum: 20 watts
FLATNESS: ±1.0 dB typical, ±1.5 dB maximum
FREQUENCY RESPONSE: 10kHz-250 MHz instantane-
ously
GAIN (at maximum setting): 44 dB minimum
GAIN ADJUSTMENT (Continuous Range) : 20 dB mini-
mum
INPUT IMPEDANCE: 50 ohms, VSWR 2.0:1 maximum
OUTPUT IMPEDANCE: 50 ohms nominal
MISMATCH TOLERANCE: 100% of rated power with-
out foldback. Will operate without damage or oscilla-
tion with any magnitude and phase of source and load
impedance. See Application Note #27.
MODULATION CAPABILITY: Will faithfully reproduce
AM, FM, or Pulse modulation appearing on input sig-
nal.
THIRD ORDER INTERCEPT: 55 dBm typical
NOISE FIGURE: 8 dB typical
HARMONIC DISTORTION: Minus 20 dBc maximum at
20 watts, -35 dBc typical at 15 watts
SPURIOUS: Minus 73 dBc typical
PRIMARY POWER (Universal; selected automatically):
100-240 VAC, 50/60Hz, 200 watts
CONNECTORS:
RF Input: N female
RF Output: N female
REMOTES PACKAGE:
IEEE-488: 24-pin female
RS-232: 9-pin subminiature D (female)
Fiber optic: ST Conn Tx and Rx RS-232
USB 2.0: Type B
Ethernet: RJ-45
Safety Interlock: 15-pin subminiature D
COOLING: Forced air (self contained fans)
WEIGHT:
With Cabinet 16.7 kg (37 lbs)
Without Cabinet 8.6 kg (19 lbs)
SIZE (W x H x D):
With cabinet: 50.3 x 15.5 x 55.1 cm (19.8 x 6.1 x
21.7 in)
Without Cabinet: 48.3 x 13.2 x 55.1 cm (19 x 5.2 x
21.7 in)
ENVIRONMENTAL:
Operating Temperature: 5°C / +40°C
Operating Altitude: Up to 2000M
Shock and vibration: Normal Truck Transport
REGULATORY COMPLIANCE:
EMC EN 61326-1
Safety UL 61010-1
CAN/CSA C22.2 #61010-1
CENELEC EN 61010-1
RoHS DIRECTIVE 2011/65/EU
EXPORT CLASSIFICATION: EAR99
Page 2
Specifications
25A250B
25 Watts CW
10kHz–250MHz

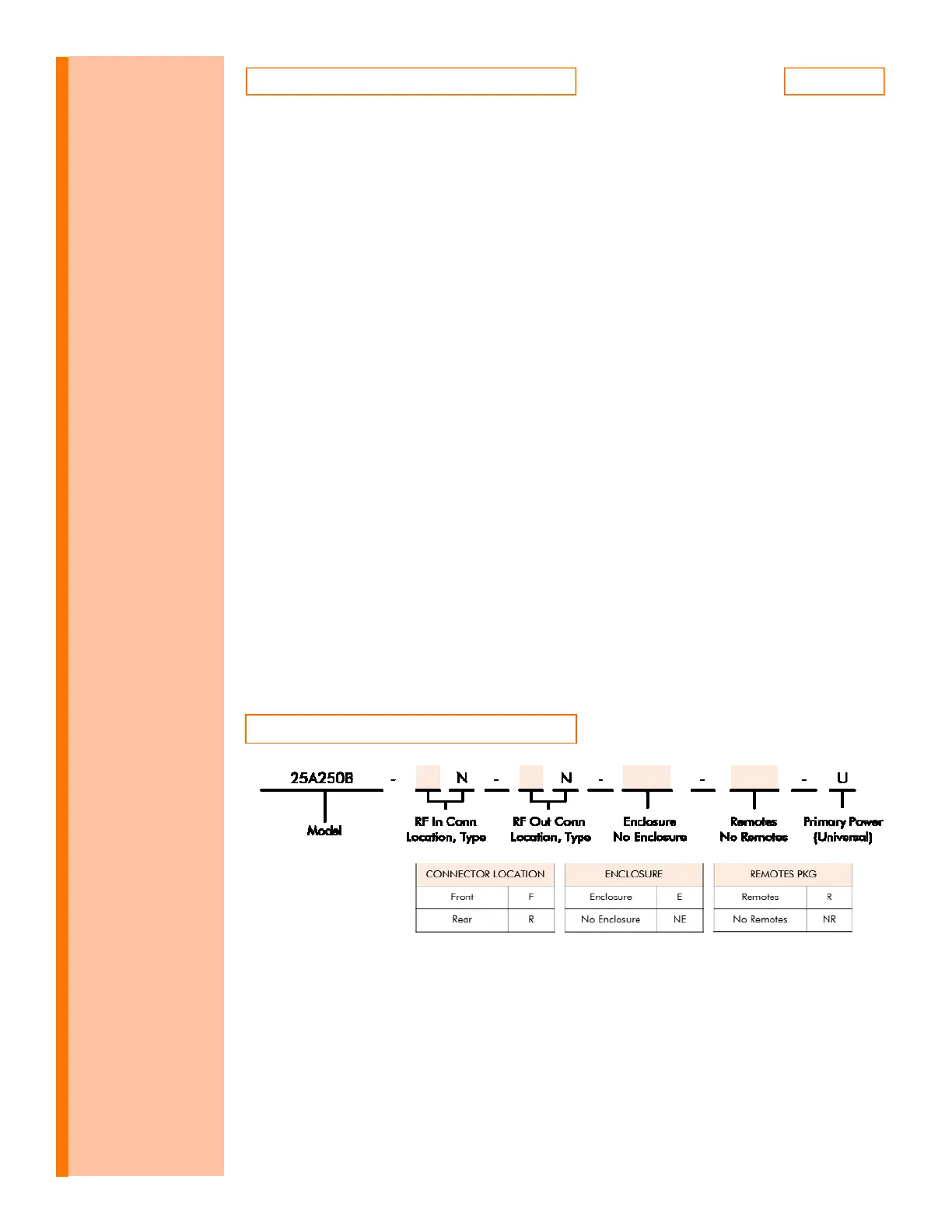

Ordering Options
Contact your AR RF/Microwave Instrumentation Sales Associate for specific model
configuration pricing.
