AR 25A250B - Typical Response at -20 Dbm Input

Model 25A250B
24 Rev A
4.3.7 Low or No Power Output (RF Test) (Schematic Diagram No.
10042820)
NOTE: The DC Tests specified in Section 4.3.8 should be completed before conducting the RF tests specified
in the following sections.
1. The Model 25A250B’s typical gain response at -20 dBm input and 0 dBm input is shown in Figures 4-1
and 4.2 respectively. The actual gain may vary considerably from that shown in Figure 4-1 but should be
≥ 46 dBm at 0dBm input (TR2).

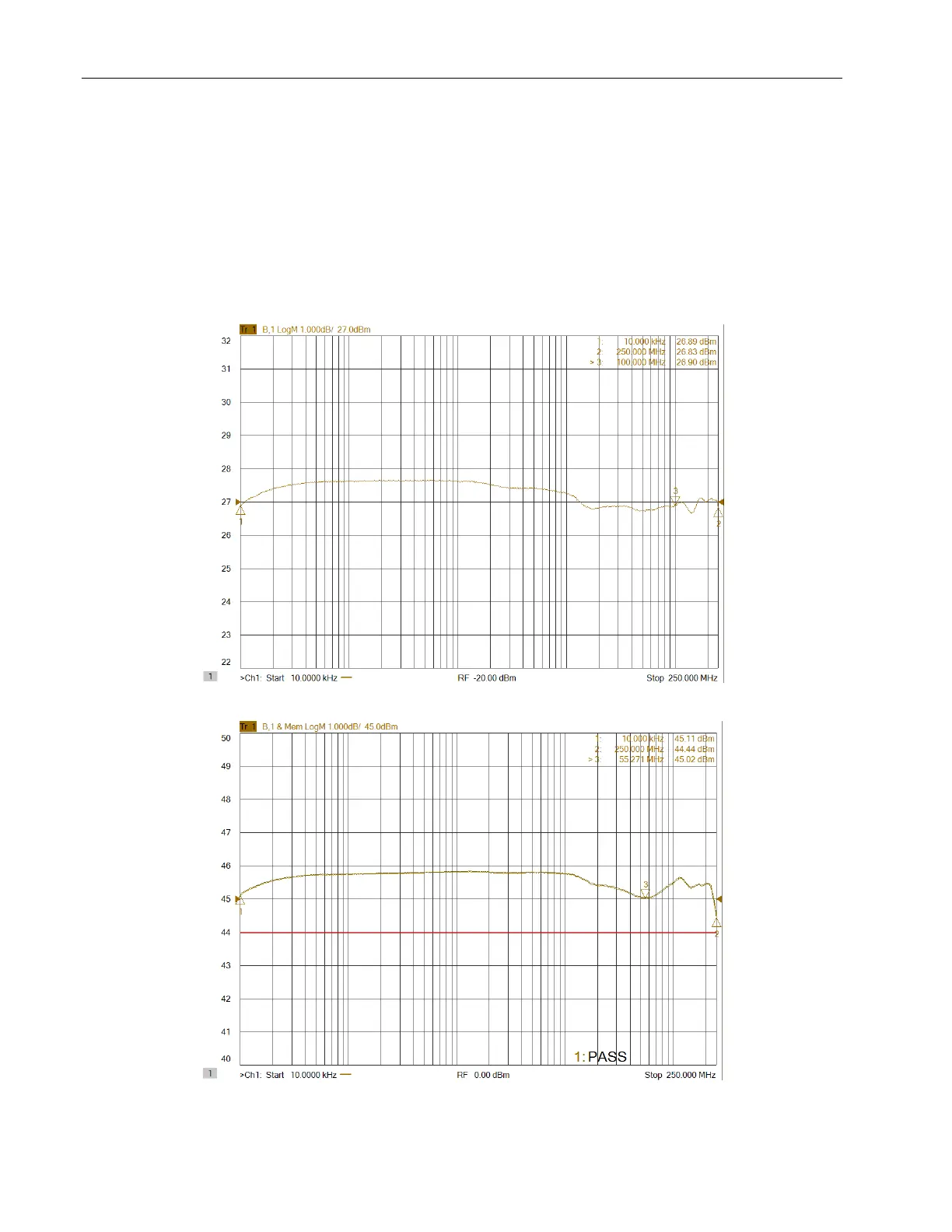

Figure 4-1. Typical Response at -20dBm Input
Figure 4-2. Typical Response at 0 dBm Input
