H
K
H1
H
K
Phillips Screw Driver
Phillips Flat Countersunk Head Bolt
- 2 pcs
Upper Left Side Panel - 1 pc
Upper Panel - 1 pc
Make sure LED lights
are on this side

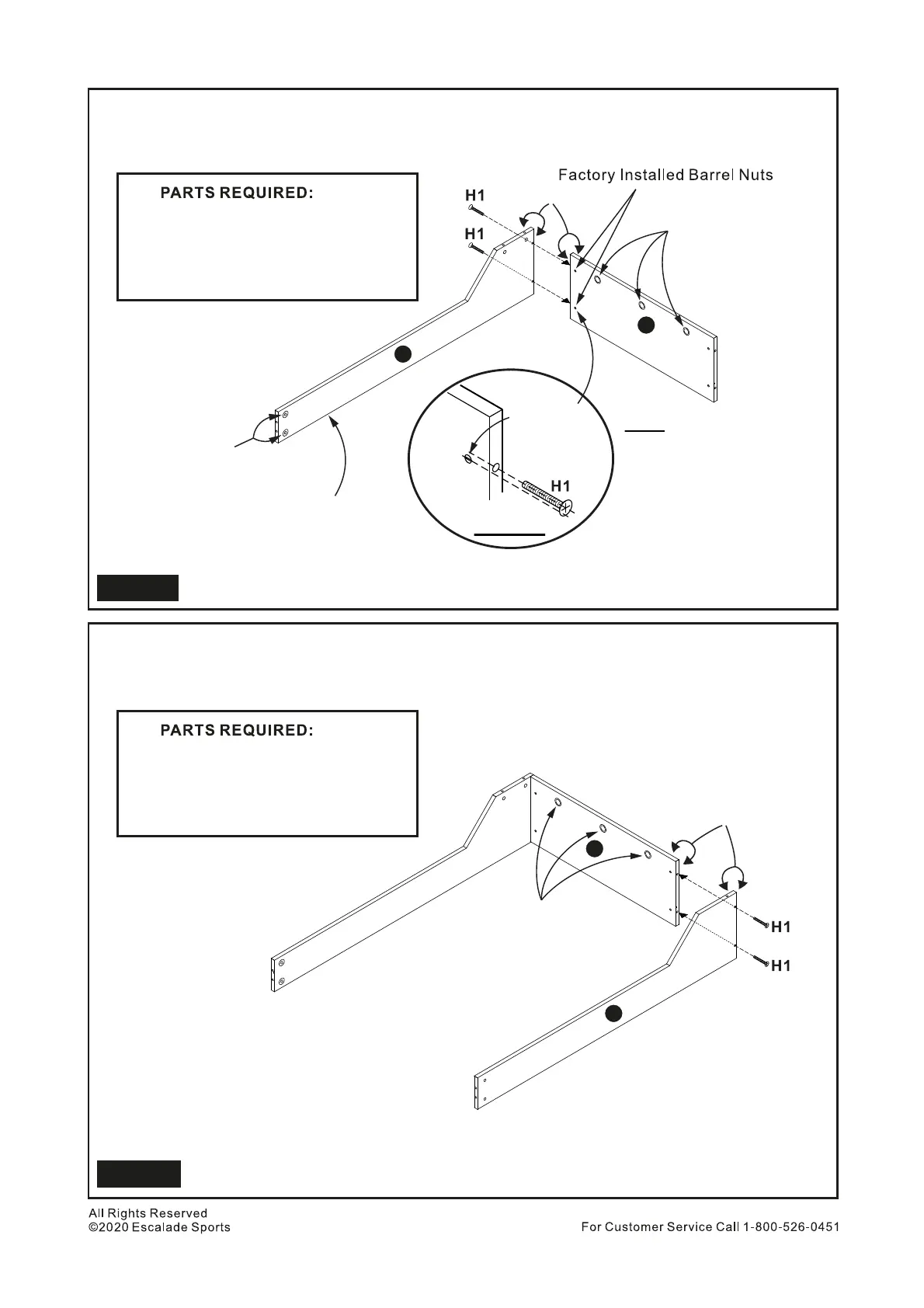

Install Part K to Part H using H1 Bolts. See Figure 7. Factory Preinstalled Barrel Nuts on Part K must
be aligned to bolt holes for proper installation. See Figure 7A.
Tighten, but do Not over tighten or strip out H1 Bolts.
13.
Factory
preinstalled
barrel nut
Must align
with bolt
Note:
If barrel nuts do not align
with bolt direction, use a
(-) screwdriver to adjust
the barrel nut to be aligned
with bolt direction.
Install Part I to Part K using H1 Phillips Flat Head Bolts. See Figure 8. Factory Preinstalled Barrel
Nuts on Part K must be aligned to bolt holes for proper installation. See Figure 7A on Step 1.
Tighten, but do Not over tighten or strip out H1 Bolts.
14.
K
I
H1
I
K
Phillips Screw Driver
Phillips Flat Countersunk Head Bolt
- 2 pcs
Upper Right Side Panel - 1 pc
Upper Panel - 1 pc
Must be flush
Must be flush
T-Nuts Inside
Groove Inside & Down
10
Figure 7A
Figure 7
Figure 8
Make sure LED lights
are on this side
(inside / top side)
To Next Page
