ARAG 871 Series User Manual

10
3.3 Connecting up the system

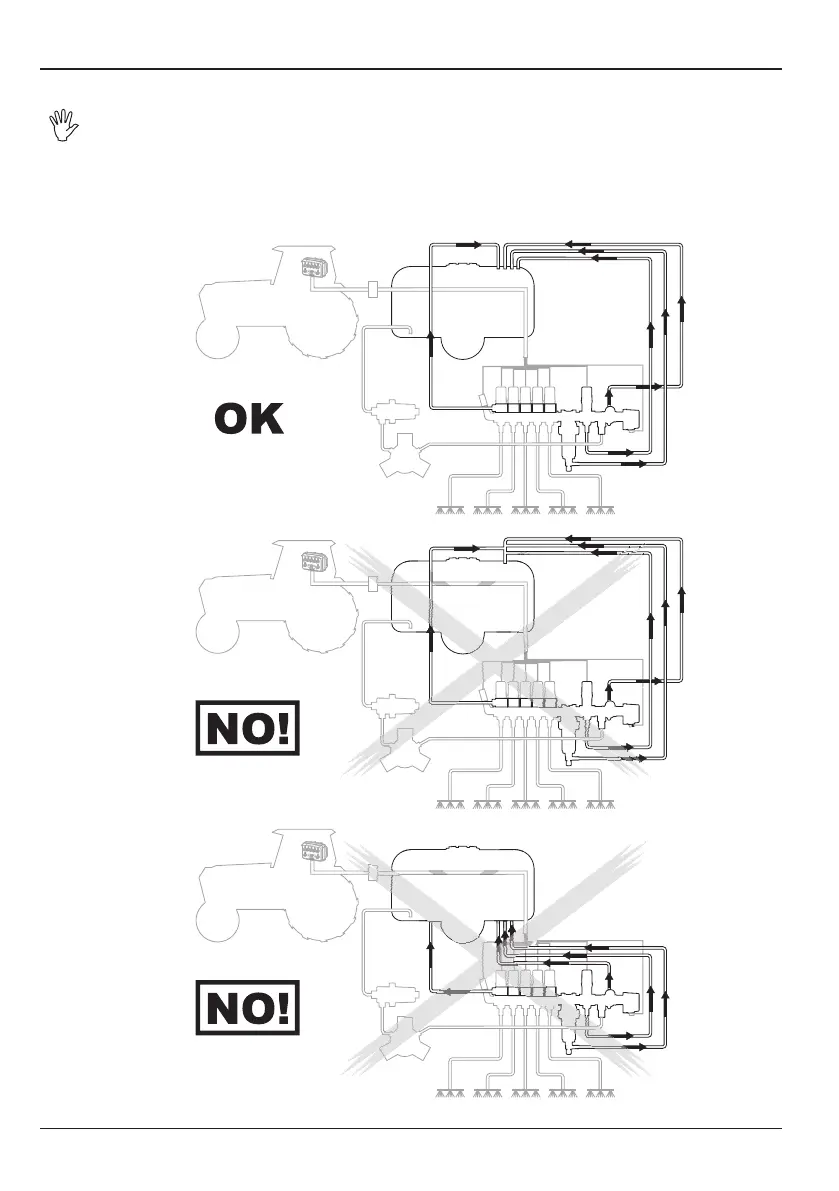

Connect the hoses in the system according to the layout shown below.
WARNING!
- Do not connect backow hoses in the lower part of the tank with the intention of
using them as hydraulic stirrers; only place them in the upper part so the liquid
drops down by gravity, as shown in Fig. 5.
- Make a separate connection of the backow of the valves with the tank.
Fi g. 5
