PoE Budgeting
The power budget for delivering Power over Ethernet limits the total number of watts available between all
of the ports (limited to 30W total consumption on each port). Add the total number of watts consumed by
all connected PoE devices to ensure that every thing can be powered, as illustrated in the example below.
Model PoE Budget
AN-210-SW-C/F/R-8-POE 65W
AN-210-SW-F/R-16-POE 130W
AN-210-SW-F/R-24-POE 190W
AN-210-SW-F-48-POE 375W
AN-310-SW-F/R-8-POE 130W
AN-310-SW-F/R-16-POE 250W
AN-310-SW-F/R-24-POE 375W

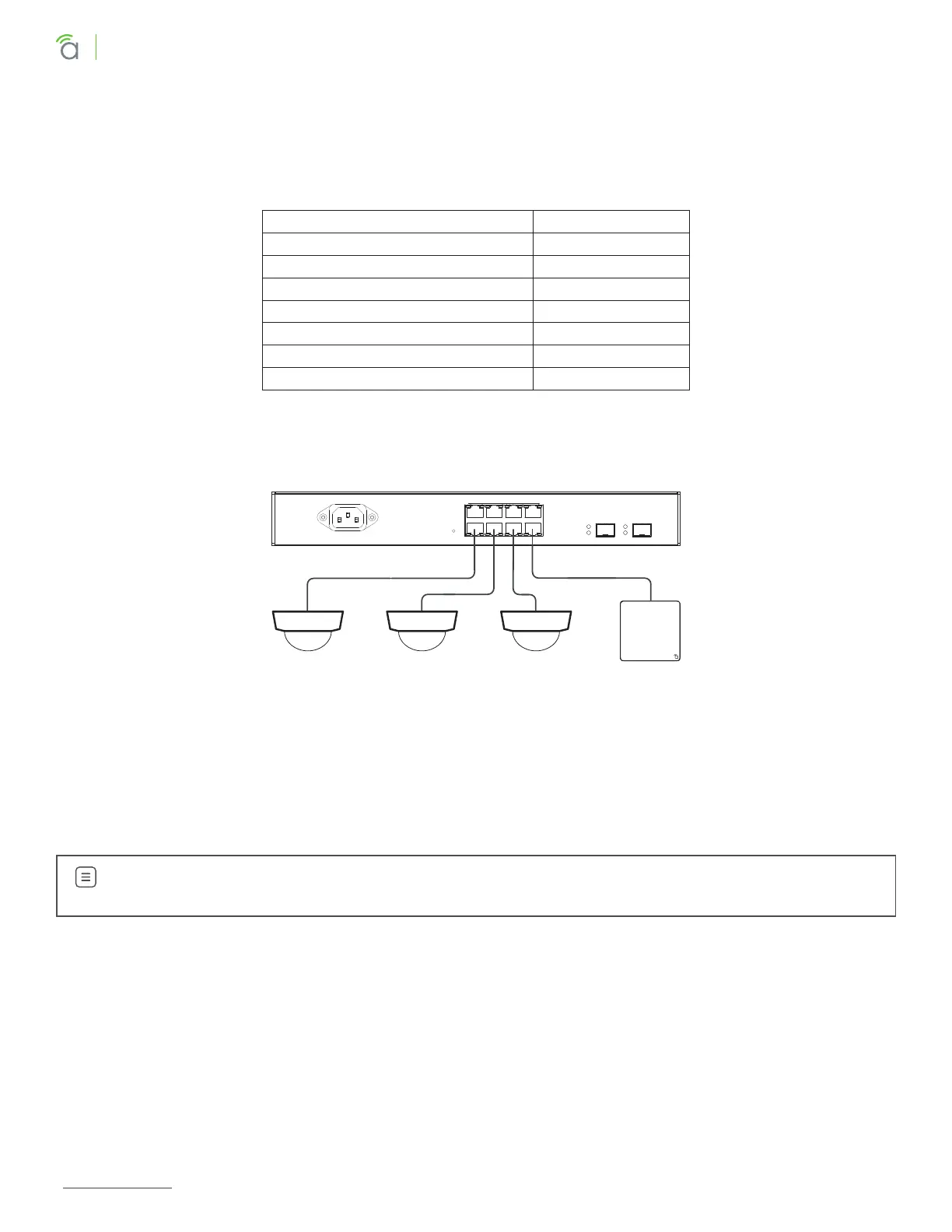

PoE Budget Calculation Example
Figure 5. PoE Calculation Example
RESET
1 3 5 7
2 4 6 8
Link/Act1 Gbps
9 SFP 10 SFP
Link/Act
1 Gbps
AN-210-SW-R-8-POE
Total PoE Device
Consumption
= 42W
PoE Budget Left Available = 23W
Total PoE Budget Available = 65W
8W + + +8W 12W 14W
Note – Port PoE settings may be modified using the PoE Settings menu. Click to see information
and instructions.
