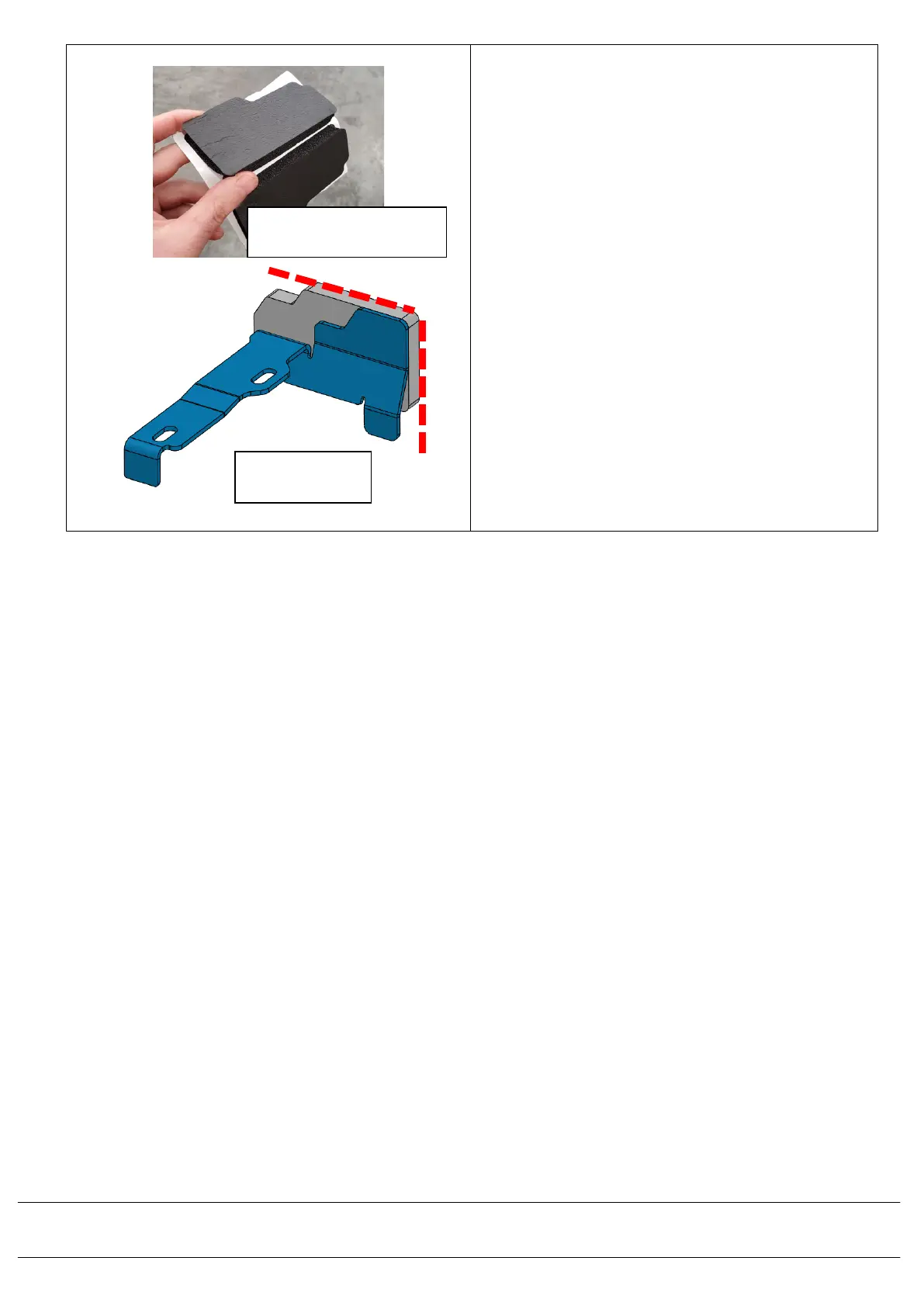

4.34) Separate the foam tape pad 668PB032
in half. Remove the backing paper on
one side.
4.35) Adhere RH and LH foam pad to rear
corner tailgate sealing bracket
(668PD159R/L) respectively.
4.36) Align top edge and inner edge of bracket
with foam pad as shown.
SEPARATE LH AND RH
FOAM PADS
