4.30) Once the spigots have been cut off and
per position location on the tub (Middle
or Rear), place spacer locators
668PE051R/L along tub lip (2 LH parts
to LH tub rail and 2 RH parts to RH tub
rail top surfaces).

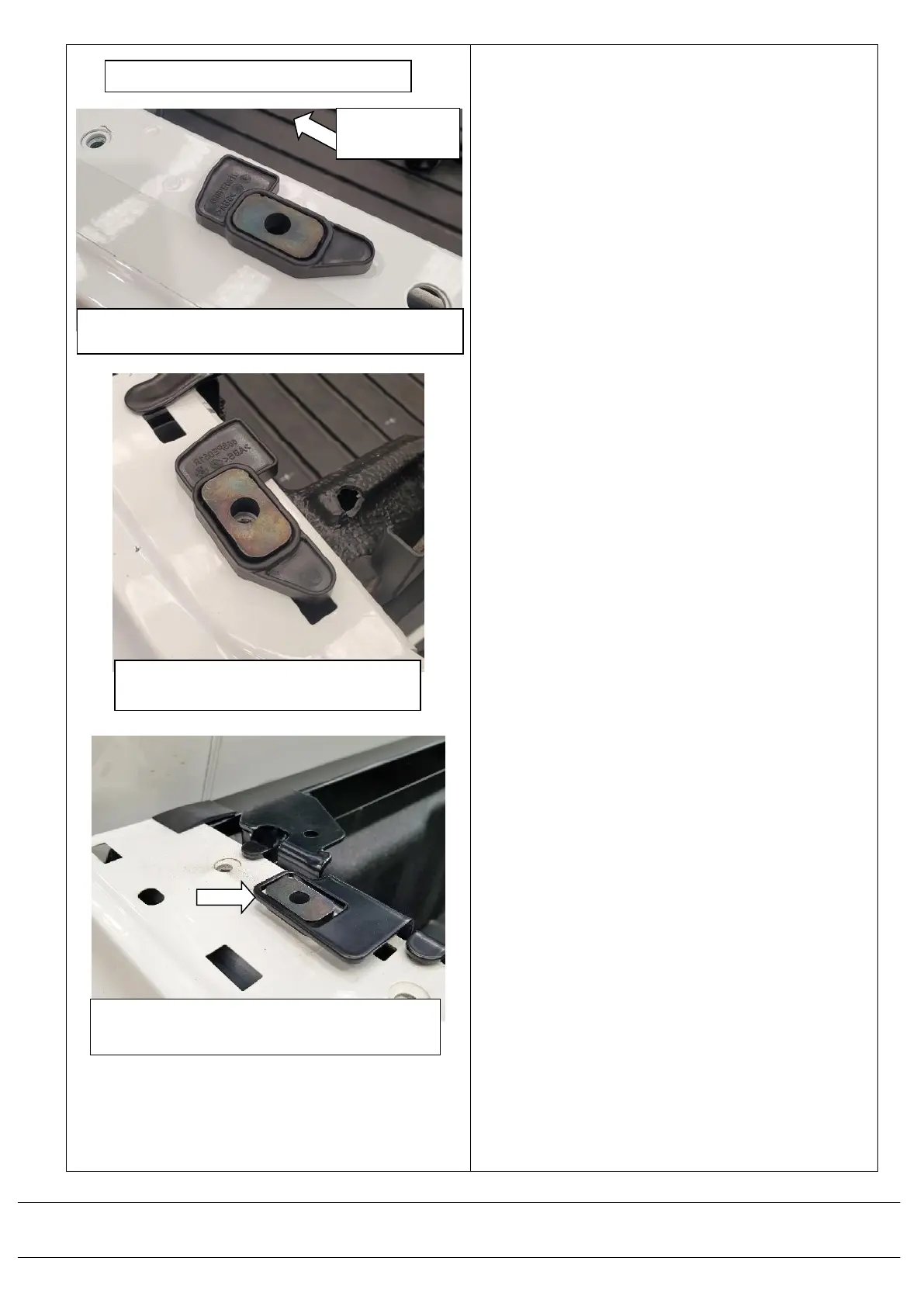

4.31) Position these Middle and Rear. See
images. The spigots on the locators
locate into existing holes in the tub
corresponding to their position on the
tub.
4.32) Then place inside 668PE051R/L spacer
locators a total of 4 (668PD151)
rectangular spacers that are 10mm
thick.
4.33) Through the front corner mount
brackets (668PD167R/L) place of 2
(668PD151) rectangular spacers that
are 10mm thick.(1 per side).
