If you have any queries regarding the installation of this product, please contact the distributor from whom it was purchased, or alternatively the ARB office in your state.
Head Office – ARB Corporation Ltd VIC: 42-44 Garden Street, Kilsyth, Victoria, 3137 Tel: (03) 9761 6622 Fax: (03) 9761 6807
WA:(08) 9244 3553 NSW: (02) 9821 3633 ACT: (02) 6280 7475 SA: (08) 8244 5001 QLD: (07) 3872 3872 NT: (08) 8947 2262 TAS: (03) 6331 4190

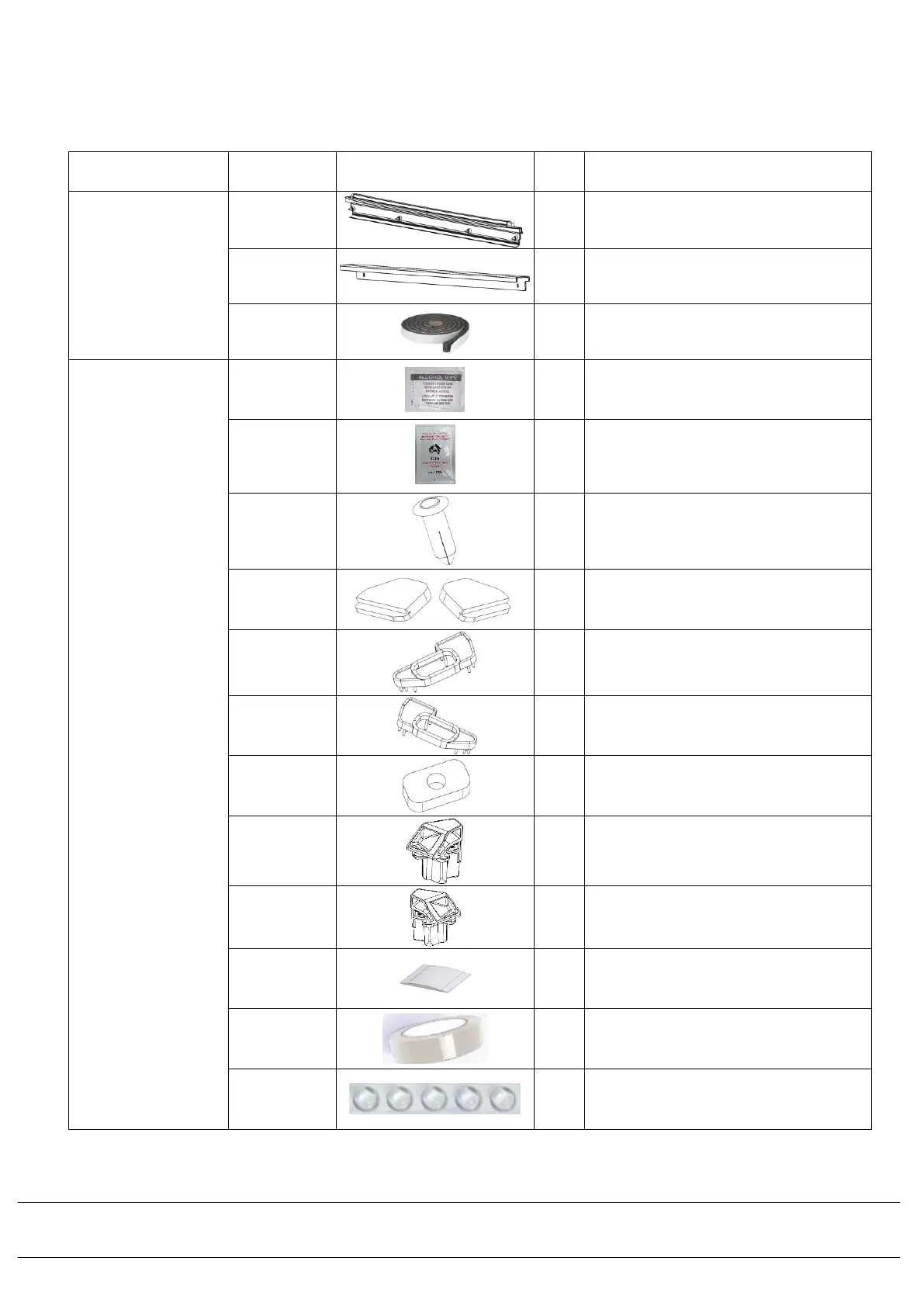

THE FITTING KIT CONTAINS:
Packed under the canopy are 2 fitting kits:
6177780 contains the tailgate door stop sealing kit and tub front head board mounting rail.
6177931 contains the main hardware for mounting the canopy.
Kit No
Part No
Qty
Description
1). 6177780
TAILGATE AND
HEAD BOARD KIT
668AQ027
1
ASSEMBLY TAILGATE DOOR
SEALING STOP
668PD156
1
FRONT MOUNT RAIL FOR FRONT OF
TUB
668PB018
1
ROLL OF FOAM TAPE 26 x 2 x
1650mm
2). 6177931
MAIN
CANOPY
HARDWARE KIT
6602018
6
ALCOHOL WIPES
665505
1
RUST INHIBITOR SACHET
6152086
4
PLASTIC PUSH RIVET 6.5MM DIAM X
14MM STEM
668PB033
1
PAIR
TUB FRONT CORNER SEALS - PAIR
OF
668PE051R
2
RH SPACER LOCATOR TUB RAIL
668PE051L
2
LH SPACER LOCATOR TUB RAIL
668PD151
6
10MM THICK SPACERS-TUB RAIL
668PE057R
1
RH REAR TUB RAIL SEAL
668PE057L
1
LH REAR TUB RAIL SEAL
668PM005
1
PAIR
FRONT TUB CORNER SEAL BRIDGE
665037
2
ROLL- CLEAR TAILGATE
PROTECTION TAPE 30mm WIDE
665076
2
BUMPON STRIP OF 5 PIECES
