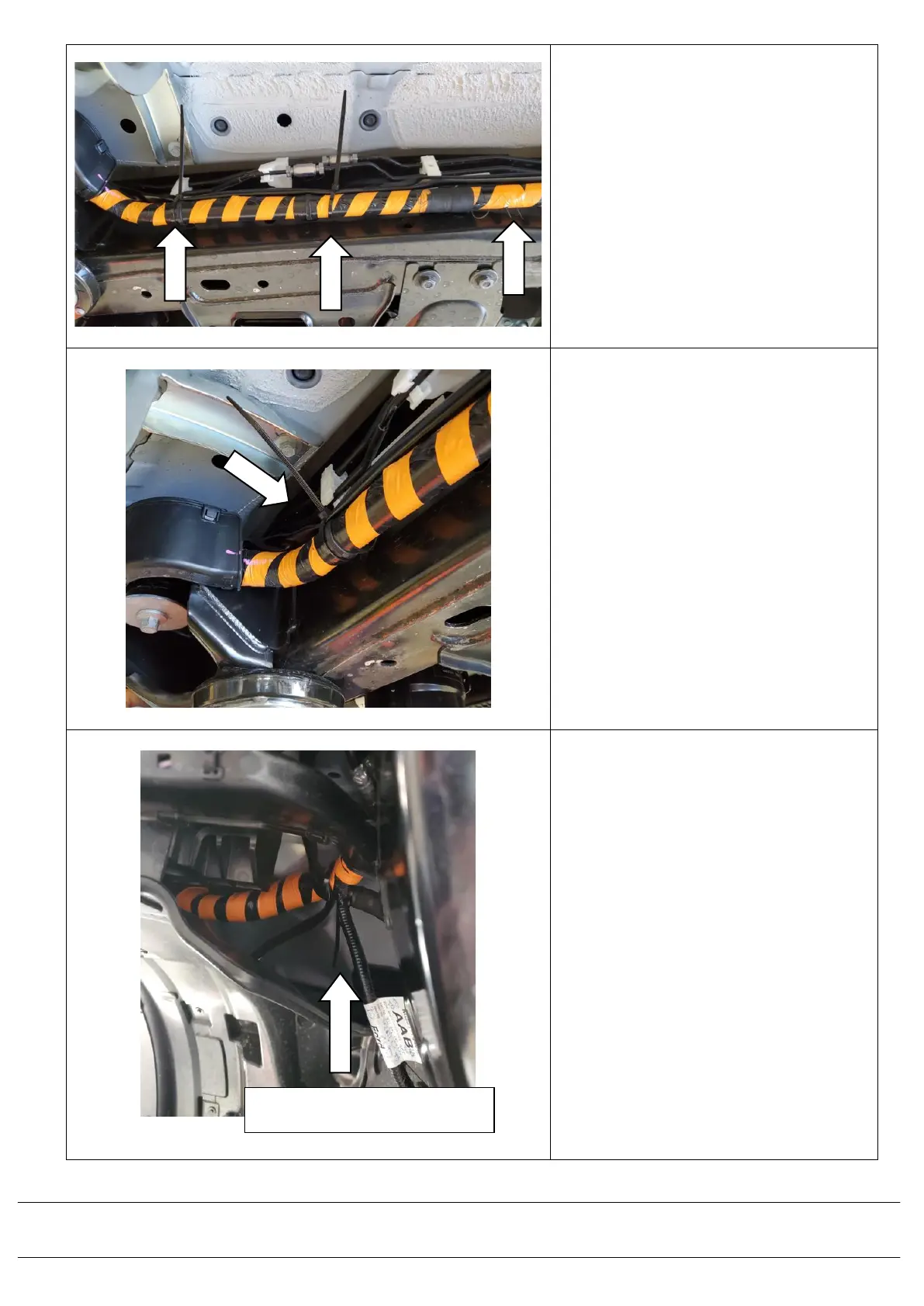

5.12) Cable tie off the canopy loom
with 3 more cable ties to the
vehicle’s loom as it heads
forwards towards the plastic
cable track behind the front LH
wheel near the body mounting.
5.13) Pass the canopy loom
between the chassis rail and
the body floor (behind the
body mount), ensuring all
forward connectors and fuses
are orientated to fit through the
cavity.
5.14) Lead the canopy loom through
to the front LH front wheel arch
liner and cable tie off to
vehicle’s main loom at the
bottom
LEAD LOOM BEHIND LH
FRONT WHEEL ARCH LINER
To Next Page
