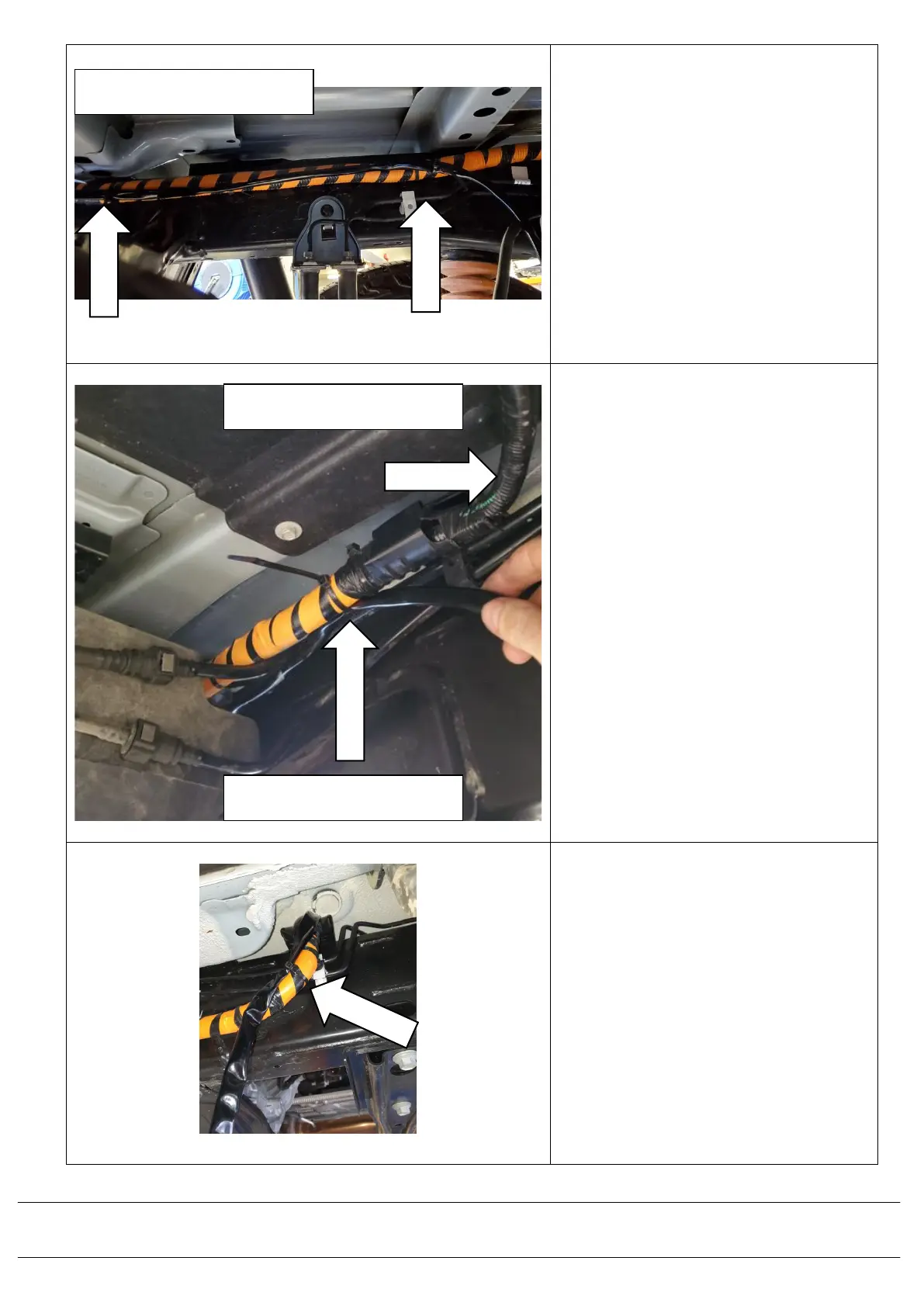

5.9) On inner side of LH chassis
rail, locate the vehicle’s wiring
loom and lead the canopy
loom towards the front of the
vehicle and cable tie in two
places rearward of the LH rear
wheel bump stop.
Do not tie cable ties to brake
lines.
5.10) Cable tie off the canopy loom
again at 3 places to the
vehicle’s wiring loom before it
reaches the location where the
vehicle’s loom crosses over
the top of the LH chassis rail.
5.11) Pick up vehicle’s loom on the
outside of the LH chassis rail
and secure the canopy loom to
the vehicle’s loom with a cable
tie at the bend.
CABLE TIE LOOM ACROSS
LH CHASSIS RAIL
CABLE TIE LOOM ACROSS
LH CHASSIS RAIL
PASS LOOM THROUGH TO
OUTSIDE OF CHASSIS RAIL
