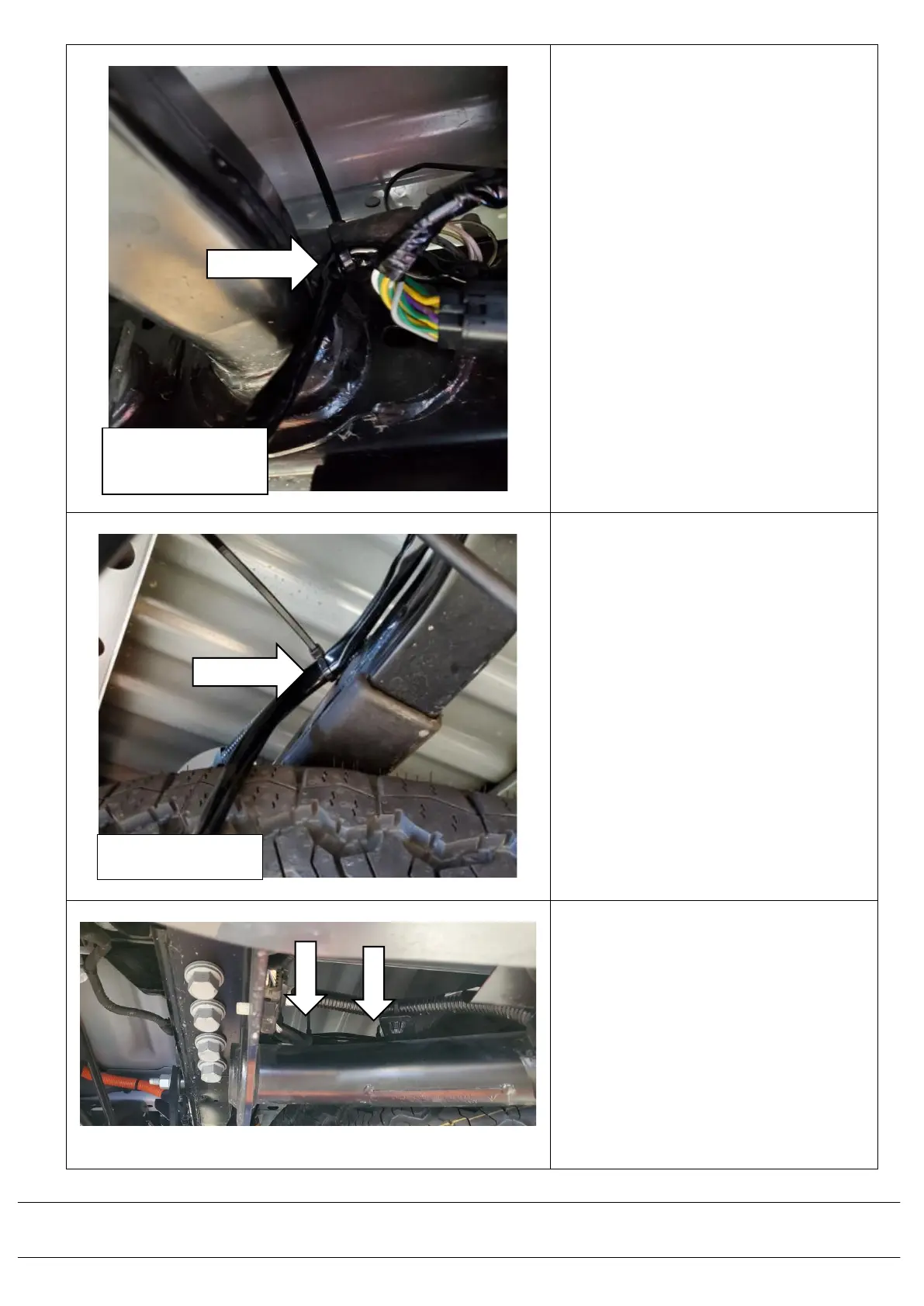

5.6) Use a cable tie (180302) and tie
off the canopy loom to the
vehicle’s loom at the RH corner
of chassis where the cross
member goes across the
vehicle.
5.7) Follow the vehicle loom across
the width of the vehicle’s
chassis to LH side behind the
spare tyre and cable tie the
canopy loom to it before the
spare tyre.
5.8) Cable tie off canopy loom to the
vehicle’s loom above the spare
tyre and at the chassis junction
of the cross member to the LH
side chassis rail (2 cable ties
used).
CABLE TIE LOOM
AT REAR CORNER
OF CHASSIS
CABLE TIE LOOM
ACROSS CHASSIS
