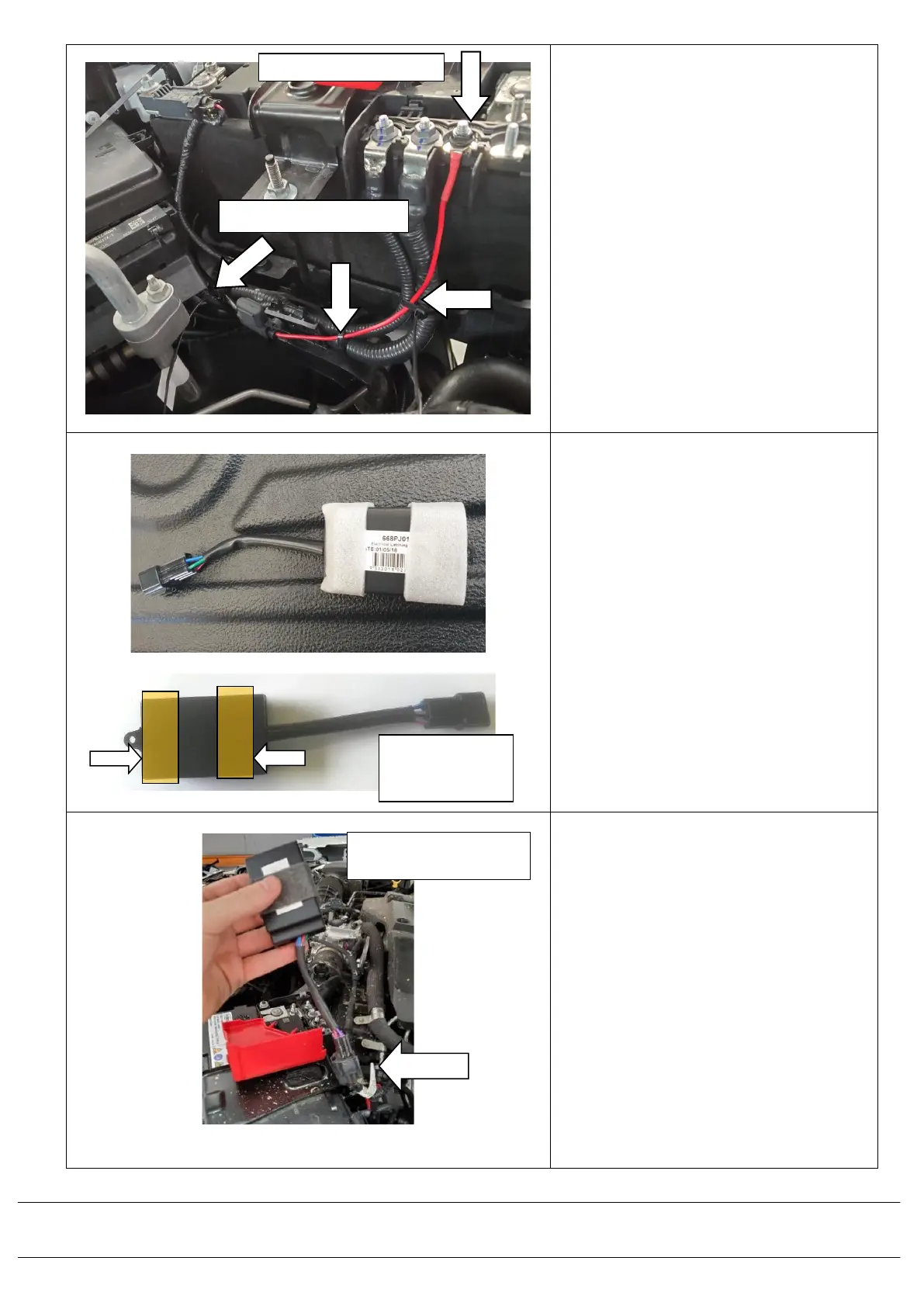

5.17) Locate the positive battery
terminal under the red plastic
cover and connect the 6mm
eyelet on the red wire of the
canopy loom to the third battery
terminal.
Use the M6 flange nut
(6151173) to secure the eyelet
to the battery.
5.18) Cable tie off the loom to the
vehicle loom conduit with
cable ties in 3 places.
5.19) Use (668PB015) anti-rattle
foam strips and apply in the two
positions shown on the
(668PJ015) latch relay.
5.20) Connect (668PB015) relay box
to the canopy wiring harness at
connector.
668PB015
ANTI-RATTLE
FOAM TAPE
CONNECT RELAY TO
CANOPY LOOM
