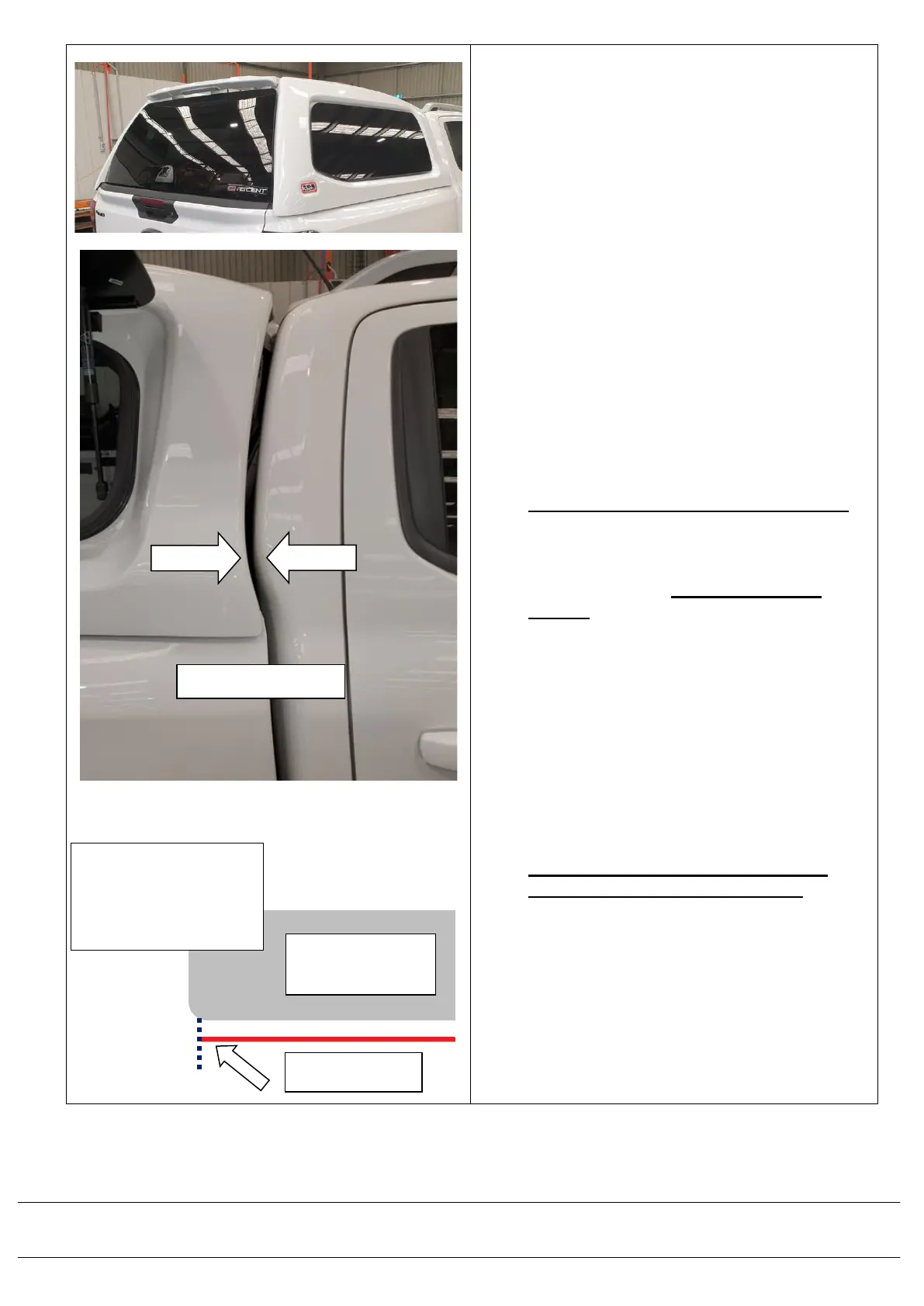

6.7) Close the canopy’s rear door and USING
4 PEOPLE, lift the canopy from the pallet
and place it carefully down onto the
vehicle’s tub
Be careful not to dislodge the foam
tape around the inside edge of the
canopy shell’s lip perimeter.
Take care during this process to
ensure the trim edge of the canopy
shell is lowered down evenly and is
not contacting the vehicle tub to avoid
paint damage.
When re-positioning the canopy, lift
the canopy up to avoid dislodging the
weather seal underneath.
POSITIONING OF CANOPY ON TUB:
The canopy should be positioned so
the lower door edge’s sash seal is
sealing well and evenly along it’s
length to the tailgate door stop
extrusion assembly mounted on the
vehicle’s tailgate and even side to
side so the tailgate closes with
clearance between the door frame
seals at the sides of the canopy.
Then review the front leading lower
edge corners of the canopy are
aligned just to the beginning of the
edge radius at the front of the tub.
Check minimum gap from canopy
front pillars and cabin is 20mm at the
tightest location on the hip of the
front pillar of the canopy to the
vehicle’s cabin.
