SECTION 6: FITTING THE CANOPY

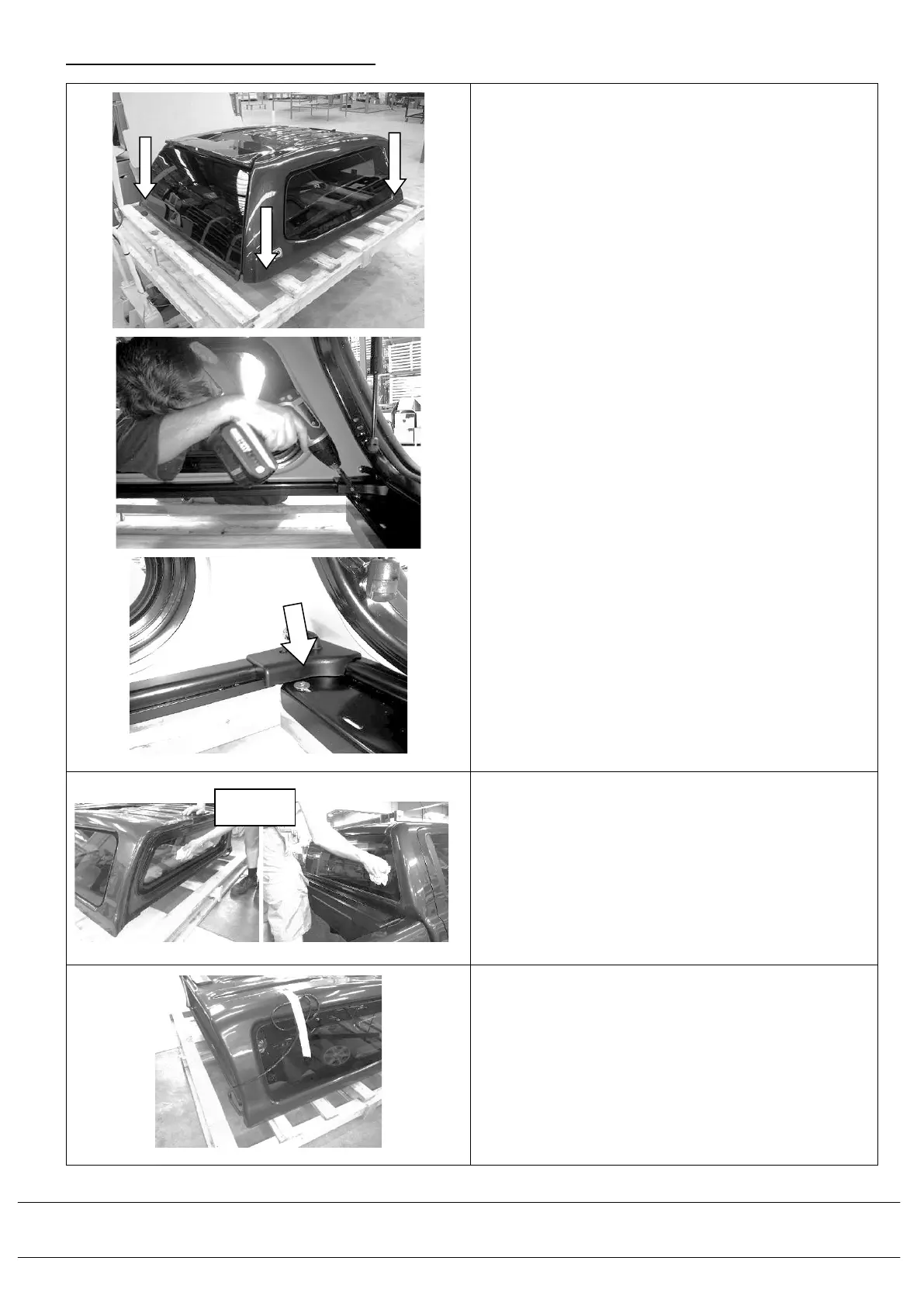

6.1) Unscrew the canopy on the pallet by
removing the 4 wood screws in each
corner. Gain access to screws via opening
the rear door and front lift up window
6.2) The front lift up window can be unlatched
by reaching in underneath the canopy on
the pallet and pushing forward on the
glass in car position, to push the latch
button upwards on both latches to unlock
the window.
6.3) Clean the front window of the canopy on
the outside.
6.4) Clean the rear window of the vehicle’s
cabin.
6.5) Close the vehicle’s tailgate.
6.6) Cut the cable tie holding the wiring
harness to the window frame bracket
inside the front corner of the canopy.
Using masking tape, tape the harness up
over the front LH corner of the canopy.
To Next Page
