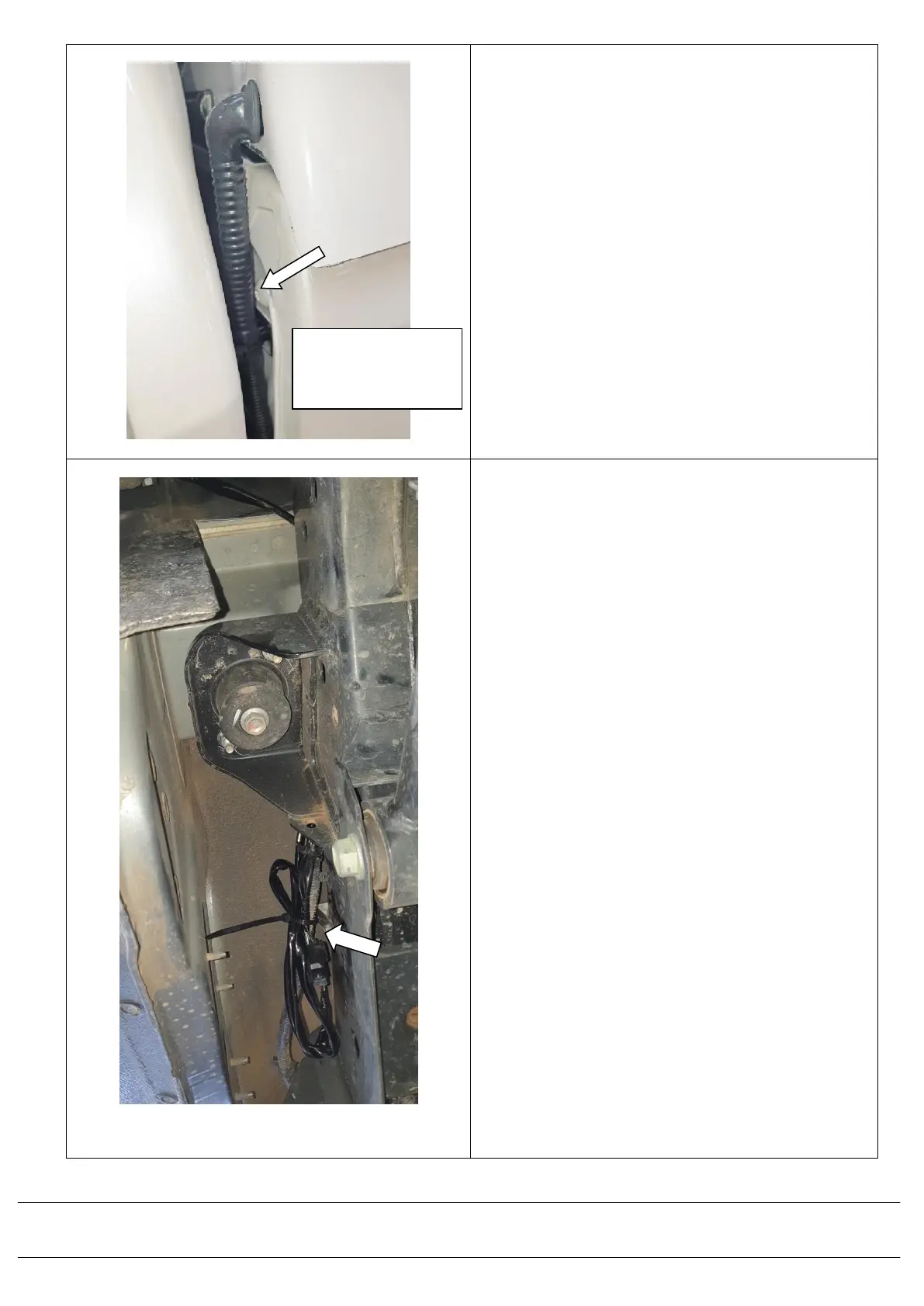

6.25) Reaching between the tub and cabin on
left hand side with an alcohol wipe, clean
an area on the front of the tub level to
where the cable tie base will be fitted.
6.26) Peel the protection film off the cable tie
base (6821293) and drop the canopy
loom down between the cabin and tub on
the LH side.
6.27) Reaching in between the cabin and the
tub, press the cable tie base firmly onto
the front of the tub and ensure it has
adhered firmly.
6.28) Connect the canopy wiring connector to
the end connector of the canopy wiring
harness (668PJ031) fitted to the vehicle,
in the plenum above the LH chassis rail
forwards of the LH rear cabin body
mount.
6.29) Cable tie the remaining harness up in the
cavity and tie it off the to the vehicle’s
main wiring loom.
6.30) Press the key fob of the car to the
UNLOCK POSITION TWICE.
6.31) Go to the canopy’s rear door and press
the door push button pad. Check the
door opens and the electric actuator
functions to unlock the canopy door.
6.32) Turn the interior light to the “II” position
that the interior light turns off when the
door is closed.
CLEAN AND
PLACE CABLE
TIE BASE HERE
