ARB AIRLOCKER RD147 - 7 Parts List; Exploded Assembly Diagram; Specifications

7 Parts List
41

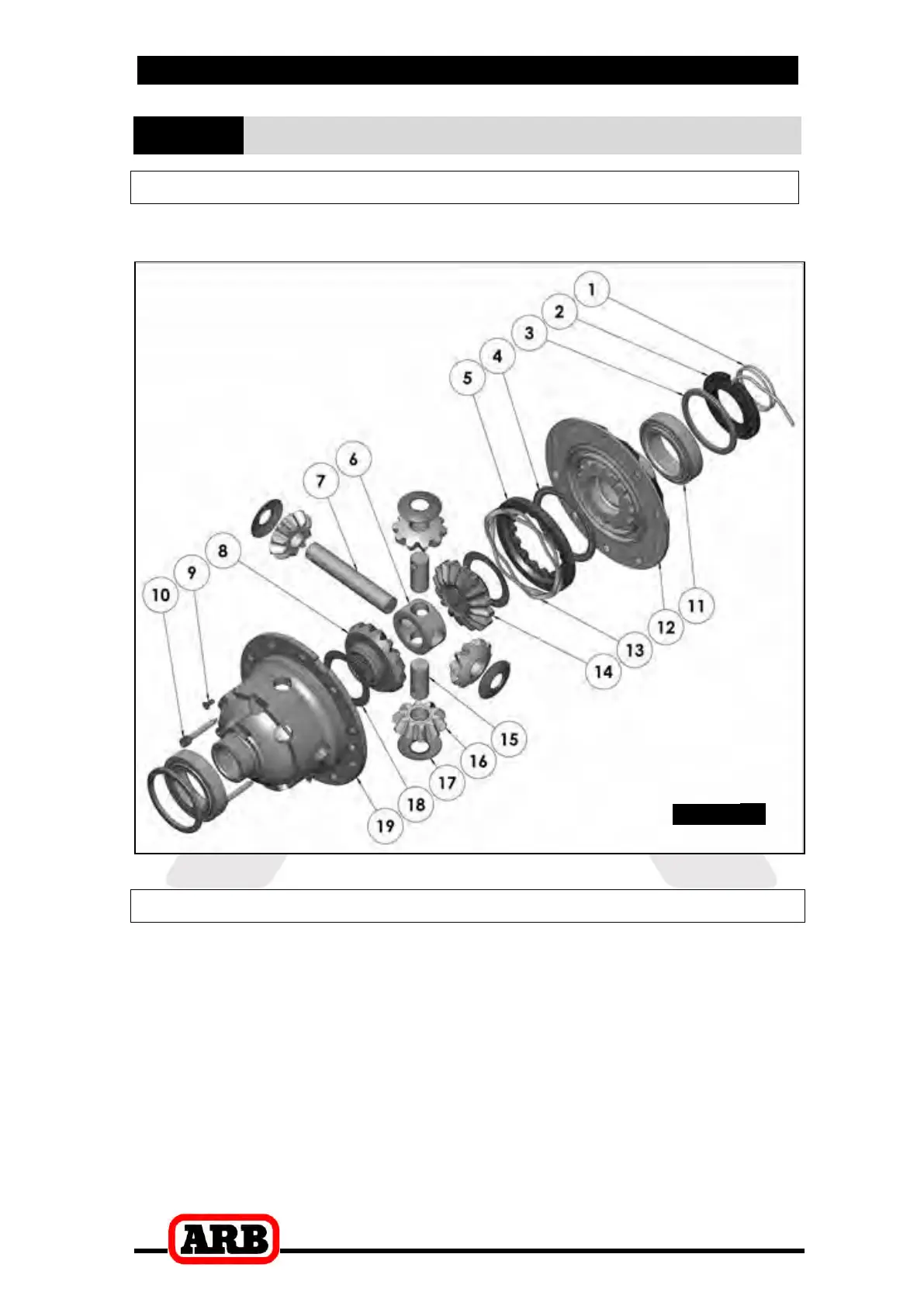

7.1 Exploded Assembly Diagram
(See itemized parts list overleaf)
Figure 25.
7.2 Specifications
RD147
Dana 44,35 SPL,3.73 & DN
Axle Spline
35 tooth, Ø38.1mm [1.50”]
Ratio Supported
3.73:1 & down
Ring Gear ID
141.3mm [5.56”]
Ring Gear OD
216mm [8.5”]
Ring Gear Bolts
10 bolts on Ø168mm [6.61”]
Ring Gear Torque
3/8” Bolts 75Nm [55 ft-lb]
7/16” Bolts 136Nm [100 ft-lb]
1/2” Bolts 176Nm [130 ft-lb]
Backlash
0.15-0.25mm [0.006-0.010”]
Bearing Cap Torque
81Nm [60 ft-lb]
