Note!Inadequately dimensioned electrical installations can lead to serious damage.
The mains lead, and its fuse protection, must be dimensioned in accordance with
the local power supply. The technical data shown on the nameplate shall apply.
3-4 Welding cables instruction
When welding, please pay attention to the followings:
a. The welding cables should be kept as short as possible;
b. If extended cable is used, please do as shown in Fig. 3-4-1.
Wrong
Coil the excess ground cable and welding cable
in same direction respectively.
Correct
Straighten the ground cable and welding cable
and make them close to each other.
Bundle the ground cable and welding cable
together, running the wires close to the ground.
Correct
When the excess cables are only be used by
rolling up, coil the cables to two windings in
reverse direction and overlap them.
The number of turns for A is same as the
number for B.
Handle the welding cable and ground cable
according to above-mentioned method.

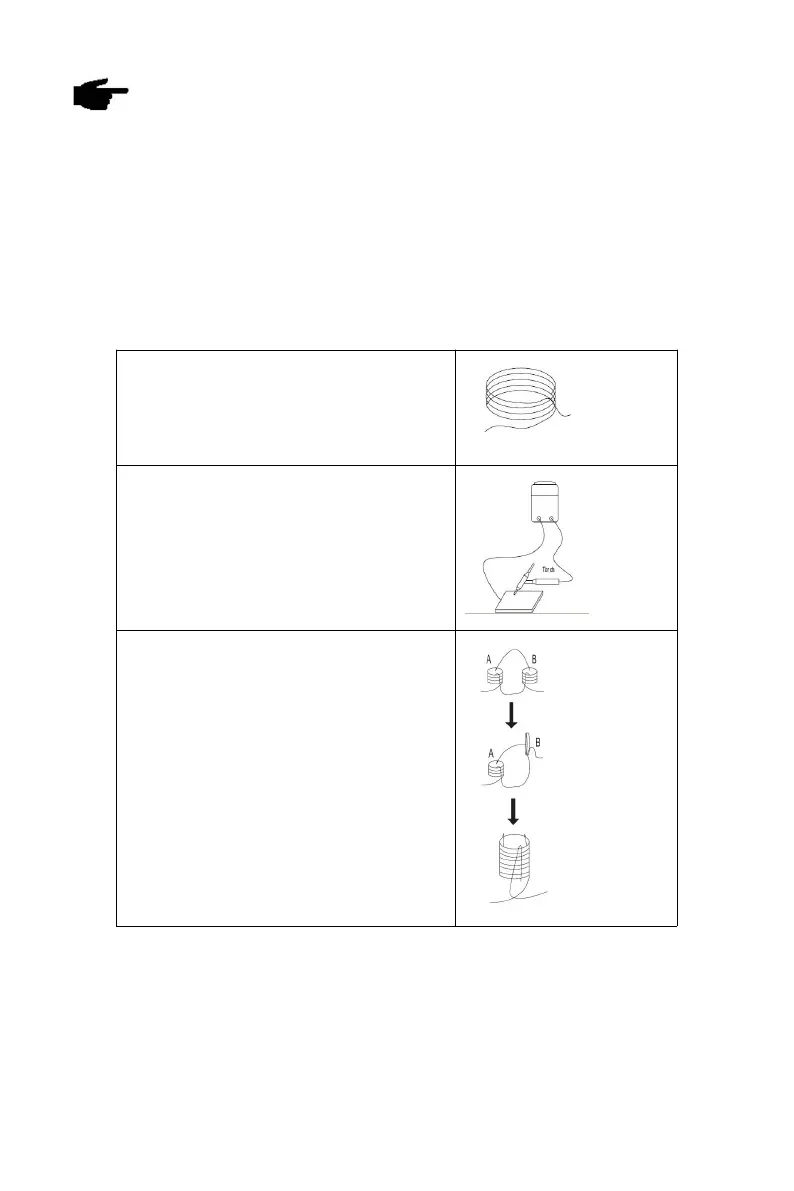

Fig. 3-4-1: Welding cables instruction
