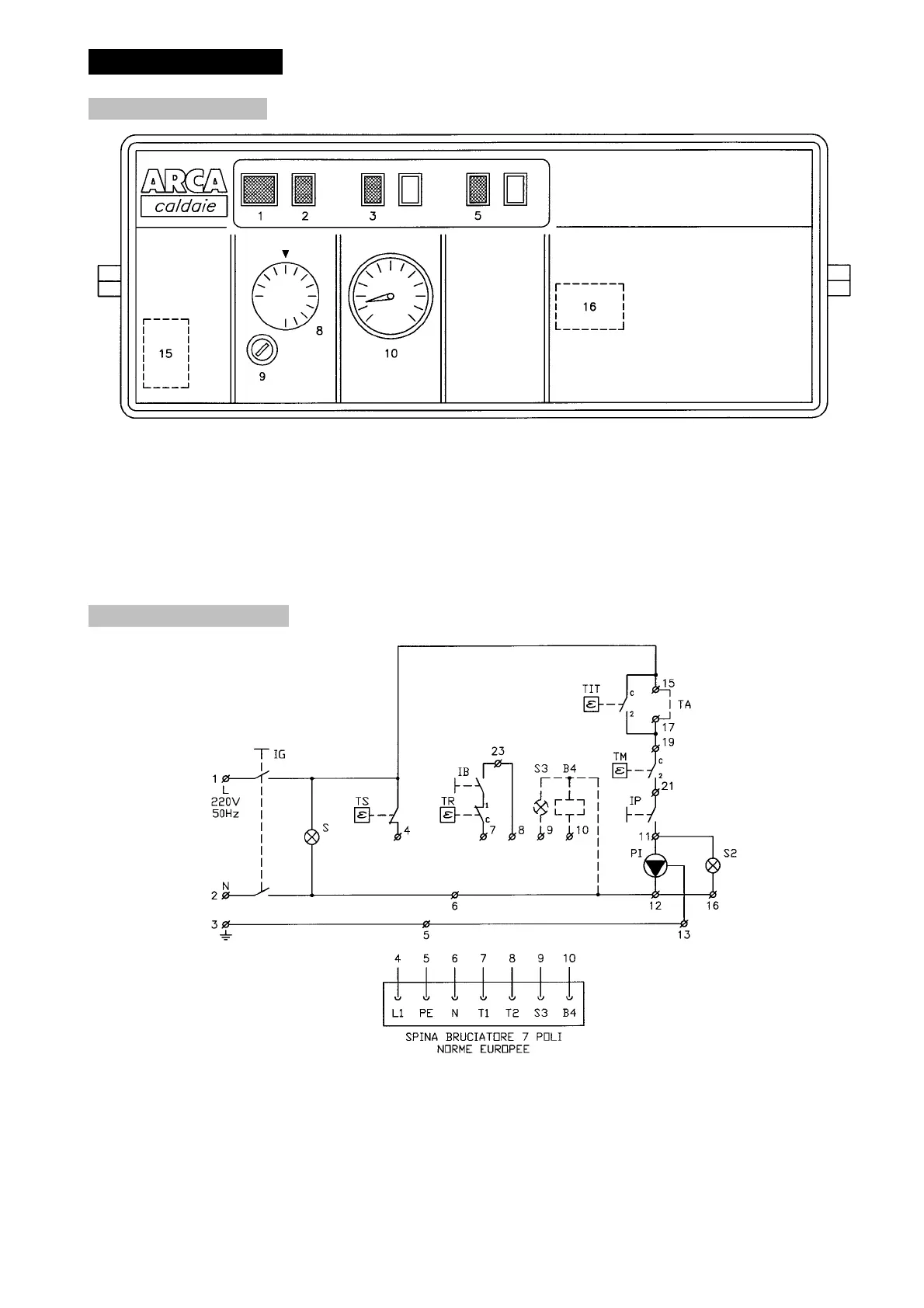

3. SWITCHBOARD
3.1 SWITCHBOARD
1. General switch with green light 9. Manual reset safety thermostat
2. Burner switch 10. Boiler thermometer
3. System pump switch 15. System pump (inside)
5. Running light system pump 16. Anti-inertia thermostat (inside)
8. Boiler adjustment thermostat
3.2 WIRING DIAGRAM
IG General switch TIT Anti-inertia thermostat
IP System pump switch (PI) PI System pump
IB Burner switch S Light in IG included
TS Safety thermostat S2 Running light PI
TR Boiler adjustment thermostat S3 Burner block-out light
TM Min. temperature thermostat B4 Hour meter
TA Room thermostat
