ARCAIR N6000 Automatic System - Section 12: Replacement Parts; N6000 Controller Replacement Parts; N6000 Contactor Replacement Parts

12-46
SET-UP AND SAFE OPERATING PROCEDURES
89210000
SECTION 12:
REPLACEMENT PARTS

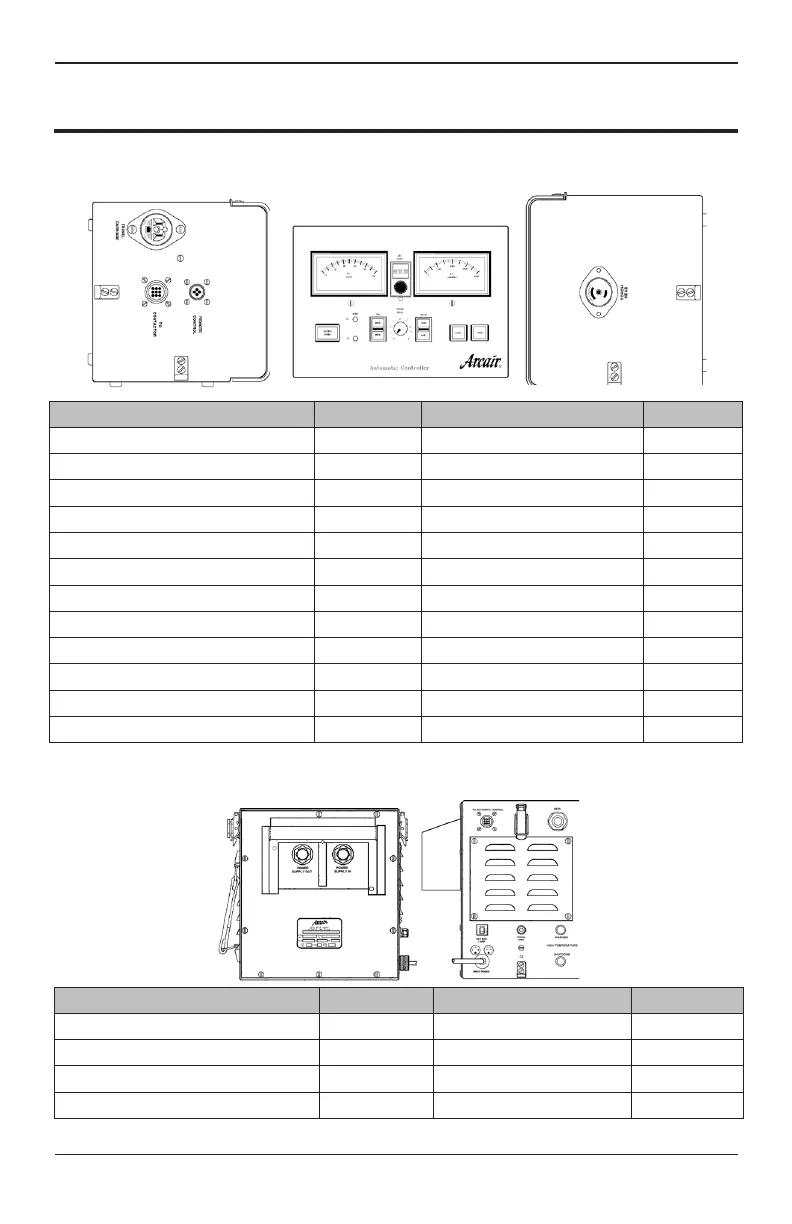

N6000 CONTROLLER REPLACEMENT PARTS
Description Part no. Description Part no.
120 Volt 60 Hz Automatic Controller 72-008-014 “Head Motor Cord” Connector 96-196-002
220 Volt 50 Hz Automatic Controller 72-008-018 Travel Delay Potentiometer 96-645-174
Circuit Board Assembly 96-162-760 Arc Level Potentiometer 96-834-044
“Travel” Connector 96-169-068 Travel Delay Knob 94-465-109
“Remote” Connector 96-169-328 Arc Level Dial 94-225-024
“Interconnect Cable” Connector 96-169-329 “Stop” Switch 96-834-331
Capacitor 96-131-010 “Start” Switch 96-834-332
Resistor 96-696-029 “Travel” Switch 96-834-334
“Electrode Jog” Switch 96-834-333 Volt Meter 96-508-036
“Control Power” Switch 96-834-330 Ampere Meter 96-508-037
Transformer 96-881-084 Plastic Cover Assembly 94-171-270
Front Panel Screws(#1-32 x 3/8” 97-152-072 Jumper Connector Assembly 96-169-352
N6000 CONTACTOR REPLACEMENT PARTS
Description Part no. Description Part no.
120 Volt 60 Hz 1600 Amp Contactor 72-008-019 Air Solenoid Valve 96-921-004
220 Volt 50 Hz 1600 Amp Contactor 72-008-017 Connector 96-169-328
Contactor 96-171-009 Circuit Breaker 96-110-006
Fan 96-290-009 Time Delay Relay 96-697-064
Relacement Parts
