Connecting the CD player

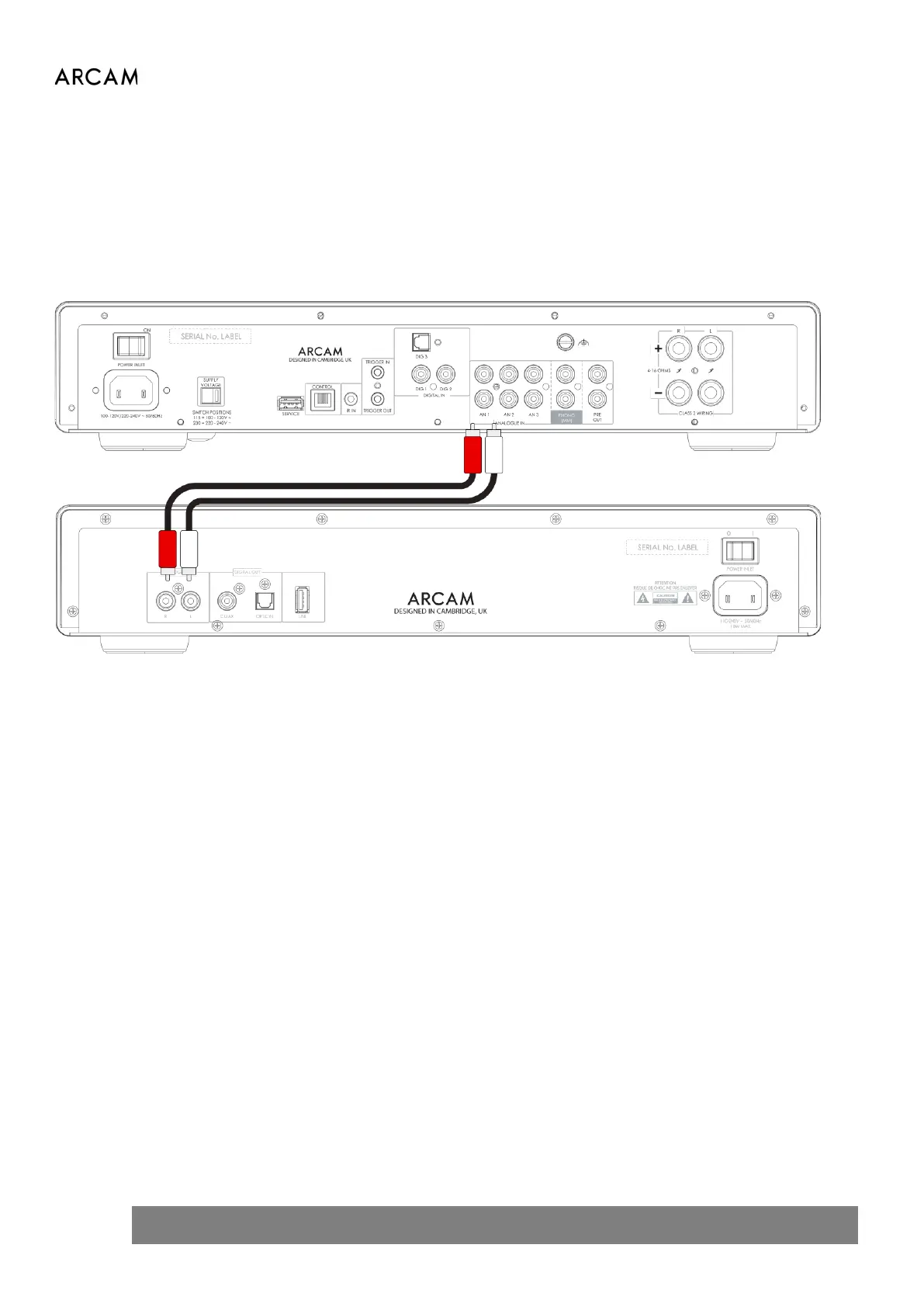

Analog Connection
Step 1, ensure power is disconnected from the CD player and amplifier.
Step 2, using analog interconnect cables, connect the right (R), red terminal of the analog output on the CD player
to the right (R), usually red terminal of the CD input on your amplifier.
Step 3, connect the left (L), white terminal of the analog output on the CD player to the left (L), usually white
terminal of the CD input on your amplifier.
Top Tips
 After making connections: switch the amplifier on with no input and reduce the volume to minimum. Select
the CD input, and then slowly increase the volume to a suitable listening level whilst playing a CD. This
technique will avoid loud sounds or product damage in the event of incorrect connection.
 If you are unsure as to how your system should be connected, please contact your ARCAM dealer who will
be happy to help you.

Arcam CD5 Specifications

General

Type	CD Player
Output Level	2.2V RMS
Power Consumption	15W
Total Harmonic Distortion	0.002%
Digital Outputs	Coaxial, Optical
Signal to Noise Ratio	110dB (A-weighted)
Outputs	Stereo RCA
