Arcam FMJ A18 User Manual

E-6
A18
connections
Note
Please read the ‘Placing the unit’, ‘Power’ and
‘Interconnect cables’ sections on page 5 before

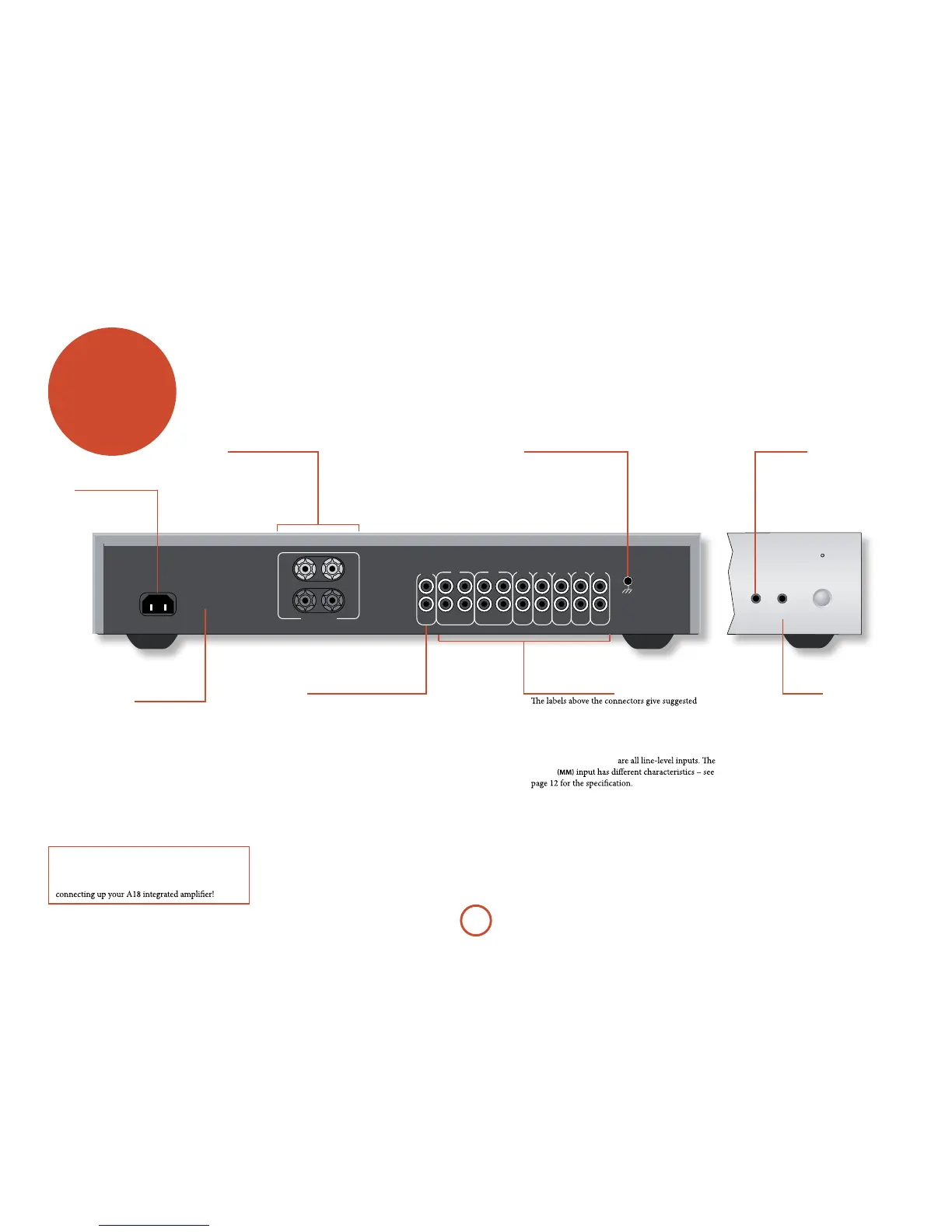

Audio connections
audio inputs, although any suitable device may be
connected to the line-level inputs. (Note, however,
that the name of the input shown on the front-panel
display cannot be changed.)
DVD, SAT, TUNER and CD
PHONO
In addition to the line level inputs, the AV and PVR
connectors both have line level outputs for use in
recording from other sources.
See page 7 for more information.
Pre-amplier connection
Mains voltage
is socket is only used if you are using
the A18 as a pre-amp, for example, when
using the A18 in conjunction with a P38.
See page 8 for more information.
Speaker terminals
See page 8 for information on
connecting loudspeakers.
Power inlet
Connect the correct
mains cable here.
Ensure that the voltage indicated
matches your local power supply.
If not, please contact your dealer.
Phono earth terminal
For connecting your turntable
earth lead, if required. Note that
this terminal must not be used as a
safety earth.
A18 INTEGRATED AMPLIFIER
POWERPHONES
AUX
Aux input
Analogue 3.5mm stereo jack socket,
intended for connecting a portable
MP3 player.
Phones
3.5mm stereo jack socket,
intended for use with a set of
headphones.
4 – 16 OHMS
POWER INLET
R
+
–
+
–
L
L
R
PRE
OUT
DVD SAT
TUNER
CD
PHONO
(MM)
PVR
IN INOUT OUT
AV
CLASS 2 WIRING
~
50 – 60 Hz
350VA MAX
220V-
240V
