54
8. Needle Indicator Display - Displays
which speedometer function (MPH or
km/h) or tachometer function (RPM)
is selected.
NOTE: The speedometer and
tachometer functions may be
switched by pressing the Set/Reset
Button.
9. 4WD Lock Indicator - Displays
LOCK when the front differential
lock has been engaged.
10. Drive Select Indicator - Displays
4WD when selected by the drive
select switch or when the 4WD lock
is engaged. The display is blank when
in 2WD.

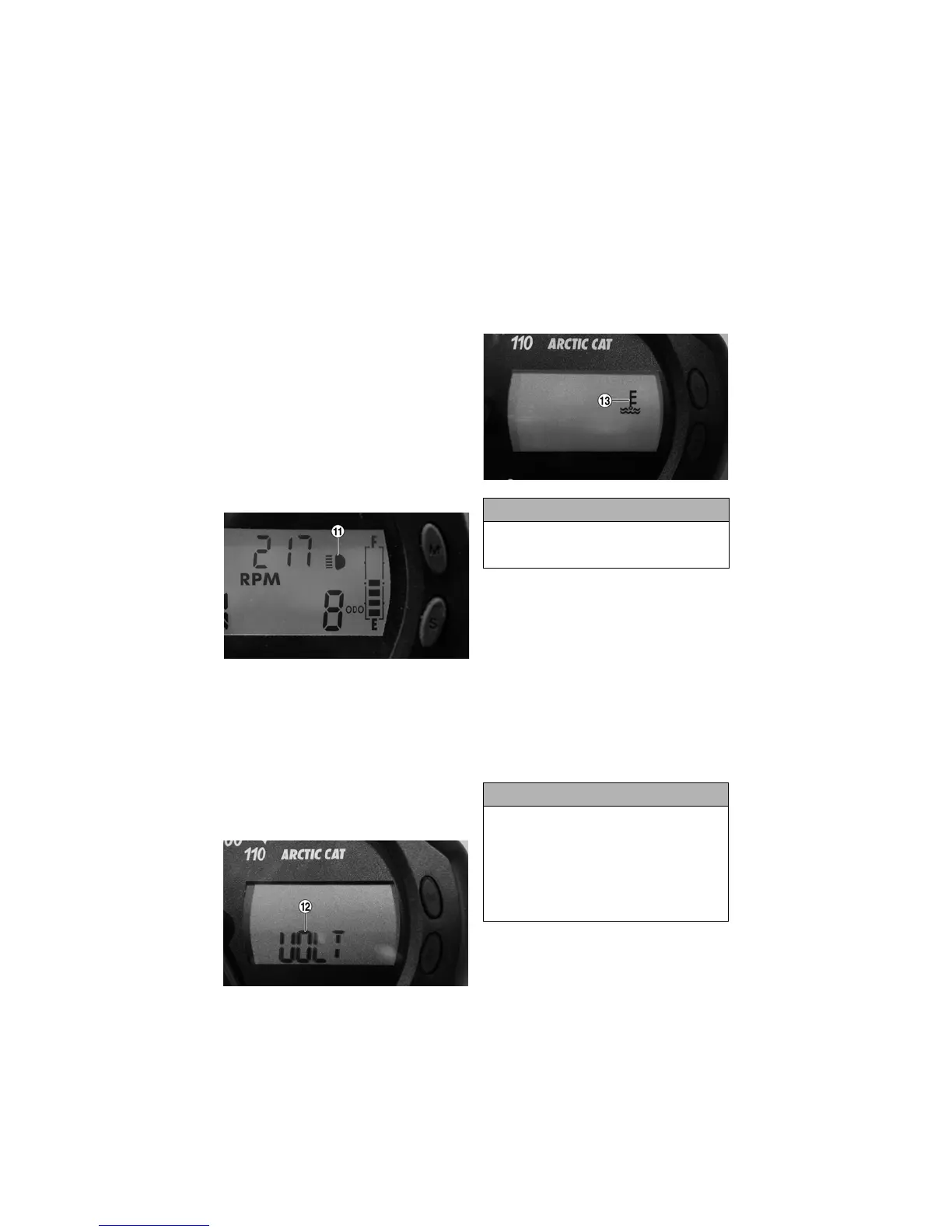

11. High Beam Indicator - The High
Beam icon will appear only when the
headlights are on high beam.
CF101A
12. Battery Condition Indicator - The
speedometer/tachometer needle will
not function and the LCD will go
blank except the word VOLT will
flash on the LCD whenever a low
voltage (< 9 DC volts) or high voltage
(>16 DC volts) is detected. When
voltage returns to normal, the gauge
must be reset by turning the ignition
key to OFF; then back to ON.
CF098A
13. Temperature Indicator - The speedom-
eter/tachometer needle will sweep full
scale and the LCD will go blank except
the high temperature icon will flash.
After 30 seconds, the speedometer/
tachometer needle and LCD will return
to normal, but the temperature icon will
continue to flash. The icon should not
be visible during normal operation.
CF099A
NOTE: High engine RPM, low vehi-
cle speed, or heavy load can raise
engine temperature. Decreasing
engine RPM, reducing load, and
selecting an appropriate transmis-
sion gear can lower the temperature.
NOTE: Debris in front of the
engine (or packed between the cool-
ing fins of the radiator) can reduce
cooling capacity. Using a garden
hose, wash the radiator and the
engine to remove any debris restrict-
ing air flow.
CAUTION
Continued operation with high engine
temperature may result in engine
damage or premature wear.
CAUTION
Arctic Cat does not recommend
using a pressure washer to clean the
radiator core. The pressure may bend
or flatten the fins causing restricted
air flow, and electrical components
on the radiator could be damaged.
Use only a garden hose with spray
nozzle at normal tap pressure.
