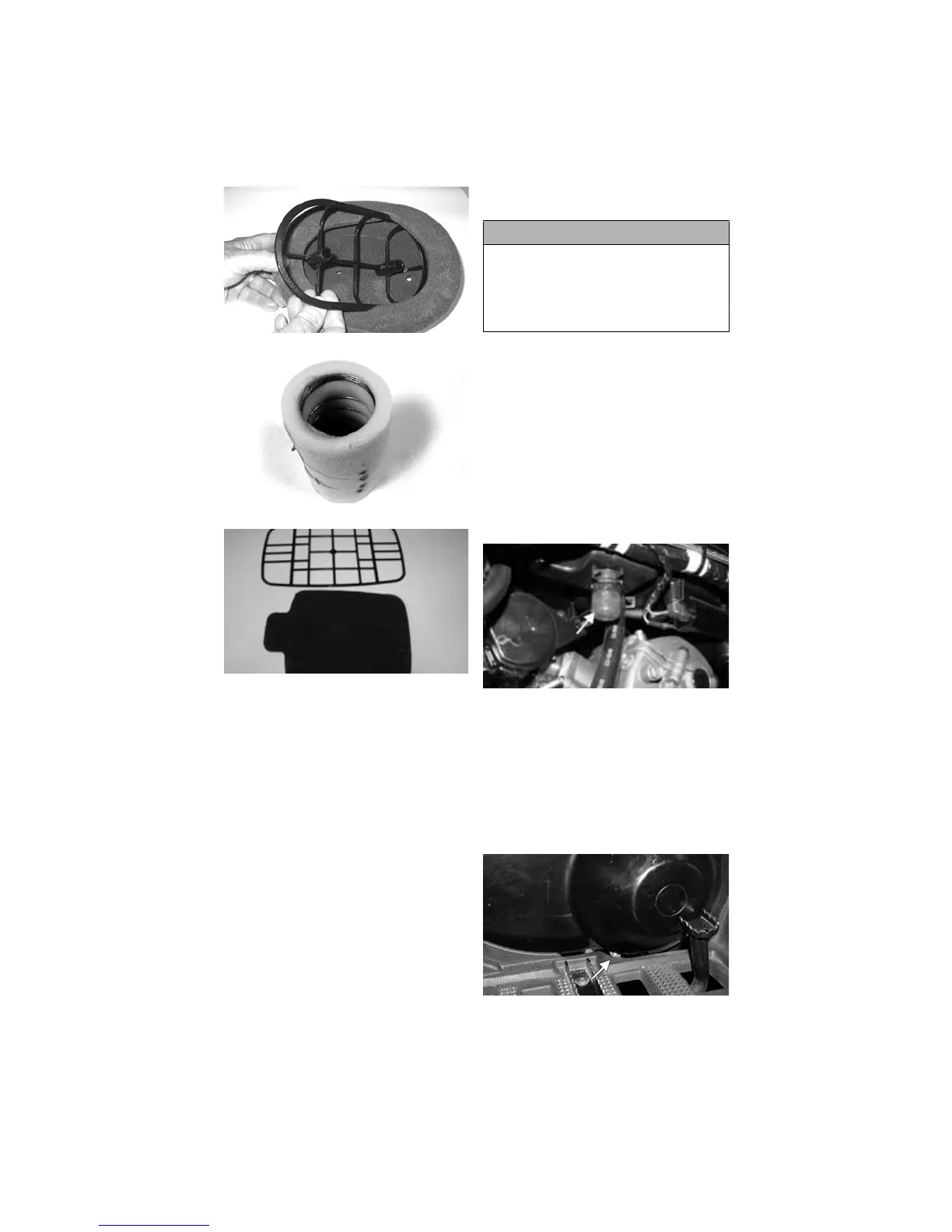

Arctic Cat 500 - Air Filter Housing Drain(S); Draining V-Belt Cover

74
GZ019
FI515
FI705
4. Fill a wash pan larger than the ele-
ment with a non-flammable solvent;
then dip the element in the solvent
and wash it.
 NOTE: Foam Air Filter Cleaner and
Foam Air Filter Oil are available from
Arctic Cat.
5. Squeeze the element by pressing it
between the palms of both hands to
remove excess solvent. Do not twist
or ring the element or it will develop
cracks.
6. Dry the element.
7. Put the element in a plastic bag; then
pour in air filter oil and work the oil
into the element.
8. Squeeze the element to remove
excess oil.
9. Clean any dirt or debris from inside
the air cleaner.
10. Install the air filter/frame assembly
and cover.
11. Install the storage compartment and
cover.
Air Filter Housing
Drain(s)
Inspect the drain(s) beneath the main
housing for debris and for proper sealing.
FI704A
Draining V-Belt Cover
 NOTE: If the ATV has been driven
through water, the V-belt cover must
be drained of any water.
1. Place the ATV on a level surface.
2. Remove the drain bolt from the cover
and allow the water to drain out.
CF110A
H2
500
500/550/700
CAUTION
A torn air filter can cause damage to
the ATV engine. Dirt and dust may get
inside the engine if the element is torn.
Carefully examine the element for tears
before and after cleaning it. Replace
the element with a new one if it is torn.
