Gas/Vent Hoses
Replace the gas hose every two years. Damage from aging may not
always be visible. Do not bend or obstruct the routing of the carburetor
vent hose. Make certain that the vent hose is securely connected to the
carburetor and hose holder and the opposite end is always open.

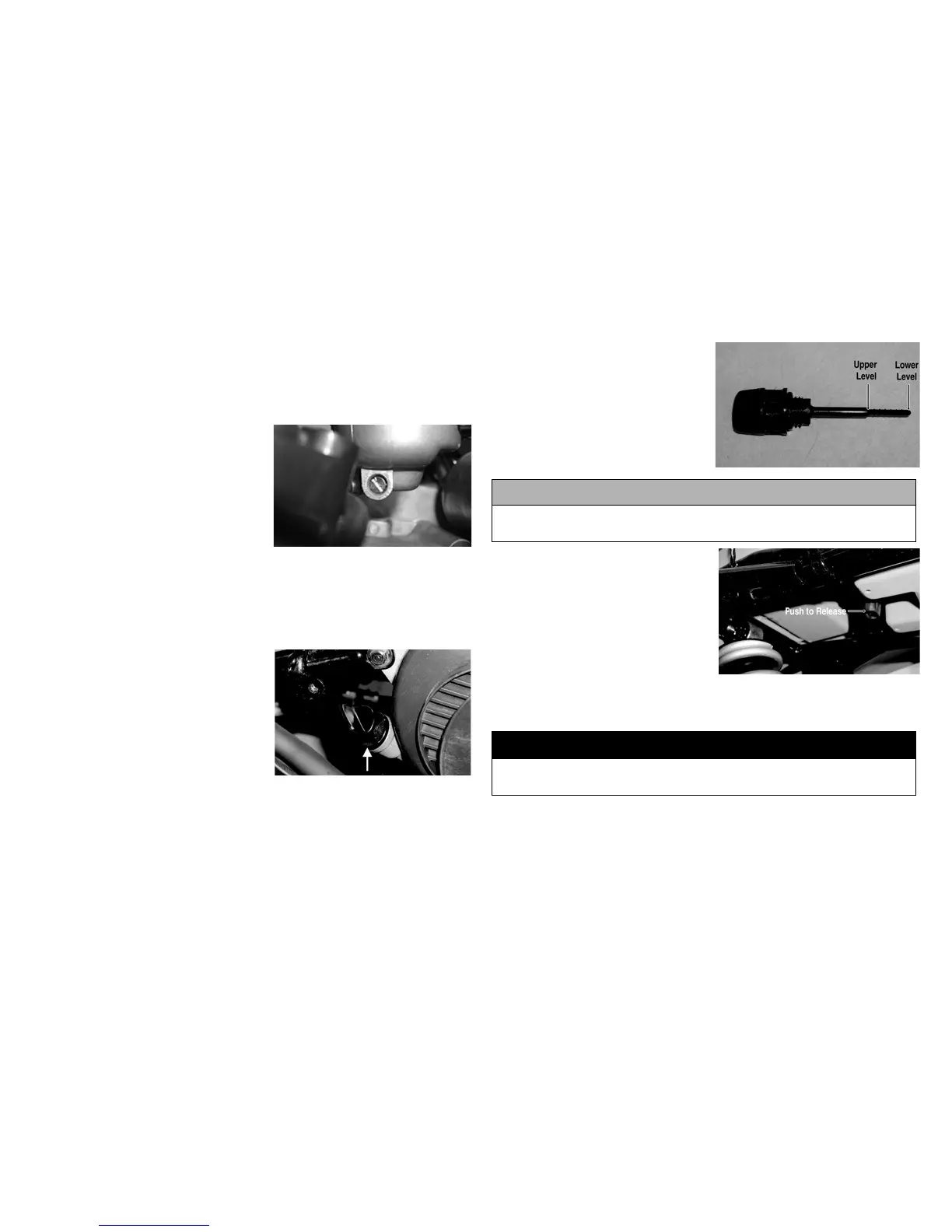

Carburetor Float
Bowl Drain
Periodically, the float bowl should be
drained to remove condensation. To
drain the float bowl, use the following
procedure.
1. Place a suitable container
beneath the float bowl drain
hose.
2. Loosen the drain screw and allow the gasoline and condensation to
flow out.
3. Tighten the drain screw securely.
Oil Level Stick
There is an oil level stick for checking
the engine oil level. To check the oil
level, use the following procedure.
NOTE: The ATV should be on
level ground when checking the
engine oil level.
1. Unscrew the oil level stick and
wipe it with a clean cloth.
2. Install the oil level stick com-
pletely into the engine crankcase.
NOTE: The oil level stick
should be threaded into the
engine crankcase for check-
ing purposes.
3. Remove the oil level stick; the
engine oil level should be
between the lower level and
upper level on the stick.
Seat Lock
1. To remove the seat, push the
seat lock lever rearward
(located at the rear of the ATV
under the seat). Raise the rear
end of the seat and slide it rear-
ward.
2. To lock the seat into position,
slide the front of the seat into
the seat retainers and push down firmly on back of seat. The seat
should automatically lock into position.
Safety Flag/Bracket
A bracket is provided for mounting a flag at the rear of the ATV. The
flag should be displayed to make the ATV more visible.
