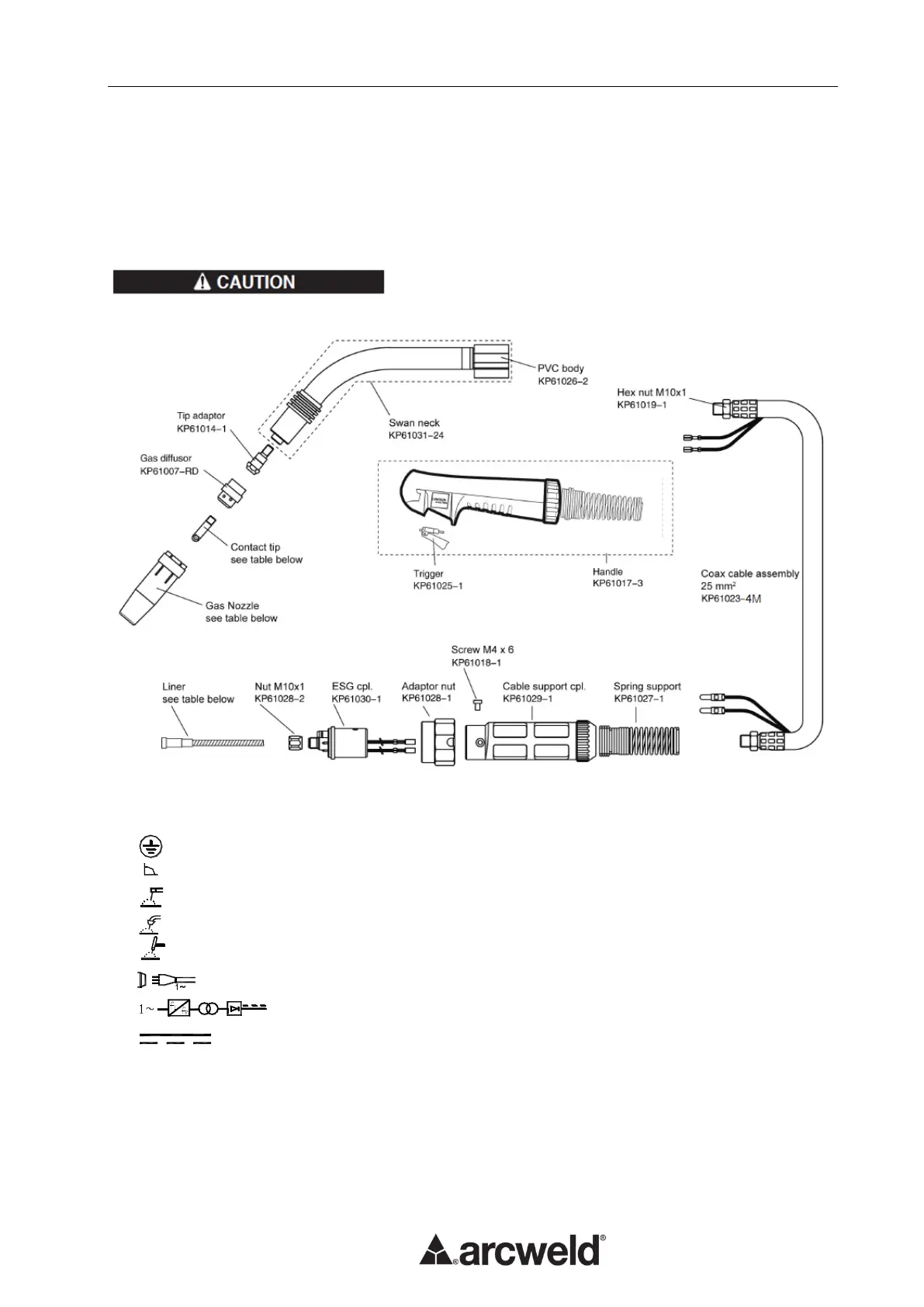

LG240G MIG Torch (Gun) Illustration
The LG240G MIG torch is composed of the Euro connector, connecting cable and handle.
There is a gooseneck installed in the handle of the torch. The gas diffuser distributes shielding gas in
the nozzle to provide even gas shielding for the welding arc. A switch on the handle controls the
welding output.
* Turn off the power before assemble/disassemble or replacement of the torch components.
* The cable, nozzle and tip need to be replaced as required.
Graphics and their meanings
Earth / Ground
Descending
MMAW (Stick) welder
GMAW (MIG) welder
GTAW (TIG) welder
1 Single phase AC power source
Single phase inverter---transformer---rectifier
DC current
＋: “＋” Output connector
－: “－” Output connector
X: Duty Cycle
I1: Rated Input Current
I2: Rated Welding Current
