Arduino® MKR Vidor 4000
9 / 15
Arduino® MKR Vidor 4000
Modified: 22/11/2023
3.2 Block Diagram

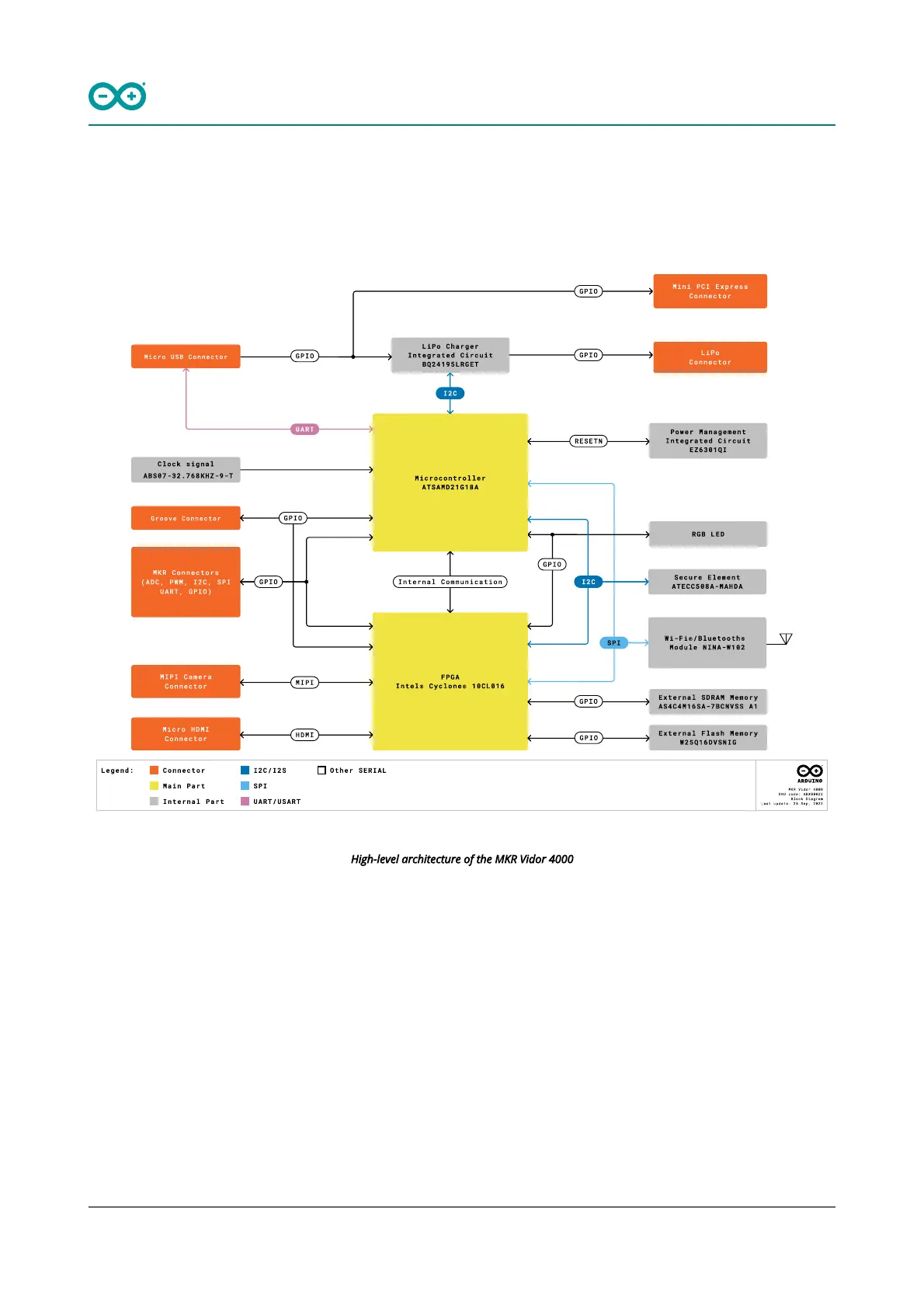

An overview of the MKR Vidor 4000 high-level architecture is showed in the next figure:
