Arduino® Nano 33 IoT

7 / 18 Arduino® Nano 33 IoT / Rev. 01 - 06/12/2021

3 Functional Overview

3.1 Board topology

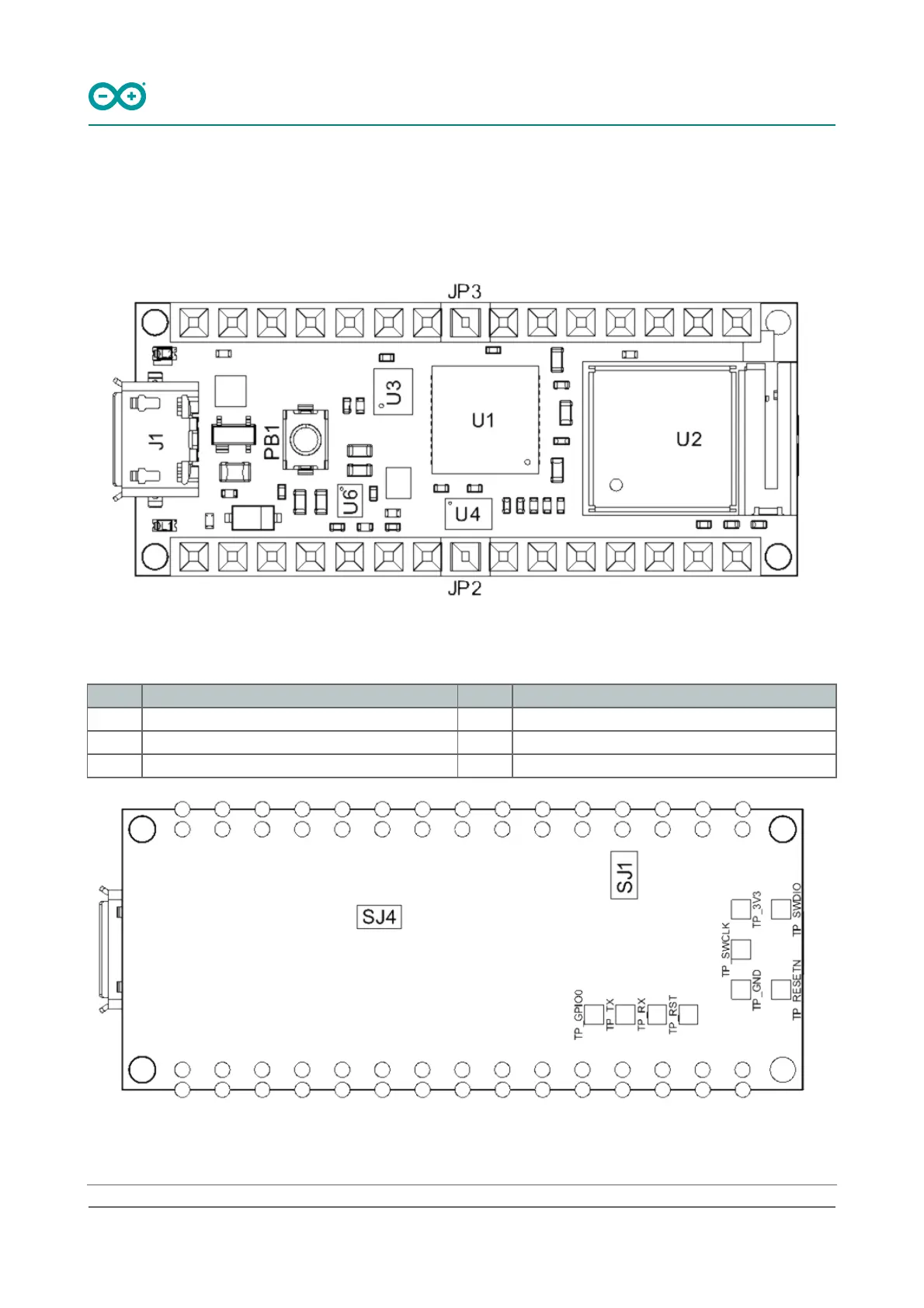

Board topology top

Ref. Description Ref. Description

U1 ATSAMD21G18A Controller U3 LSM6DSOXTR IMU Sensor

U2 NINA-W102-00B WiFi/BLE Module U4 ATECC608A-MAHDA-T Crypto Chip

J1 Micro USB Connector PB1 IT-1185-160G-GTR Push button

Board topology bottom

Questions and Answers:

Need help?

Do you have a question about the Arduino Nano 33 IoT and is the answer not in the manual?

General

Operating Voltage	3.3V
Input Voltage (limit)	6-21V
Digital I/O Pins	14
Analog Output Pins	1 (DAC)
DC Current per I/O Pin	7 mA
Flash Memory	256 KB
SRAM	32 KB
Clock Speed	48 MHz
LED_BUILTIN	13
Length	45 mm
Width	18 mm
Weight	5 g
UART	1
SPI	1
I2C	1
Microcontroller	SAMD21 Cortex®-M0+ 32bit low power ARM MCU
PWM Pins	11
Analog Input Pins	8
Wi-Fi	Yes (802.11 b/g/n)
Bluetooth	Yes (Bluetooth 4.2)
IMU	LSM6DS3
