Arduino®NanoRP2040Connect
Arduino®NanoRP2040Connect/Rev.01-03/05/202113/20
14RGBLED
TheRGBLED(DL3)isacommonanodeLEDthatisconnectedtotheNinaW102module.
TheLEDareoffwhenthedigitalstateisHIGHandonwhenthedigitalstateisLOW.

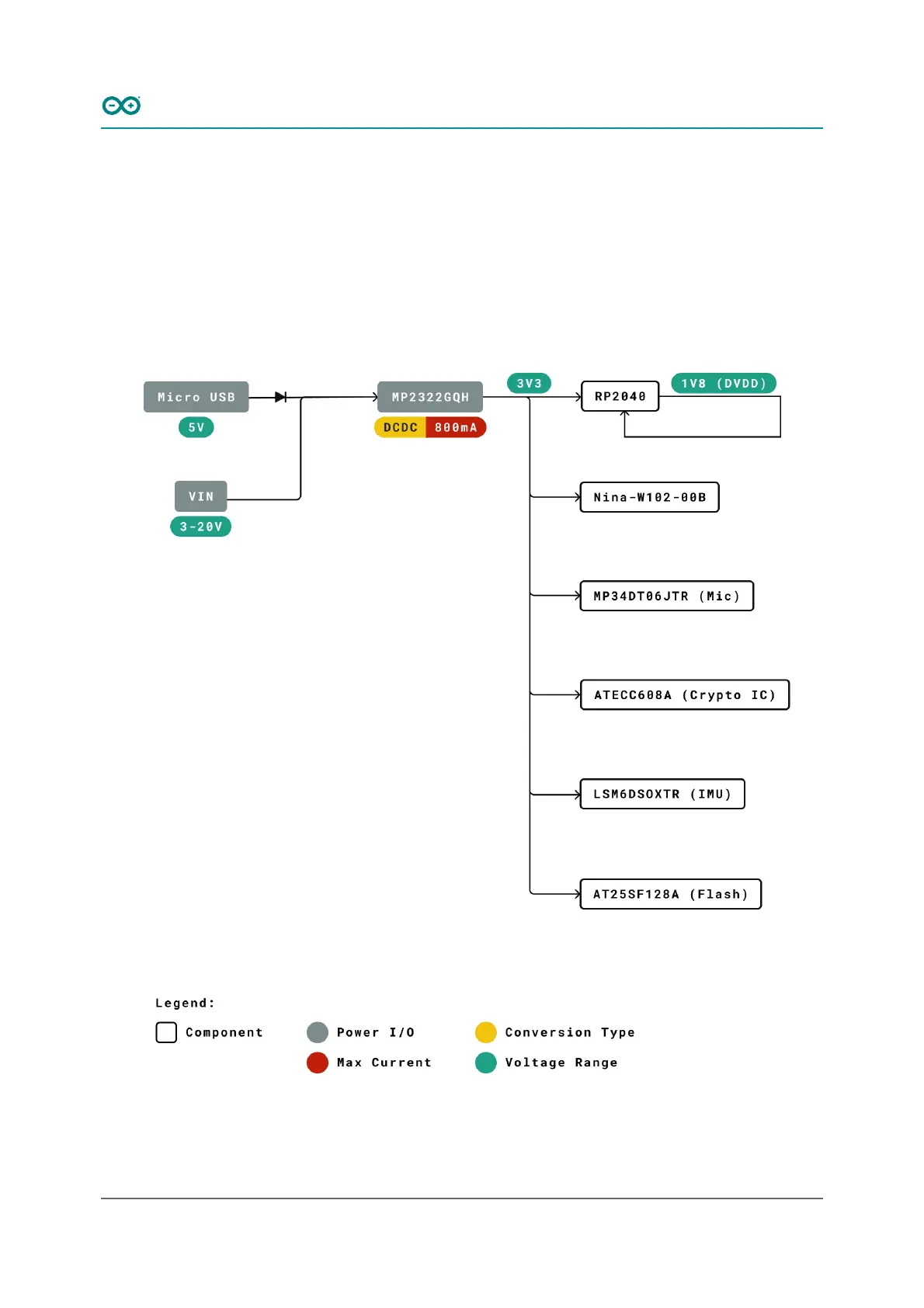

15PowerTree
PowerTreeofArduinoNanoRP2040ConnectTopology
TheArduinoNanoRP2040ConnectcanbepoweredbyeithertheMicroUSBport(J1)or
alternativelyviaVINonJP2.Anonboardbuckconverterprovides3V3totheRP2040
