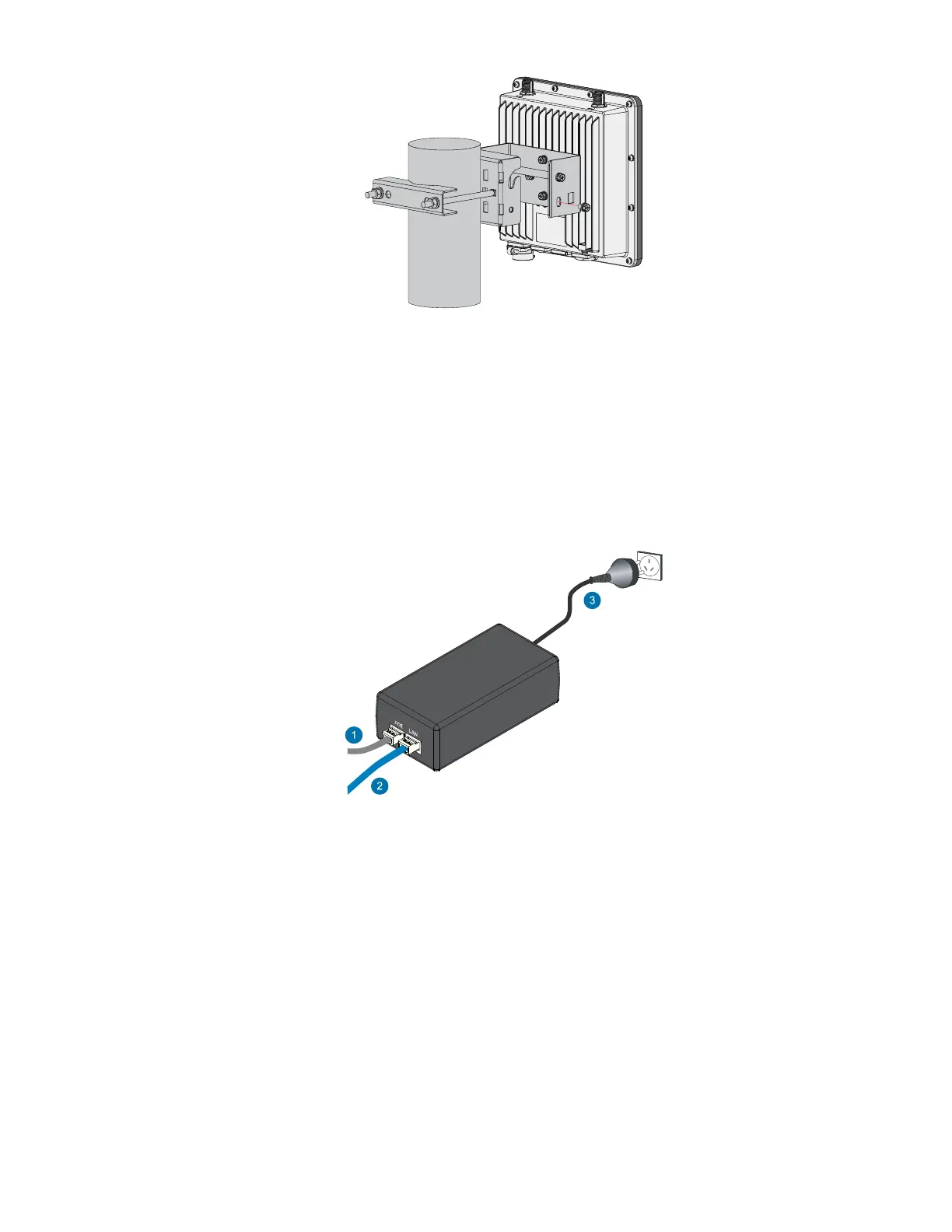

Step 3: Hang up the device and fasten it with two M6*12 Screws.
7 Connecting Power over Ethernet
Step 1: Connect the other end of the Ethernet cable from the enclosure to the Ethernet port labeled POE on the
adapter.
Step 2: Connect an Ethernet cable from your LAN to the Ethernet port labeled LAN on the adapter.
Step 3: Connect the Power Cord to the power port on the adapter. Connect the other end of the Power Cord to
a power outlet.
8 Weather protection
Tape sealed antenna and cable connections:
Step 1: to better protect the Ethernet cable gland and the antenna connector from the weather, you need to
cover them with PVC tape.
Clean the surface area of the connector that will be wrapped. Wrap a layer of PVC tape with a 50% overlap
according to the rotation direction of the connector. Continue wrapping the PVC tape to about 10 mm
below the end of the connector.
