Installation
5
60mm 70mm
2
3
/
4
“
2
3
/
8
“

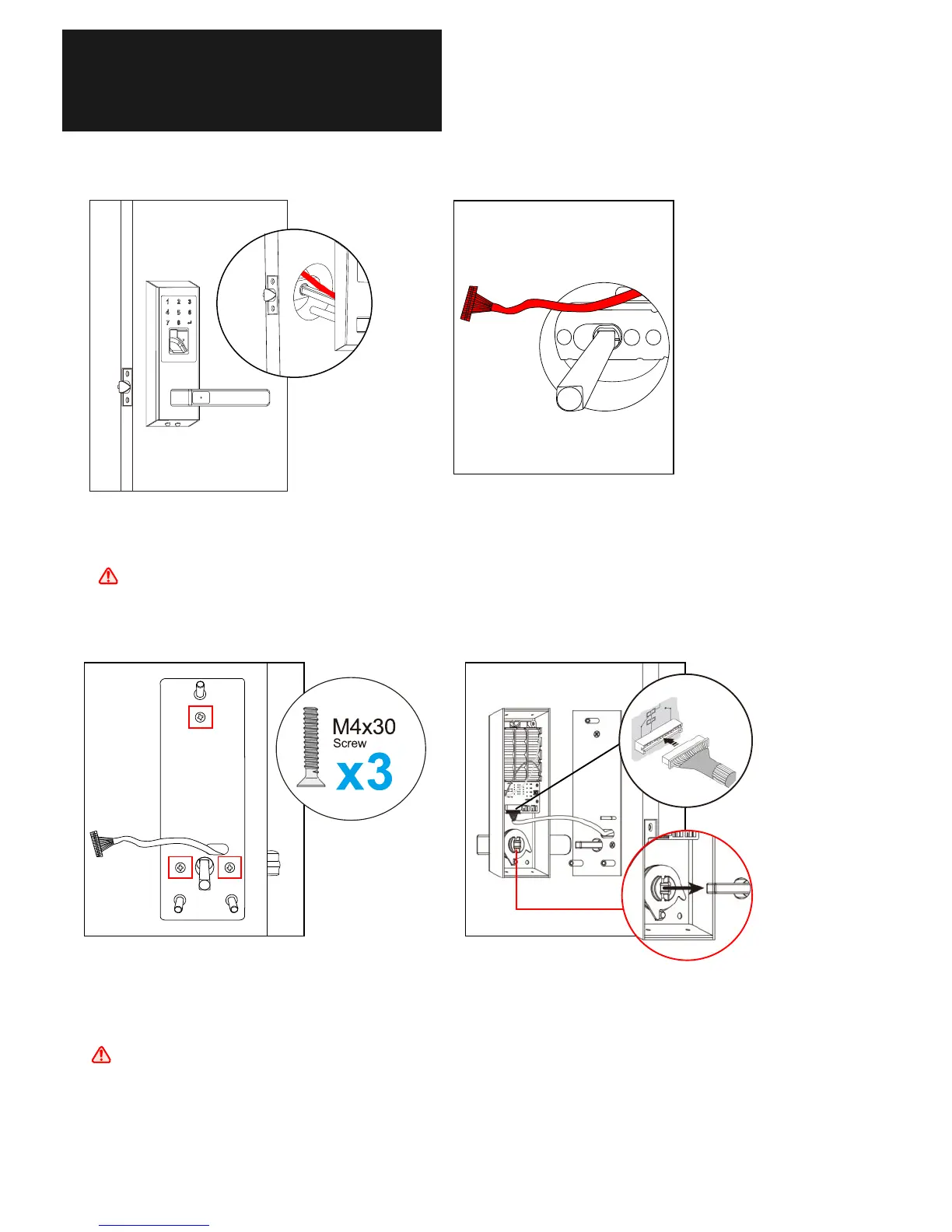

7. Install the base mounting
plate on the door, and fasten
with screws (M4x30)
The cable goes out from
the hold marked on the
picture.
6. Install the front panel on the door.
The cable goes on the top of the latch.
8. Connect the cable to the inside
panel, and the spindle goes into
the hole in the inside handle.
To Next Page
