Installation
Nine times out of ten, an error is the result of an improper installation
and/or wiring by the user. If you're not feeling particularly tech savvy,
let a professional put it in.
4

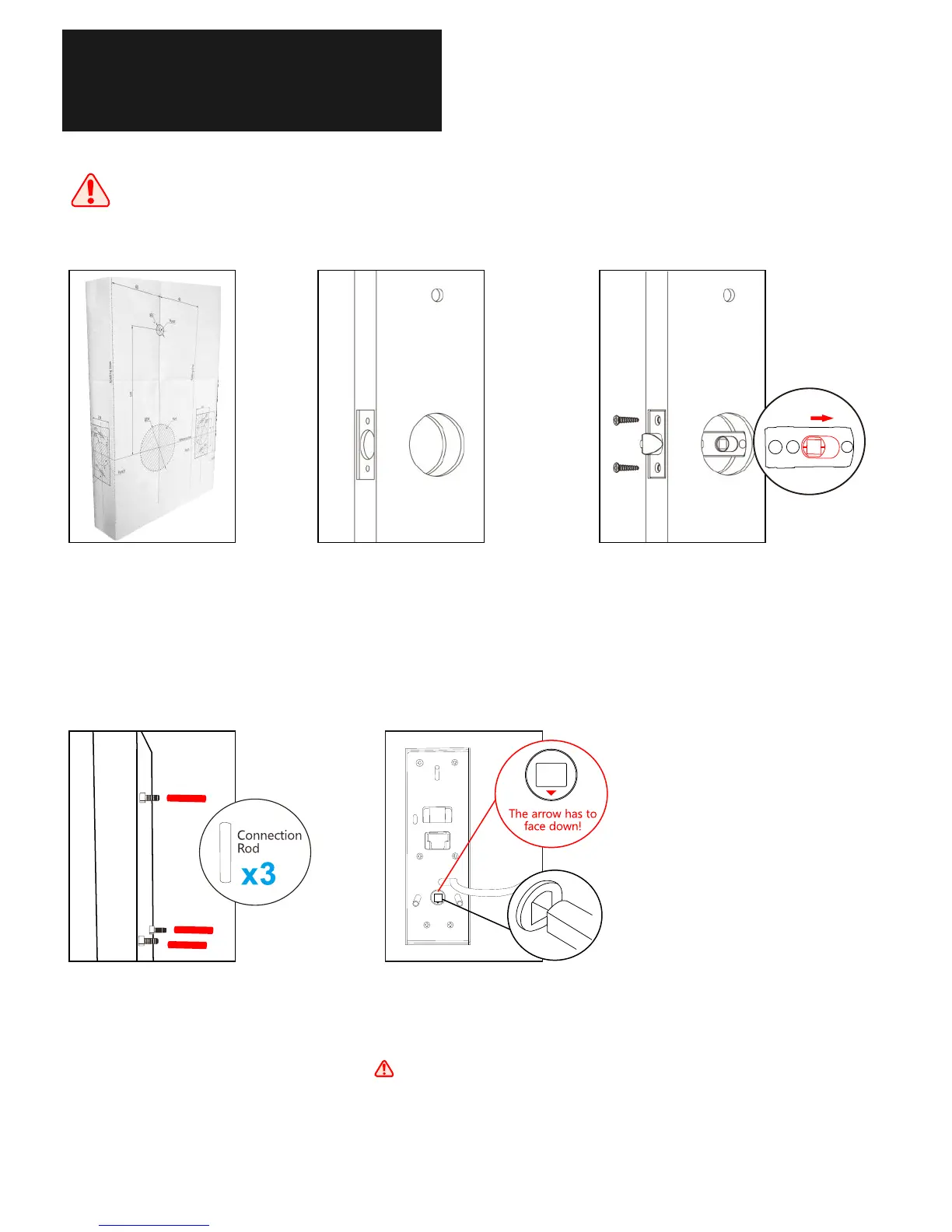

1. Place the template
on the door to make
the holes, and then drill
holes for installation.
2. Determine the backset for
your door.
3. Install the latch, and
fasten with screws, if a
70mm backset is required,
move the hole to the
right side.
4. Install the connection
rods on the front panel.
5. Insert the spindle into
the hole on the front panel.
There is an arrow symbol
on the hole, make sure the
arrow is facing down.
60mm 70mm
2
3
/
4
“
2
3
/
8
“
To Next Page
