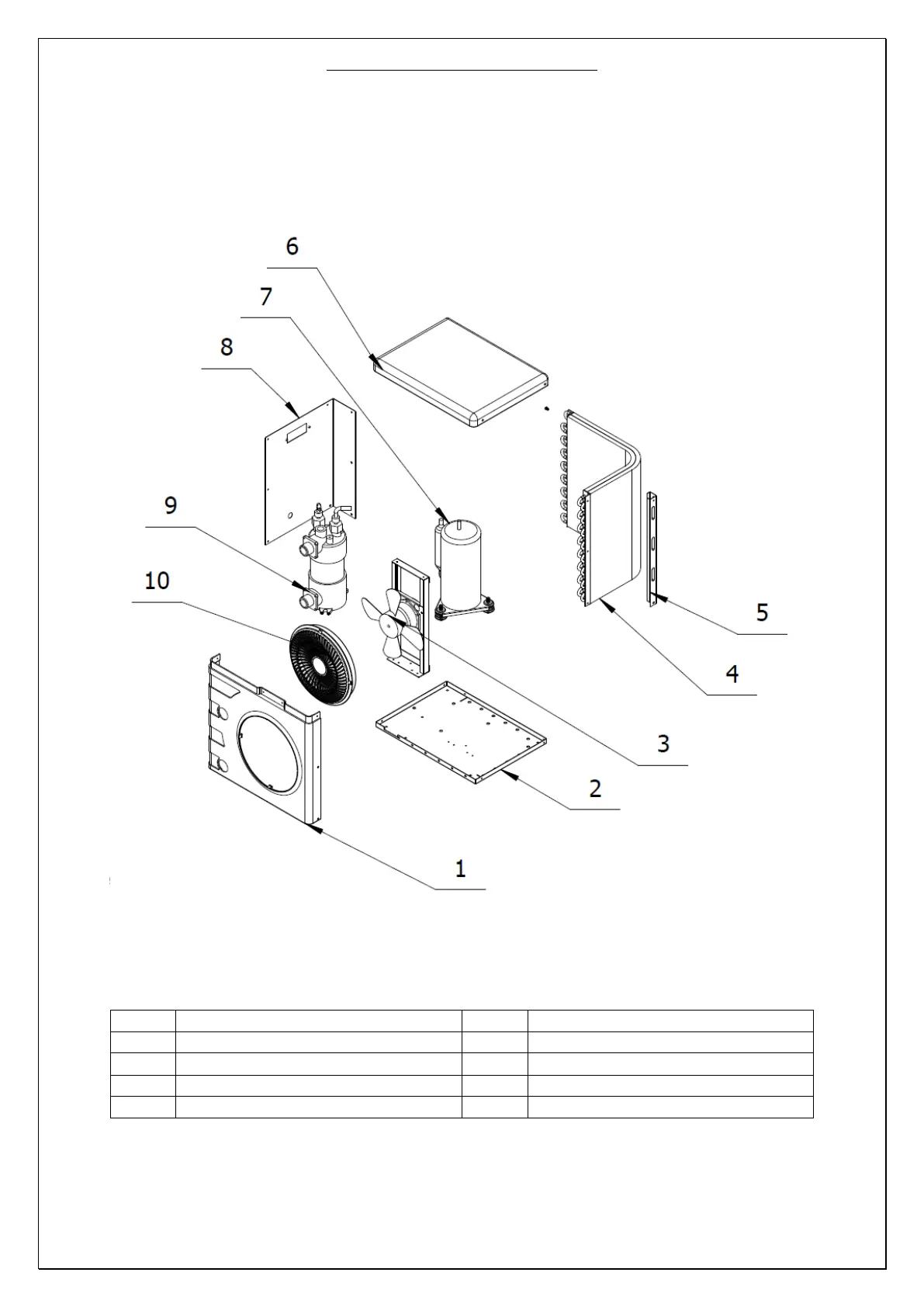

10 Exploded Diagram
Exploded Diagram
Model: AR-HE-WP
11 Maintenance
1
Front panel
2
Base panel
3
Fan & motor
4
Evaporator
5
Right bracket
6
Top panel
7
Compressor
8
Left panel
9
Titanium heat exchanger
10
Fan cover
