• Humidity: 45-85%, non-condensing
Electrical
• Input Voltage
+3.6VDC
• On Board Battery Capacity
1000mAH (1*1000mAH)
Installation

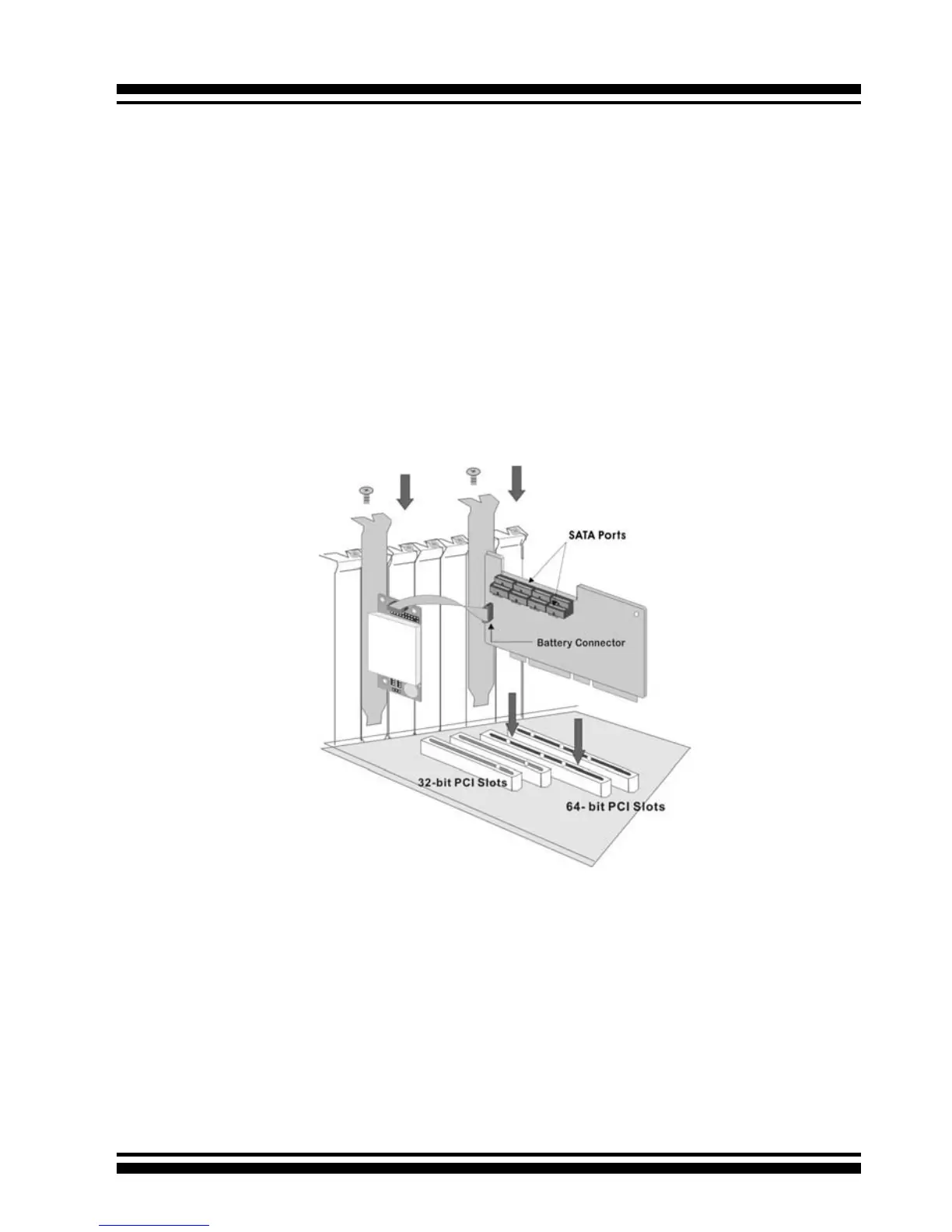

1. Make sure all power to the system is disconnected.
2. Connector J1 is available for the optional battery backup
module. Connect the BBM cable to the 12-pin battery connector
on the controller.
3. Integrators may provide pre-drilled holes in their cabinet for
securing the BBM using its three mounting positions.
Battery Backup Capacity
Battery backup capacity is dened as the maximum duration
of a power failure for which data in the cache memory can be
maintained by the battery. The BBM’s backup capacity varied
with the memory chips that installed on the SATA RAID control-
ler.
