INSTRUCTIONS FOR INSTALLATION AND MAINTENANCE
安装和维护说明手册
D0578-02-ZH
56/100
AREVA T&D S.p.A. – Via Meucci, 22 30020 Noventa di Piave (VE) ITALY – Tel. : 39 0421 309511 – Fax : 39 0421 65254
Subsidiary of AREVA T&D Italy SpA (AREVA group) with registered office in Via Meucci, 22 30020 Noventa di Piave (VE) - ITALY, under Art. 2359 of the Italian Civil Code.

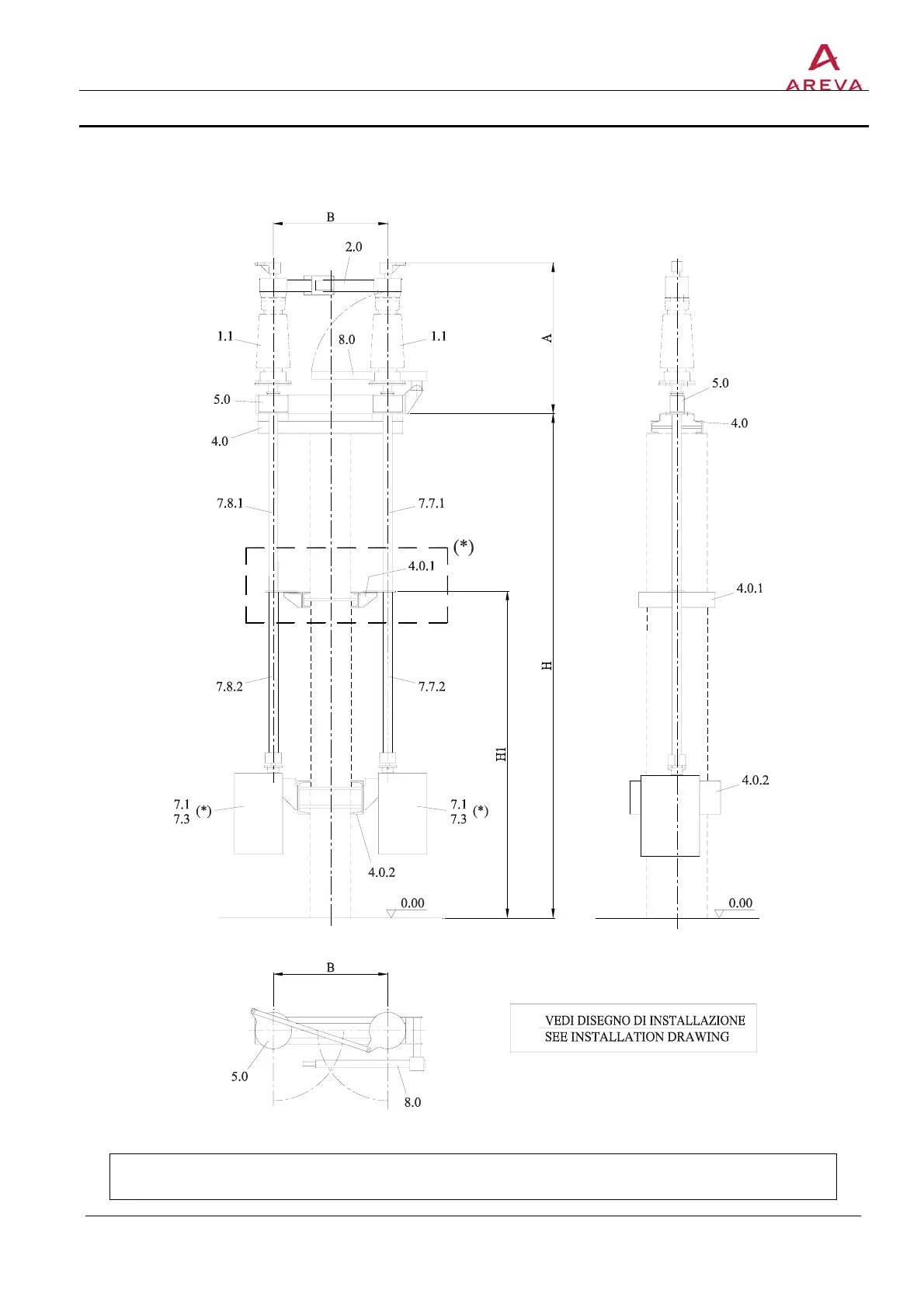

FIG. 1B: ASSEMBLY OF THE SINGLE-POLE S2DAT DISCONNECTOR WITH
EARTHING SWITCH ON THE SIDE OF THE FEMALE CONTACT
图 1B: 在雌触头侧面有接地开关的单极 S2DAT 隔离开关的组件
(*)
SEE INSTALLATION DRAWING=见安装图
NOTE: Concerning the dimensions A, B, H, H
1
, X, see the specific DIN-… drawing.
注意：关于 A，B，H， H1，X 的尺寸，请见具体的 DIN-…图纸。
