4. ELECTRICAL DATA

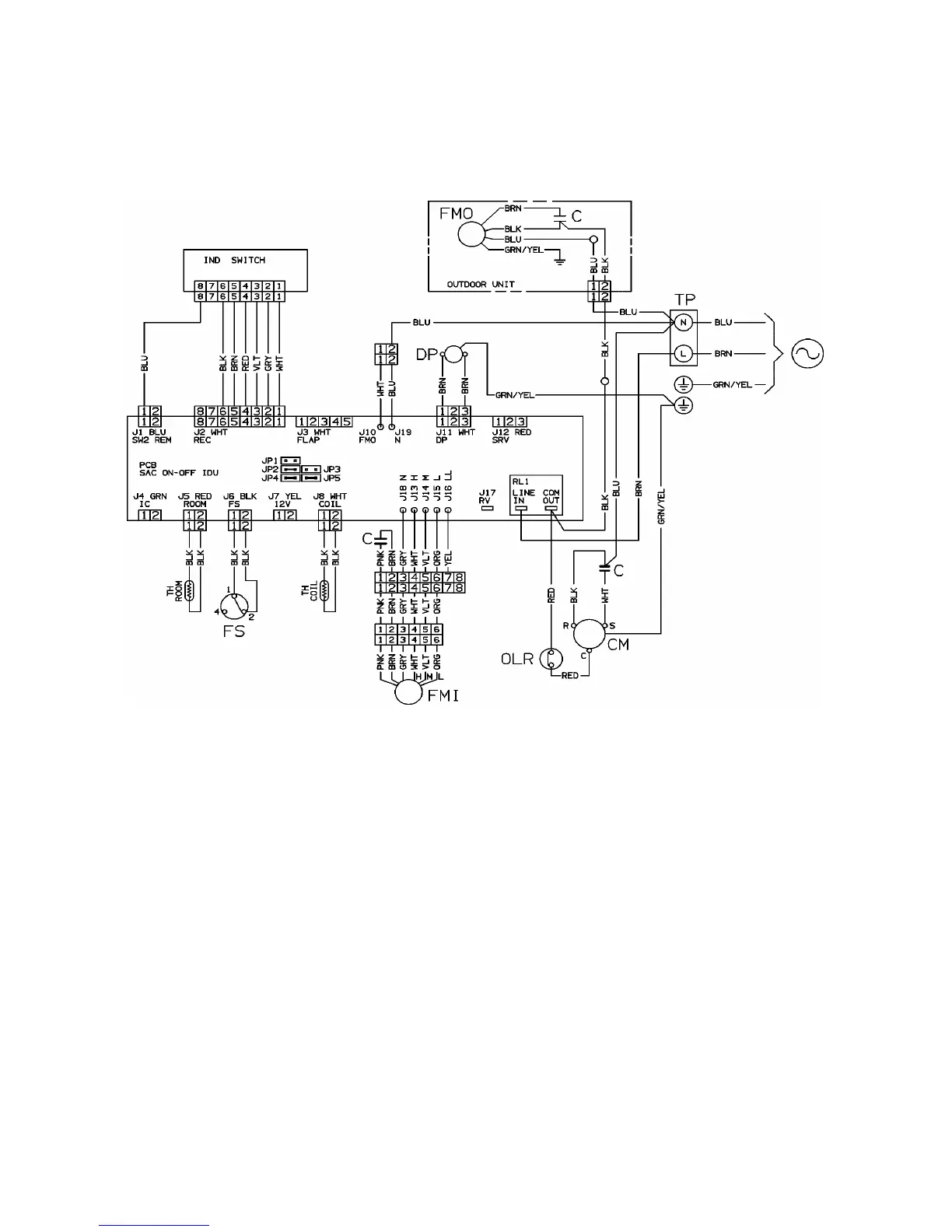

4-1 Electric Wiring Diagram
PCB
Controller
SWITCH
Switch Assy
FMI
Indoor fan motor
IND
Indicator assy
CM
Compressor motor
TH
Thermistor
OLR
Overload relay
TP
Terminal plate
FMO
Outdoor fan motor
FS
Float switch
C
Capacitor
DP
Drain Pump
9
8
10
Table of Contents
Default Chapter
3
Table of Contents
3
1 Specifications
4
Unit Specifications
4
Major Component Specifications
5
Other Component Specifications
6
2 Dimensional Data
7
Unit Dimensions
7
3 Refrigerant Flow Data
8
Refrigerant Flow Diagram
8
4 Electrical Data
9
Electric Wiring Diagram
9
5 Performance Data
10
Performance Chart
10
6 Functions
11
Cool Mode Operation
11
Dry Mode Operation
12
Fan Mode Operation
12
Auto Fan Speed
12
Forced Mode
13
Protection Operation in Cool and Dry Mode
13
I FEEL Function
14
NIGHT Function
14
Drain Pump
14
7 Diagnostic
15
8 Jumpers Configuration
16
9 Maintenance
17
10 Troubleshooting
18
11 Checking Electrical Components
26
